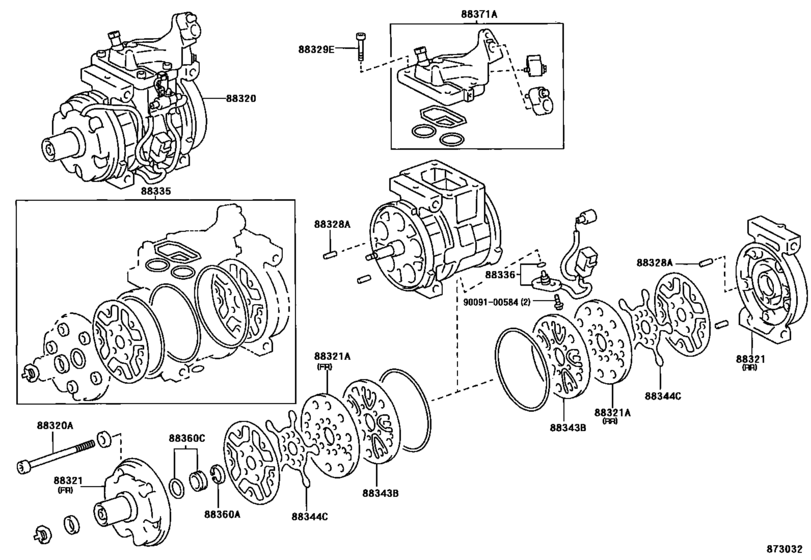

Heating & Air Conditioning - Compressor ([08.1998 - ] (9808- )BLAZIL SPEC (9608-9808) ; (9808- )USA) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-33120
Compressor Assy, Cooler
[08.1996 - 08.1998] MCV20 |
88320-33120 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-33H90 Compressor Assy, Cooler[08.1996 - 08.1998] MCV20 |
88320-33H90 |
US $753.97 |
||
|
88320
|
88320
88320-33140
Compressor Assy, Cooler
[08.1998 -] MCV20 |
88320-33140 |
— | ||
|
88320A
|
88320A
90099-04958
Bolt, Through
[08.1996 - 08.1998] MCV20 |
90099-04958 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[08.1996 - 08.1998] MCV20 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88321-48010
Head, Cooler Compressor Cylinder
[08.1998 -] MCV20 |
88321-48010 |
— | ||
|
88321
|
88321
88322-32050
Head, Cooler Compressor Cylinder
[08.1996 - 08.1998] MCV20 REAR |
88322-32050 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[08.1996 - 08.1998] MCV20 FRONT |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[08.1996 - 08.1998] MCV20 REAR |
88342-22010 |
— | ||
|
88328A
|
88328A
90099-08058
Pin, Cylinder Block
[08.1996 -] MCV20 |
90099-08058 |
— | ||
|
88329E
|
88329E
88329-48010
Bolt, Compressor, No.1
[08.1998 -] MCV20 |
88329-48010 |
— | ||
|
88329E
|
88329E
90099-04924
Bolt, Service Valve
[08.1996 - 08.1998] MCV20 |
90099-04924 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[08.1996 - 08.1998] MCV20 |
88335-2B030 |
from US $36.68 |
||
|
88335
|
88335
88335-48070
Gasket Kit, Overhaul
[08.1998 -] MCV20 |
88335-48070 |
— | ||
|
88336
|
88336
88336-33110
Sensor, Compressor
[08.1996 - 08.1998] MCV20 |
88336-33110 |
— | ||
|
88336
|
88336
88336-33130
Sensor, Compressor
[08.1998 -] MCV20 |
88336-33130 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[08.1996 - 08.1998] MCV20 |
88343-14020 |
— | ||
|
88343B
|
88343B
88343-32020
Reed, Suction Valve
[08.1998 -] MCV20 |
88343-32020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[08.1996 - 08.1998] MCV20 |
88344-22010 |
— | ||
|
88344C
|
88344C
88344-32010
Reed, Discharge Valve
[08.1998 -] MCV20 |
88344-32010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1996 - 08.1998] MCV20 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[08.1996 - 08.1998] MCV20 |
88360-2B020 |
from US $68.84 |
||
|
88360C
|
88360C
88360-32010
Seal Assy, Shaft
[08.1998 -] MCV20 |
88360-32010 |
— | ||
|
88371A
|
88371A
88371-33040
Valve, Suction
[08.1996 - 08.1998] MCV20 |
88371-33040 |
— | ||
|
9009100584
|
9009100584
90091-00584
New Genuine Part
|
90091-00584 |
— | ||
