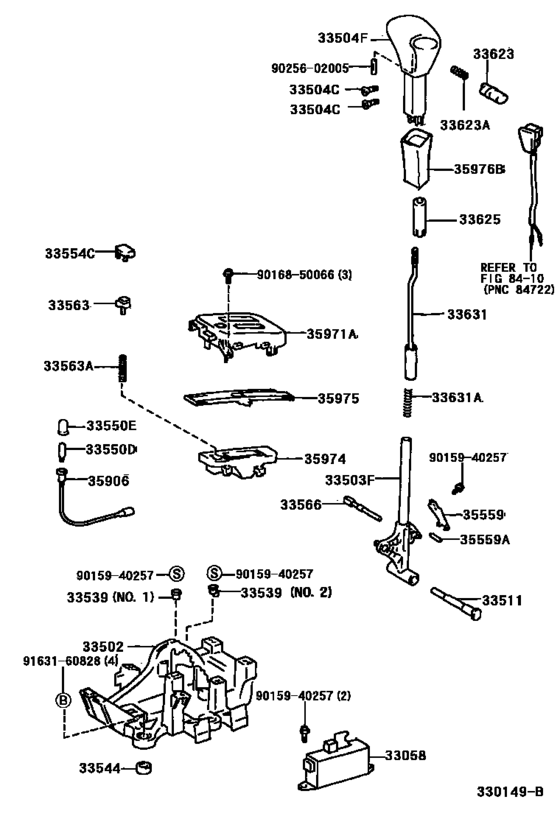

Shift Lever & Retainer ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33560-33010 Bracket Sub-Assy, Shift Lock SolenoidSHIFT LOCK SOLENOID [08.1996 -] MCV20 |
33560-33010 |
US $216.94 |
||
|
33502
|
33502
33521-33030 Plate Sub-Assy, Shift LeverSHIFT LEVER [08.1996 -] MCV20 |
33521-33030 |
US $59.11 |
||
|
33503F
|
33503F
33055-33080 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [08.1996 -] MCV20 |
33055-33080 |
US $37.42 |
||
|
33504C
|
33504C
90159-40238 Screw (For Shift Lever Knob Setting)[08.1996 -] MCV20 |
90159-40238 |
US $0.84 |
||
|
33504F
|
33504F
33542-33080-C0 Knob Sub-Assy, Shift Lever[08.1996 - 07.2001] MCV20 URETHANE,BLACK,TRIM2# |
33542-33080-C0 |
US $72.80 |
||
|
33504F
|
33504F
33542-33080-G0 Knob Sub-Assy, Shift Lever[08.1996 - 07.2001] MCV20 URETHANE,DK.SAGE,TRIM6# |
33542-33080-G0 |
US $72.80 |
||
| replacement | |||||
|
33504F
|
33504F
33542-33080-C0 Knob Sub-Assy, Shift Lever[08.1996 - 07.2001] MCV20 URETHANE,DK.SAGE,TRIM6# |
33542-33080-C0 |
US $72.80 |
||
|
33504F
|
33504F
33542-33090-C0
Knob Sub-Assy, Shift Lever
[08.1996 - 07.2001] MCV20 LEATHER,BLACK,TRIM2# |
33542-33090-C0 |
— | ||
|
33504F
|
33504F
33542-33090-E0 Knob Sub-Assy, Shift Lever[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
33542-33090-E0 |
US $72.80 |
||
| replacement | |||||
|
33504F
|
33504F
33542-33090-C0
Knob Sub-Assy, Shift Lever
[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
33542-33090-C0 |
— | ||
|
33504F
|
33504F
33542-33090-G0
Knob Sub-Assy, Shift Lever
[08.1996 - 07.2001] MCV20 LEATHER,DK.SAGE,TRIM6# |
33542-33090-G0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-33090-C0
Knob Sub-Assy, Shift Lever
[08.1996 - 07.2001] MCV20 LEATHER,DK.SAGE,TRIM6# |
33542-33090-C0 |
— | ||
|
33511
|
33511
33511-33020 Shaft, Control (For Floor Shift)[08.1996 -] MCV20 |
33511-33020 |
US $7.57 |
||
|
33539
|
33539
33539-33010 Cushion, Shift Lever Anti-Rattle[08.1996 -] MCV20 NO.1 |
33539-33010 |
US $5.24 |
||
|
33539
|
33539
33539-33020 Cushion, Shift Lever Anti-RattleSHIFT LEVER ANTI-RATTLE [08.1996 -] MCV20 NO.2 |
33539-33020 |
US $5.10 |
||
|
33544
|
33544
33544-33010 Collar (For Floor Shift Setting)[08.1996 -] MCV20 |
33544-33010 |
US $1.60 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.1996 -] MCV20 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
90339-04055
Cap, Position Indicator Lamp
[08.1996 -] MCV20 |
90339-04055 |
— | ||
| replacement | |||||
|
33550E
|
33550E
35956-75010 Cap, Position Indicator LampPOSITION INDICATOR LAMP [08.1996 -] MCV20 |
35956-75010 |
US $2.24 |
||
|
33554C
|
33554C
33554-33060 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [08.1996 -] MCV20 |
33554-33060 |
US $1.89 |
||
|
33563
|
33563
33563-33090 Button, Shift Lock ReleaseSHIFT LOCK RELEASE [08.1996 -] MCV20 |
33563-33090 |
US $6.70 |
||
|
33563A
|
33563A
90501-06089 Spring, Compression (For Shift Lock Release Button)[08.1996 -] MCV20 |
90501-06089 |
US $1.75 |
||
|
33566
|
33566
90256-04008 Pin, Shift Lever Stop[08.1996 -] MCV20 |
90256-04008 |
US $4.22 |
||
|
33623
|
33623
33623-33070-C0 Button, Shift Lever Knob[08.1996 - 07.2001] MCV20 BLACK,TRIM2# |
33623-33070-C0 |
US $19.07 |
||
|
33623
|
33623
33623-33070-E0 Button, Shift Lever Knob[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
33623-33070-E0 |
US $19.07 |
||
| replacement | |||||
|
33623
|
33623
33623-33070-C0 Button, Shift Lever Knob[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
33623-33070-C0 |
US $19.07 |
||
|
33623
|
33623
33623-33070-G0 Button, Shift Lever Knob[08.1996 - 07.2001] MCV20 DK.SAGE,TRIM6# |
33623-33070-G0 |
US $19.07 |
||
| replacement | |||||
|
33623
|
33623
33623-33070-C0 Button, Shift Lever Knob[08.1996 - 07.2001] MCV20 DK.SAGE,TRIM6# |
33623-33070-C0 |
US $19.07 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1996 -] MCV20 |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-33030 Sleeve, Shift Lever Knob[08.1996 -] MCV20 |
33625-33030 |
US $9.17 |
||
|
33631
|
33631
33631-33070 Rod, Detent[08.1996 -] MCV20 |
33631-33070 |
US $10.34 |
||
|
33631A
|
33631A
90501-07115 Spring, Compression (For Detent Rod)[08.1996 -] MCV20 |
90501-07115 |
US $1.75 |
||
|
35559
|
35559
35559-33030 Spring, Manual Detent[08.1996 -] MCV20 |
35559-33030 |
US $5.68 |
||
|
35559A
|
35559A
90249-02005 Pin, Shift Lever (For Floor Shift)[08.1996 -] MCV20 |
90249-02005 |
US $2.04 |
||
|
35906
|
35906
35906-33050 Wire Sub-Assy, Indicator Lamp[08.1996 -] MCV20 |
35906-33050 |
US $15.58 |
||
| replacement | |||||
|
35906
|
35906
35906-42040
Wire Sub-Assy, Indicator Lamp
[08.1996 -] MCV20 |
35906-42040 |
— | ||
|
35971A
|
35971A
35971-33080 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [08.1996 -] MCV20 |
35971-33080 |
US $20.97 |
||
|
35974
|
35974
35974-33080 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [08.1996 -] MCV20 |
35974-33080 |
US $48.78 |
||
|
35975
|
35975
35975-33040 Cover, Slide (For Position Indicator)[08.1996 -] MCV20 |
35975-33040 |
US $48.78 |
||
|
35976B
|
35976B
35976-33040-C0 Cover, Shift Lever Knob (For Floor Shift)[08.1996 - 07.2001] MCV20 BLACK,TRIM2# |
35976-33040-C0 |
US $47.61 |
||
|
35976B
|
35976B
35976-33040-E0 Cover, Shift Lever Knob (For Floor Shift)[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
35976-33040-E0 |
US $47.61 |
||
| replacement | |||||
|
35976B
|
35976B
35976-33040-C0 Cover, Shift Lever Knob (For Floor Shift)[08.1996 - 07.2001] MCV20 OAK,TRIM0# |
35976-33040-C0 |
US $47.61 |
||
|
35976B
|
35976B
35976-33040-G0 Cover, Shift Lever Knob (For Floor Shift)[08.1996 - 07.2001] MCV20 DK.SAGE,TRIM6# |
35976-33040-G0 |
US $47.61 |
||
| replacement | |||||
|
35976B
|
35976B
35976-33040-C0 Cover, Shift Lever Knob (For Floor Shift)[08.1996 - 07.2001] MCV20 DK.SAGE,TRIM6# |
35976-33040-C0 |
US $47.61 |
||
|
9015940257
|
9015940257
90159-40257 New Genuine Part |
90159-40257 |
US $1.46 |
||
|
9016850066
|
9016850066
90168-50066 New Genuine Part |
90168-50066 |
US $1.46 |
||
|
9025602005
|
9025602005
90256-02005 Pin, Shift Lever Stop |
90256-02005 |
US $0.87 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
