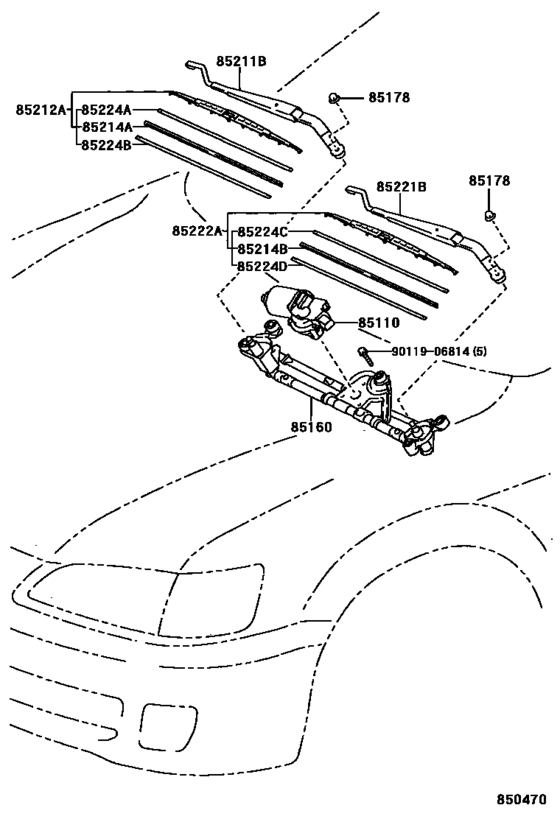

Windshield Wiper ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-33160 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.1996 -] MCV20 |
85110-33160 |
US $410.59 |
||
|
85160
|
85160
85150-33100 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1996 -] MCV20 |
85150-33100 |
US $152.88 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[08.1996 -] MCV20 |
90176-10005 |
US $1.76 |
||
|
85211B
|
85211B
85211-33140
Arm, Front Wiper, Rh
[08.1996 -] MCV20 |
85211-33140 |
— | ||
|
85212A
|
85212A
85212-33160
Blade, Fr Wiper, Rh
[05.1999 -] MCV20 |
85212-33160 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-47021
Blade, Fr Wiper, Rh
[05.1999 -] MCV20 |
85212-47021 |
— | ||
|
85212A
|
85212A
85212-60090 Blade, Fr Wiper, RhFR WIPER, RH [08.1996 - 05.1999] MCV20 |
85212-60090 |
US $36.55 |
||
| replacement | |||||
|
85212A
|
85212A
85212-47021
Blade, Fr Wiper, Rh
[08.1996 - 05.1999] MCV20 |
85212-47021 |
— | ||
|
85214A
|
85214A
85214-33040 Rubber, Wiper, Rh[05.1999 -] MCV20 |
85214-33040 |
US $16.60 |
||
| replacement | |||||
|
85214A
|
85214A
85214-46011 Rubber, Wiper, Lh[05.1999 -] MCV20 |
85214-46011 |
from US $9.54 |
||
|
85214A
|
85214A
85214-60060 Rubber, Wiper, RhWIPER, RH [08.1996 - 05.1999] MCV20 |
85214-60060 |
from US $9.87 |
||
|
85214B
|
85214B
85214-33100 Rubber, Wiper, RhWIPER, RH [08.1996 - 05.1999] MCV20 |
85214-33100 |
US $13.98 |
||
| replacement | |||||
|
85214B
|
85214B
85214-48010 Rubber, Wiper, Rh[08.1996 - 05.1999] MCV20 |
85214-48010 |
from US $11.76 |
||
|
85214B
|
85214B
85214-33170 Rubber, Wiper, Lh[05.1999 - 07.1999] MCV20 |
85214-33170 |
US $13.98 |
||
| replacement | |||||
|
85214B
|
85214B
85214-48010 Rubber, Wiper, Rh[05.1999 - 07.1999] MCV20 |
85214-48010 |
from US $11.76 |
||
|
85214B
|
85214B
85214-60100 Rubber, Wiper, Lh[07.1999 -] MCV20 |
85214-60100 |
US $13.98 |
||
| replacement | |||||
|
85214B
|
85214B
85214-48010 Rubber, Wiper, Rh[07.1999 -] MCV20 |
85214-48010 |
from US $11.76 |
||
|
85221B
|
85221B
85221-33140 Arm, Front Wiper, LhFR WIPER, LH [08.1996 -] MCV20 |
85221-33140 |
US $71.34 |
||
|
85222A
|
85222A
85222-33140 Blade, Fr Wiper, Lh[08.1996 - 05.1999] MCV20 |
85222-33140 |
US $53.44 |
||
| replacement | |||||
|
85222A
|
85222A
85222-33180 Blade, Fr Wiper, Lh[08.1996 - 05.1999] MCV20 |
85222-33180 |
US $53.44 |
||
|
85222A
|
85222A
85222-33180 Blade, Fr Wiper, Lh[05.1999 -] MCV20 |
85222-33180 |
US $53.44 |
||
|
85224A
|
85224A
85224-60100 Plate, Wiper Rubber Backing, No.3[08.1996 -] MCV20 |
85224-60100 |
US $4.22 |
||
|
85224B
|
85224B
85224-60100 Plate, Wiper Rubber Backing, No.3[08.1996 -] MCV20 |
85224-60100 |
US $4.22 |
||
|
85224C
|
85224C
85224-33040 Plate, Wiper Rubber Backing, No.1[08.1996 -] MCV20 |
85224-33040 |
US $3.93 |
||
|
85224D
|
85224D
85224-33040 Plate, Wiper Rubber Backing, No.1[08.1996 -] MCV20 |
85224-33040 |
US $3.93 |
||
|
9011906814
|
9011906814
90119-06814 BOLT WWASHER |
90119-06814 |
US $1.89 |
||
