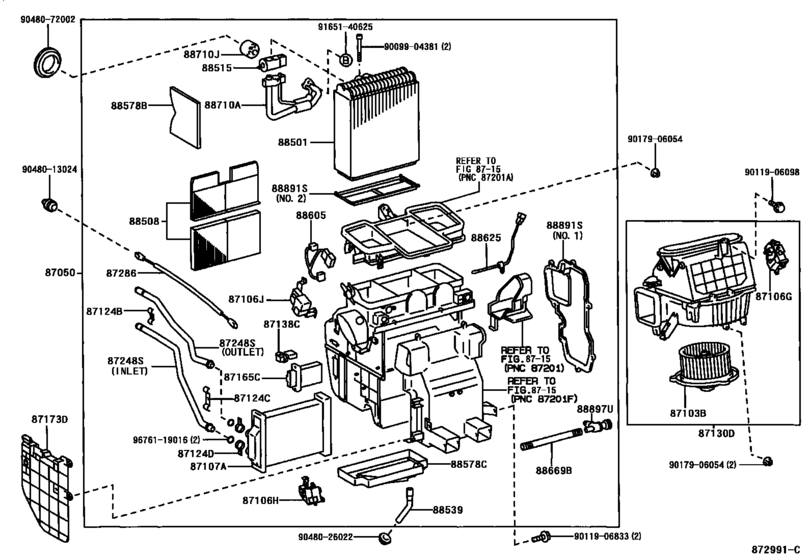

Heating & Air Conditioning - Cooler Unit ([10.1998 - ] (9810- )GCC) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-33460
Radiator Assy, Air Conditioner
[10.1998 -] MCV20..GCC |
87050-33460 |
— | ||
| replacement | |||||
|
87050
|
87050
87050-33400 Radiator Assy, Air Conditioner[10.1998 -] MCV20..GCC |
87050-33400 |
US $1,645.28 |
||
|
87103B
|
87103B
87103-33030
Motor Sub-Assy, Heater Blower, W/fan
[10.1998 - 11.1998] MCV20..GCC |
87103-33030 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-33031
Motor Sub-Assy, Heater Blower, W/fan
[10.1998 - 11.1998] MCV20..GCC |
87103-33031 |
— | ||
|
87103B
|
87103B
87103-33031
Motor Sub-Assy, Heater Blower, W/fan
[11.1998 - 08.1999] MCV20..GCC |
87103-33031 |
— | ||
|
87103B
|
87103B
87103-33050
Motor Sub-Assy, Blower W/fan
[08.1999 -] MCV20..GCC |
87103-33050 |
— | ||
|
87106G
|
87106G
87106-33170
Servo Sub-Assy, Damper(For Blower)
[10.1998 -] MCV20..GCC |
87106-33170 |
— | ||
|
87106H
|
87106H
87106-33150
Servo Sub-Assy, Damper(For Airmix)
[10.1998 -] MCV20..GCC |
87106-33150 |
— | ||
|
87106J
|
87106J
87106-33130
Servo Sub-Assy, Damper(For Mode)
[10.1998 -] MCV20..GCC |
87106-33130 |
— | ||
|
87107A
|
87107A
87107-33070
Unit Sub-Assy, Heater Radiator
[10.1998 -] MCV20..GCC |
87107-33070 |
— | ||
|
87124B
|
87124B
87124-33020
Clamp, Heater
[10.1998 -] MCV20..GCC |
87124-33020 |
— | ||
|
87124C
|
87124C
87124-33030
Clamp, Heater
[10.1998 -] MCV20..GCC |
87124-33030 |
— | ||
|
87124D
|
87124D
87124-35040 Clamp, Heater, No.3[08.1996 -] MCV20 |
87124-35040 |
from US $1.75 |
||
|
87130D
|
87130D
87130-33110
Blower Assy
[10.1998 - 08.1999] MCV20..GCC |
87130-33110 |
— | ||
|
87130D
|
87130D
87130-33111
Blower Assy
[08.1999 -] MCV20..GCC |
87130-33111 |
— | ||
|
87138C
|
87138C
87138-33040
Resistor, Blower
[08.1996 -] MCV20 |
87138-33040 |
— | ||
|
87165C
|
87165C
87165-32010
Resistor, Blower
[07.1998 -] MCV20 |
87165-32010 |
— | ||
|
87173D
|
87173D
87173-33010
Protector, Heater
[10.1998 -] MCV20..GCC |
87173-33010 |
— | ||
|
87248S
|
87248S
87156-33010
Pipe, Front Heater Radiator Water
[10.1998 -] MCV20..GCC INLET |
87156-33010 |
— | ||
|
87248S
|
87248S
87156-33020
Pipe, Front Heater Radiator Water
[10.1998 -] MCV20..GCC OUTLET |
87156-33020 |
— | ||
|
87286
|
87286
87286-33040
Cable, Control
[10.1998 -] MCV20..GCC |
87286-33040 |
— | ||
|
88501
|
88501
88501-33080
Evaporator Sub-Assy, Cooler, No.1
[10.1998 -] MCV20..GCC |
88501-33080 |
— | ||
|
88508
|
88508
88880-33040 Filter Sub-Assy, Clean AirCLEAN AIR [10.1998 - 07.2001] MCV20..GCC |
88880-33040 |
from US $58.24 |
||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[08.1996 -] MCV20 |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[08.1996 -] MCV20 |
88515-22240 |
from US $132.85 |
||
|
88539
|
88539
88539-33010
Hose, Cooler Drain
[10.1998 -] MCV20..GCC |
88539-33010 |
— | ||
|
88578B
|
88578B
88578-33020
Packing, Cooling Unit, No.1
[08.1996 -] MCV20 |
88578-33020 |
— | ||
|
88578C
|
88578C
88578-33040
Packing, Cooling Unit, No.2
[10.1998 -] MCV20..GCC |
88578-33040 |
— | ||
|
88605
|
88605
88605-33070
Harness Sub-Assy, Cooler Wiring, No.1
[10.1998 -] MCV20..GCC |
88605-33070 |
— | ||
|
88625
|
88625
88625-33070
Thermistor, Cooler, No.1
[10.1998 -] MCV20..GCC |
88625-33070 |
— | ||
|
88669B
|
88669B
88669-33050
Hose, Cooler Air
[08.1996 -] MCV20 |
88669-33050 |
— | ||
| replacement | |||||
|
88669B
|
88669B
88669-28030
Hose (For Cooler Thermistor)
[08.1996 -] MCV20 |
88669-28030 |
— | ||
|
88710A
|
88710A
88710-33100 Tube Assy, Air ConditionerAIRCONDITIONER [10.1998 -] MCV20..GCC |
88710-33100 |
US $154.34 |
||
|
88710J
|
88710J
88710-33170
Tube, Air Conditioner Connector
[10.1998 -] MCV20..GCC |
88710-33170 |
— | ||
|
88891S
|
88891S
88891-33021
Cover, Cooler, No.1
[10.1998 -] MCV20..GCC NO.1 |
88891-33021 |
— | ||
|
88891S
|
88891S
88891-33030
Cover, Cooler, No.1
[08.1996 -] MCV20 NO.2 |
88891-33030 |
— | ||
|
88897U
|
88897U
88897-12210
Aspirator
[08.1996 -] MCV20 |
88897-12210 |
— | ||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048013024
|
9048013024
90480-13024 Grommet(For Heater Control Cable) |
90480-13024 |
US $2.62 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9048072002
|
9048072002
90480-72002
New Genuine Part
|
90480-72002 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.78 |
||
