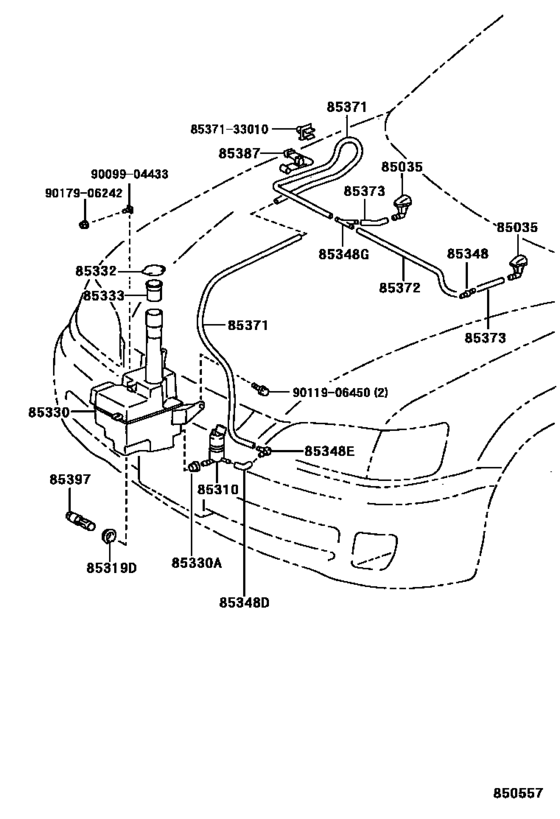

Windshield Washer ([10.1998 - ] (9810- )GCC) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85385-32030
Nozzle Sub-Assy, Washer
[08.1999 -] MCV20 |
85385-32030 |
— | ||
|
85035
|
85035
85385-33080-A0
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC SU.WHITE PM,051 |
85385-33080-A0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-A1
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC SU.WHITE PM,051 |
85381-30060-A1 |
— | ||
|
85035
|
85035
85385-33080-B0
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC GRAY M.M,1B2 |
85385-33080-B0 |
— | ||
|
85035
|
85035
85385-33080-D1
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC DK.RED MC.,3N6 |
85385-33080-D1 |
— | ||
|
85035
|
85035
85385-33080-E0
Nozzle Sub-Assy, Washer
[10.1998 - 08.1999] MCV20..GCC FLAXEN MM,4M7 |
85385-33080-E0 |
— | ||
|
85035
|
85035
85385-33080-E1
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC BEIGE ME.,4M9 |
85385-33080-E1 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-30040-E2
Nozzle Sub-Assy, Washer
[10.1998 -] MCV20..GCC BEIGE ME.,4M9 |
85385-30040-E2 |
— | ||
|
85035
|
85035
85385-33080-E2
Nozzle Sub-Assy, Washer
[01.2000 - 07.2000] MCV20..GCC LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BEIGE SF.,4P2 |
85385-33080-E2 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-E0
Nozzle Sub-Assy, Washer
[01.2000 - 07.2000] MCV20..GCC LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BEIGE SF.,4P2 |
85381-30060-E0 |
— | ||
|
85035
|
85035
85385-33080-G0
Nozzle Sub-Assy, Washer
[08.1999 -] MCV20..GCC GRAYISH GREEN M.M.OP,6R6 |
85385-33080-G0 |
— | ||
|
85310
|
85310
85330-33020 Motor And Pump Assy, Windshield Washer[10.1998 -] MCV20..GCC |
85330-33020 |
US $98.87 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[08.1996 -] MCV20 |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-33230
Jar Assy, Windshield Washer
[08.1996 -] MCV20 |
85315-33230 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1996 -] MCV20 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1996 -] MCV20 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1996 -] MCV20 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-33050 Cap, Washer, Inlet[08.1996 -] MCV20 |
85316-33050 |
from US $2.10 |
||
|
85333
|
85333
85333-12470 Filter, Windshield Washer Jar[10.1998 -] MCV20..GCC |
85333-12470 |
from US $6.47 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1996 -] MCV20 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-32110 Joint, Windshield Washer Elbow, No.1[10.1998 -] MCV20..GCC |
85355-32110 |
from US $1.40 |
||
|
85348E
|
85348E
85317-12410
Joint, Windshield Washer Elbow, No.2
[10.1998 -] MCV20..GCC |
85317-12410 |
— | ||
|
85348G
|
85348G
85378-33230
Joint, Windshield Washer Elbow, No.2
[10.1998 -] MCV20..GCC |
85378-33230 |
— | ||
|
85371
|
85371
90099-33921
Hose, Windshield Washer (From Motor To Joint)
[10.1998 -] MCV20..GCC L=2250 |
90099-33921 |
— | ||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.1998 -] MCV20..GCC *H,L=490 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1996 -] MCV20 *H,L=130 |
90099-33080 |
from US $6.16 |
||
|
85387
|
85387
85387-22410 Clamp No.1 (For Windseield Washer)[08.1996 -] MCV20 |
85387-22410 |
from US $3.14 |
||
|
85397
|
85397
85397-33230 Switch Assy,level Warning[08.1996 -] MCV20 |
85397-33230 |
from US $38.29 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
US $2.40 |
||
|
9009904433
|
9009904433
90099-04433
New Genuine Part
|
90099-04433 |
— | ||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9017906242
|
9017906242
90179-06242
Direct
|
90179-06242 |
— | ||
| replacement | |||||
|
9017906242
|
9017906242
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
