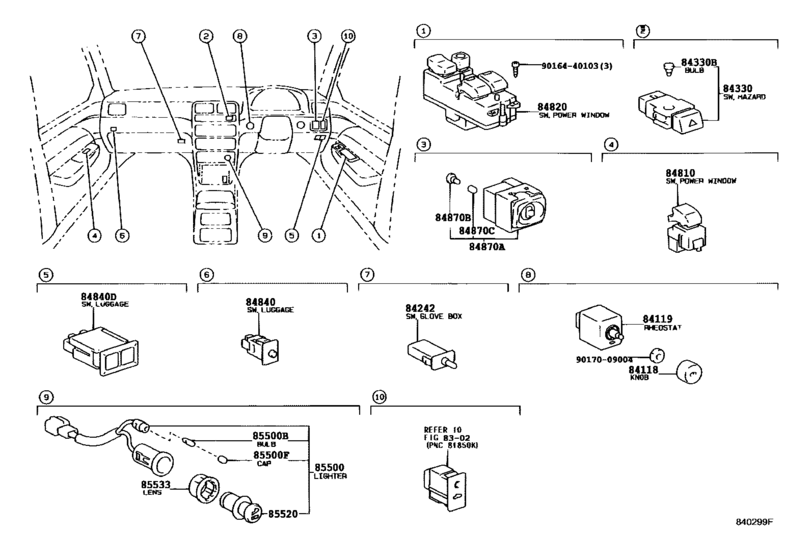

Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-20030 Knob, Light Control Rheostat[08.1996 -] MCV20 |
84118-20030 |
US $5.76 |
||
|
84119
|
84119
84119-33110 Rheostat, Light Control[08.1996 -] MCV20..ARL |
84119-33110 |
US $123.76 |
||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[08.1996 -] MCV20 |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-20350 Switch Assy, Hazard Warning Signal[08.1996 -] MCV20 |
84332-20350 |
US $57.37 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[08.1996 -] MCV20 14V 0.91W |
84999-10860 |
from US $4.32 |
||
|
84810
|
84810
84810-33030 Switch Assy, Power Window Regulator[08.1996 -] MCV20..ARL |
84810-33030 |
US $58.01 |
||
|
84820
|
84820
84820-33090
Master Switch Assy, Power Window Regulator
[08.1996 - 08.1998] MCV20 |
84820-33090 |
— | ||
|
84820
|
84820
84820-33100
Master Switch Assy, Power Window Regulator
[08.1998 -] MCV20..ARL |
84820-33100 |
— | ||
|
84840
|
84840
84840-33060 Switch Assy, Luggage Compartment Door Opening[08.1996 -] MCV20 |
84840-33060 |
US $41.93 |
||
|
84840D
|
84840D
84840-33040-A0 Switch Assy, Luggage Door Opening[08.1996 -] MCV20..ARL IVORY,TRIM0# |
84840-33040-A0 |
US $68.87 |
||
| replacement | |||||
|
84840D
|
84840D
84840-33040-C0 Switch Assy, Luggage Door Opening[08.1996 -] MCV20..ARL IVORY,TRIM0# |
84840-33040-C0 |
US $68.87 |
||
|
84840D
|
84840D
84840-33040-C0 Switch Assy, Luggage Door Opening[08.1999 -] MCV20..ARL BLACK,TRIM2# |
84840-33040-C0 |
US $68.87 |
||
|
84840D
|
84840D
84840-33040-G0 Switch Assy, Luggage Door Opening[08.1996 -] MCV20..ARL SAGE,TRIM6# |
84840-33040-G0 |
US $68.87 |
||
| replacement | |||||
|
84840D
|
84840D
84840-33040-C0 Switch Assy, Luggage Door Opening[08.1996 -] MCV20..ARL SAGE,TRIM6# |
84840-33040-C0 |
US $68.87 |
||
|
84870A
|
84870A
84870-50180 Switch Assy, Outer Mirror[08.1996 -] MCV20 |
84870-50180 |
US $55.76 |
||
|
84870B
|
84870B
84999-10470 Bulb, Hazard Warning Signal Switch[08.1996 -] MCV20 14V 1.12W |
84999-10470 |
from US $6.12 |
||
|
84870C
|
84870C
84998-10430 Cap, Outer Mirror Switch Bulb[08.1996 -] MCV20 |
84998-10430 |
from US $1.93 |
||
|
85500
|
85500
85500-33020 Lighter Assy, Cigarette[08.1996 - 07.2001] MCV20 |
85500-33020 |
US $48.19 |
||
| replacement | |||||
|
85500
|
85500
85500-33011 Lighter Assy, Cigarette[08.1996 - 07.2001] MCV20 |
85500-33011 |
US $48.19 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1996 - 07.2001] MCV20 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85500F
|
85500F
90339-04014 Cap, Position Indicator Lamp[08.1996 - 07.2001] MCV20 |
90339-04014 |
US $1.60 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.1999 - 07.2001] MCV20 |
85520-28010 |
from US $17.90 |
||
|
85533
|
85533
85533-50010 Lens, Cigarette Lighter Indicator[08.1996 - 07.2001] MCV20 |
85533-50010 |
US $5.53 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017009004
|
9017009004
90170-09004 New Genuine Part |
90170-09004 |
US $2.04 |
||
