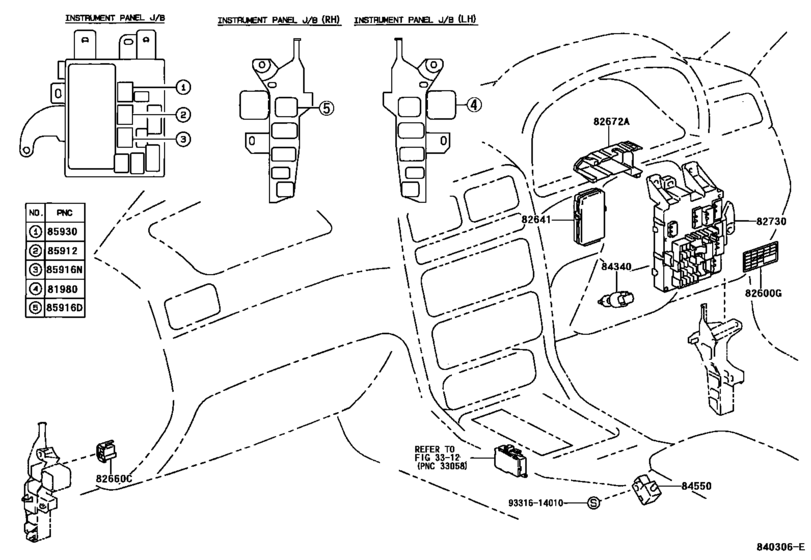

Switch & Relay & Computer ([08.1996 - ] COWL (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1996 - 08.1997] MCV20 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1996 - 08.1997] MCV20 |
81980-32010 |
from US $54.42 |
||
|
81980
|
81980
81980-12110
Flasher Assy, Turn Signal
[08.1997 -] MCV20 |
81980-12110 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1997 -] MCV20 |
81980-32010 |
from US $54.42 |
||
|
82600G
|
82600G
82683-33130 Plate, Caution(For Fuse)[08.1996 - 08.1998] MCV20 |
82683-33130 |
US $3.64 |
||
|
82600G
|
82600G
82683-33150 Plate, Caution(For Fuse)[08.1998 -] MCV20..ARL |
82683-33150 |
US $3.64 |
||
|
82641
|
82641
82641-33100 Relay, Integration No.1[08.1996 - 08.1998] MCV20 |
82641-33100 |
US $317.41 |
||
| replacement | |||||
|
82641
|
82641
82641-33101 Relay, Integration No.1[08.1996 - 08.1998] MCV20 |
82641-33101 |
US $317.41 |
||
|
82641
|
82641
82641-33101 Relay, Integration No.1[08.1998 -] MCV20..ARL |
82641-33101 |
US $317.41 |
||
|
82660C
|
82660C
82660-20340 Block Assy, Relay, Engine Room[08.1996 -] MCV20 |
82660-20340 |
US $5.59 |
||
|
82672A
|
82672A
82672-33150 Cover, Junction Block[08.1996 -] MCV20..ARL |
82672-33150 |
US $9.46 |
||
|
82730
|
82730
82730-0W010 Block Assy, Instrument Panel Junction[08.1996 - 08.1998] MCV20 |
82730-0W010 |
US $347.98 |
||
|
82730
|
82730
82730-0W020 Block Assy, Instrument Panel Junction[08.1998 -] MCV20..ARL |
82730-0W020 |
US $347.98 |
||
|
84340
|
84340
84340-32110 Switch Assy, Stop Lamp[08.1996 -] MCV20 |
84340-32110 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[08.1996 -] MCV20 |
84340-42020 |
from US $21.28 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[08.1996 -] MCV20..ARL |
84550-33010 |
from US $18.39 |
||
|
85912
|
85912
90080-87010 Relay, Ignition, No.1[08.1996 -] MCV20 SIEMENS |
90080-87010 |
US $14.27 |
||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 DENSO |
90987-02012 |
from US $26.99 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 |
90987-02012 |
from US $26.99 |
||
|
85916N
|
85916N
90080-87010 Relay, Ignition, No.1[08.1996 -] MCV20 SIEMENS |
90080-87010 |
US $14.27 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 DENSO |
90987-02012 |
from US $26.99 |
||
|
85930
|
85930
90080-87010 Relay, Ignition, No.1[08.1996 -] MCV20 SIEMENS |
90080-87010 |
US $14.27 |
||
|
85930
|
85930
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 DENSO |
90987-02012 |
from US $26.99 |
||
|
9331614010
|
9331614010
93316-14010
New Genuine Part
|
93316-14010 |
— | ||
