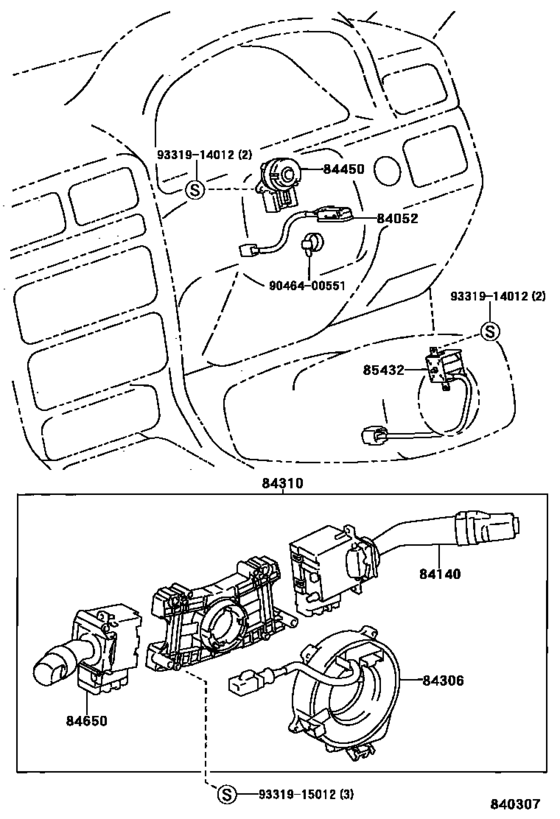

Switch & Relay & Computer ([08.1996 - ] COMBINATION SWITCH (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-33040 Switch Assy, Un-Lock Warning[08.1996 -] MCV20 |
84052-33040 |
US $22.54 |
||
|
84140
|
84140
84140-33060 Switch Assy, Headlamp Dimmer[08.1996 -] MCV20..ARL |
84140-33060 |
US $124.05 |
||
|
84306
|
84306
84306-30110 Cable Sub-Assy, Spiral[08.1999 -] MCV20..ARL |
84306-30110 |
US $282.46 |
||
|
84306
|
84306
84306-50120 Cable Sub-Assy, Spiral[08.1996 - 08.1999] MCV20..ARL |
84306-50120 |
from US $192.19 |
||
|
84310
|
84310
84310-33590 Switch Assy, Turn SignalTURN SIGNAL [08.1996 - 08.1999] MCV20..ARL |
84310-33590 |
US $417.87 |
||
|
84310
|
84310
84310-33840 Switch Assy, Turn SignalTURN SIGNAL [08.1999 -] MCV20..ARL |
84310-33840 |
US $417.87 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[08.1996 -] MCV20 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-2D850 Switch Assy, Windshield Wiper[08.1996 -] MCV20..ARL |
84652-2D850 |
US $128.13 |
||
|
85432
|
85432
85432-33020 Solenoid, Key Inter Lock[08.1996 -] MCV20 |
85432-33020 |
US $64.21 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
