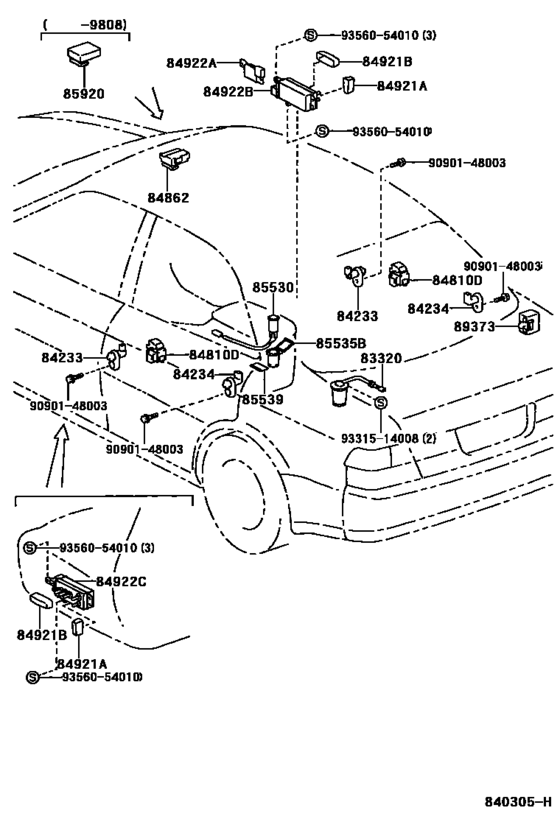

Switch & Relay & Computer ([08.1996 - ] FLOOR, DOOR, LUGGAGE (9608- )ARL) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- ARL
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-33040 Gage Assy, Fuel Sender[08.1996 -] MCV20..ARL |
83320-33040 |
US $58.39 |
||
| replacement | |||||
|
83320
|
83320
83320-33030 Gage Assy, Fuel Sender[08.1996 -] MCV20..ARL |
83320-33030 |
US $103.08 |
||
|
84233
|
84233
84231-33071 Switch Assy, Courtesy Lamp (For Front Door)[08.1996 - 11.1999] MCV20 |
84231-33071 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[08.1996 - 11.1999] MCV20 |
84231-53010 |
from US $10.56 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[11.1999 -] MCV20 |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-33071 Switch Assy, Courtesy Lamp (For Front Door)[08.1996 - 11.1999] MCV20 |
84231-33071 |
US $14.41 |
||
| replacement | |||||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[08.1996 - 11.1999] MCV20 |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[11.1999 -] MCV20 |
84231-53010 |
from US $10.56 |
||
|
84810D
|
84810D
84810-33030 Switch Assy, Power Window Regulator[08.1996 -] MCV20 |
84810-33030 |
US $58.01 |
||
|
84862
|
84862
84862-AA010-A1 Switch, Slide Roof Motor[08.1998 -] MCV20 IVORY,TRIM0# |
84862-AA010-A1 |
US $57.51 |
||
|
84862
|
84862
84862-AA010-B1 Switch, Slide Roof Motor[08.1999 -] MCV20 BLUE GRAY,TRIM2# |
84862-AA010-B1 |
US $57.08 |
||
|
84862
|
84862
84862-AA010-G0 Switch, Slide Roof Motor[08.1998 -] MCV20 SAGE,TRIM6# |
84862-AA010-G0 |
US $57.51 |
||
|
84921A
|
84921A
84921-33040-A0
Knob, Power Seat Switch
[08.1996 -] MCV20 IVORY,TRIM0# |
84921-33040-A0 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[08.1996 -] MCV20 IVORY,TRIM0# |
84921-33040-C0 |
US $6.84 |
||
|
84921A
|
84921A
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[08.1999 -] MCV20 BLACK,TRIM2# |
84921-33040-C0 |
US $6.84 |
||
|
84921A
|
84921A
84921-33040-G0 Knob, Power Seat Switch (For Reclining)[08.1996 -] MCV20 SAGE,TRIM6# |
84921-33040-G0 |
US $6.99 |
||
| replacement | |||||
|
84921A
|
84921A
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[08.1996 -] MCV20 SAGE,TRIM6# |
84921-33040-C0 |
US $6.84 |
||
|
84921B
|
84921B
84921-33050-A0 Knob, Power Seat Switch (For Slide & Vertical)[08.1996 - 11.1996] MCV20 IVORY,TRIM0# |
84921-33050-A0 |
US $11.36 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33050-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.1996 - 11.1996] MCV20 IVORY,TRIM0# |
84921-33050-C0 |
US $11.21 |
||
|
84921B
|
84921B
84921-33050-G0 Knob, Power Seat Switch (For Slide & Vertical)[08.1996 - 11.1996] MCV20 SAGE,TRIM6# |
84921-33050-G0 |
US $11.36 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33050-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.1996 - 11.1996] MCV20 SAGE,TRIM6# |
84921-33050-C0 |
US $11.21 |
||
|
84921B
|
84921B
84921-33090-A0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 IVORY,TRIM0#,RH |
84921-33090-A0 |
US $11.07 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33090-C0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 IVORY,TRIM0#,RH |
84921-33090-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33090-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.1999 -] MCV20 BLACK,TRIM2#,RH |
84921-33090-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33090-G0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 SAGE,TRIM6#,RH |
84921-33090-G0 |
US $11.07 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33090-C0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 SAGE,TRIM6#,RH |
84921-33090-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33100-A0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 IVORY,TRIM0#,LH |
84921-33100-A0 |
US $11.07 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33100-C0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 IVORY,TRIM0#,LH |
84921-33100-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33100-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.1999 -] MCV20 BLACK,TRIM2#,LH |
84921-33100-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33100-G0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 SAGE,TRIM6#,LH |
84921-33100-G0 |
US $11.07 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33100-C0 Knob, Power Seat Switch (For Slide & Vertical)[11.1996 -] MCV20 SAGE,TRIM6#,LH |
84921-33100-C0 |
US $11.07 |
||
|
84922A
|
84922A
84920-33010-A0 Switch, Front Power Seat(For Lumbar)[08.1996 -] MCV20..ARL IVORY,TRIM0# |
84920-33010-A0 |
US $70.76 |
||
| replacement | |||||
|
84922A
|
84922A
84920-33010-C0 Switch, Front Power Seat(For Lumbar)[08.1996 -] MCV20..ARL IVORY,TRIM0# |
84920-33010-C0 |
US $70.76 |
||
|
84922A
|
84922A
84920-33010-C0 Switch, Front Power Seat(For Lumbar)[08.1999 -] MCV20..ARL BLACK,TRIM2# |
84920-33010-C0 |
US $70.76 |
||
|
84922A
|
84922A
84920-33010-G0 Switch, Front Power Seat(For Lumbar)[08.1996 -] MCV20..ARL SAGE,TRIM6# |
84920-33010-G0 |
US $70.76 |
||
| replacement | |||||
|
84922A
|
84922A
84920-33010-C0 Switch, Front Power Seat(For Lumbar)[08.1996 -] MCV20..ARL SAGE,TRIM6# |
84920-33010-C0 |
US $70.76 |
||
|
84922B
|
84922B
84920-33010-A0 Switch, Front Power Seat(For Lumbar)[08.1996 - 08.1999] MCV20..ARL IVORY,TRIM0#,2-WAY |
84920-33010-A0 |
US $70.76 |
||
| replacement | |||||
|
84922B
|
84922B
84920-33010-C0 Switch, Front Power Seat(For Lumbar)[08.1996 - 08.1999] MCV20..ARL IVORY,TRIM0#,2-WAY |
84920-33010-C0 |
US $70.76 |
||
|
84922B
|
84922B
84920-33010-G0 Switch, Front Power Seat(For Lumbar)[08.1996 - 08.1999] MCV20..ARL SAGE,TRIM6#,2-WAY |
84920-33010-G0 |
US $70.76 |
||
| replacement | |||||
|
84922B
|
84922B
84920-33010-C0 Switch, Front Power Seat(For Lumbar)[08.1996 - 08.1999] MCV20..ARL SAGE,TRIM6#,2-WAY |
84920-33010-C0 |
US $70.76 |
||
|
84922B
|
84922B
84922-33100 Switch, Front Power Seat[08.1996 -] MCV20 |
84922-33100 |
US $147.06 |
||
|
84922C
|
84922C
84922-33110 Switch, Front Power Seat[08.1996 -] MCV20 |
84922-33110 |
US $147.06 |
||
|
85530
|
85530
85530-33010 Socket Assy, Power Outlet, No.1[08.1996 -] MCV20 |
85530-33010 |
US $37.56 |
||
|
85535B
|
85535B
85535-33020 Cover, Power Outlet Socket, No.1[08.1996 -] MCV20 |
85535-33020 |
US $11.36 |
||
|
85539
|
85539
85539-33010 Label, Power Outlet Notice[08.1996 -] MCV20 |
85539-33010 |
US $2.48 |
||
|
85920
|
85920
85920-0W010-A0 Relay & Switch Assy, Sliding Roof[08.1996 - 08.1998] MCV20 IVORY,TRIM0# |
85920-0W010-A0 |
US $298.48 |
||
|
85920
|
85920
85920-0W010-G0 Relay & Switch Assy, Sliding Roof[08.1996 - 08.1998] MCV20 SAGE,TRIM6# |
85920-0W010-G0 |
US $298.48 |
||
|
89373
|
89373
89373-12160 Sensor, Lamp Failure Indicator[08.1996 -] MCV20..ARL |
89373-12160 |
US $235.87 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
