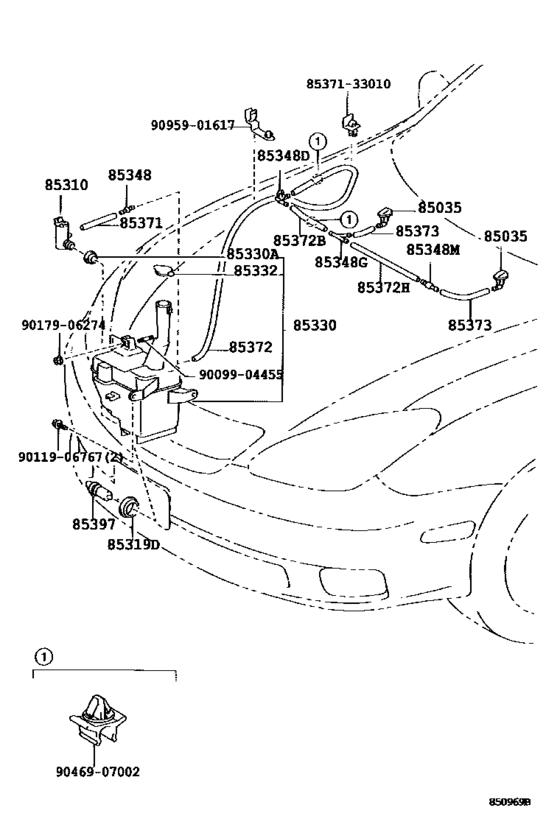

Windshield Washer ([07.2001 - ] (0107- )GCC) Diagram Toyota LEXUS ES
- Year
- 2001 - 2006
- Sales region
- General
- Frame
- MCV30
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- ES300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-33060-A0 Nozzle Sub-Assy, Washer[07.2001 - 06.2004] MCV30 WHITE PEARL CS.,062 |
85381-33060-A0 |
US $14.08 |
||
|
85035
|
85035
85381-33060-B0 Nozzle Sub-Assy, Washer[07.2001 - 06.2004] MCV30 SILVER ME.,1C0 |
85381-33060-B0 |
US $16.07 |
||
|
85035
|
85035
85381-33060-B1
Nozzle Sub-Assy, Washer
[06.2004 - 03.2006] MCV30 GRAY M.M.,1F5 |
85381-33060-B1 |
— | ||
|
85035
|
85035
85381-33060-B2
Nozzle Sub-Assy, Washer
[06.2004 - 03.2006] MCV30 SILVER ME.,1F7 |
85381-33060-B2 |
— | ||
|
85035
|
85035
85381-33060-C0 Nozzle Sub-Assy, Washer[07.2001 - 06.2004] MCV30 BLACK,202 |
85381-33060-C0 |
from US $14.16 |
||
|
85035
|
85035
85381-33060-D0
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 DK.RED MC.,3Q2 |
85381-33060-D0 |
— | ||
|
85035
|
85035
85381-33060-D1
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 SHELL ME.,3Q4 |
85381-33060-D1 |
— | ||
|
85035
|
85035
85381-33060-E0
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 BEIGE ME.,4P7 |
85381-33060-E0 |
— | ||
|
85035
|
85035
85381-33060-E1
Nozzle Sub-Assy, Washer
[06.2004 - 03.2006] MCV30 BEIGE M.M.,4R3 |
85381-33060-E1 |
— | ||
|
85035
|
85035
85381-33060-G0
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 GREEN M.M.,6S5 |
85381-33060-G0 |
— | ||
|
85035
|
85035
85381-33060-G1
Nozzle Sub-Assy, Washer
[06.2004 - 03.2006] MCV30 GREEN M.M.,6T5 |
85381-33060-G1 |
— | ||
|
85035
|
85035
85381-33060-H0
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 LT. AQUA M.M.,772 |
85381-33060-H0 |
— | ||
|
85035
|
85035
85381-33060-J0
Nozzle Sub-Assy, Washer
[07.2001 - 06.2004] MCV30 DARK BLUE MC.,8P8 |
85381-33060-J0 |
— | ||
|
85310
|
85310
85330-33020 Motor And Pump Assy, Windshield Washer[07.2001 - 06.2004] MCV30..GCC |
85330-33020 |
US $98.87 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[07.2001 - 06.2004] MCV30 |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-33250
Jar Assy, Windshield Washer
[07.2001 - 06.2004] MCV30 |
85315-33250 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[07.2001 - 06.2004] MCV30 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[07.2001 - 06.2004] MCV30 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[07.2001 - 06.2004] MCV30 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[07.2001 - 06.2004] MCV30 |
85316-16070 |
from US $1.75 |
||
|
85348
|
85348
85375-33340
Joint, Windshield Washer Hose, No.1
[07.2001 - 06.2004] MCV30..GCC |
85375-33340 |
— | ||
|
85348D
|
85348D
85375-16160 Joint, Windshield Washer Hose, No.1[07.2001 - 06.2004] MCV30 |
85375-16160 |
from US $0.84 |
||
|
85348G
|
85348G
85348-12250 Joint, Windshield Washer Hose, No.1[07.2001 - 06.2004] MCV30..GCC |
85348-12250 |
from US $0.55 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[07.2001 - 06.2004] MCV30..GCC |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[07.2001 - 06.2004] MCV30..GCC *H,L=100 |
90099-33075 |
from US $6.57 |
||
|
85372
|
85372
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[07.2001 - 06.2004] MCV30..GCC *H,L=1630 |
90099-33803 |
from US $8 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2001 - 06.2004] MCV30..ARL *H,L=900; MCV30..GCC *H,L=390 |
90099-33080 |
from US $8.31 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2001 - 06.2004] MCV30..GCC *H,L=510 |
90099-33080 |
from US $8.31 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2001 - 06.2004] MCV30 *H,L=160 |
90099-33080 |
from US $8.31 |
||
|
85397
|
85397
85397-33230 Switch Assy,level Warning[07.2001 - 06.2004] MCV30 |
85397-33230 |
from US $38.29 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
US $2.40 |
||
|
9009904455
|
9009904455
90099-04455
New Genuine Part
|
90099-04455 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046907002
|
9046907002
90469-07002 Clamp No.2 (For Windseield Washer) |
90469-07002 |
from US $2.77 |
||
|
9095901617
|
9095901617
90959-01617 CLAMP |
90959-01617 |
from US $1.89 |
||
