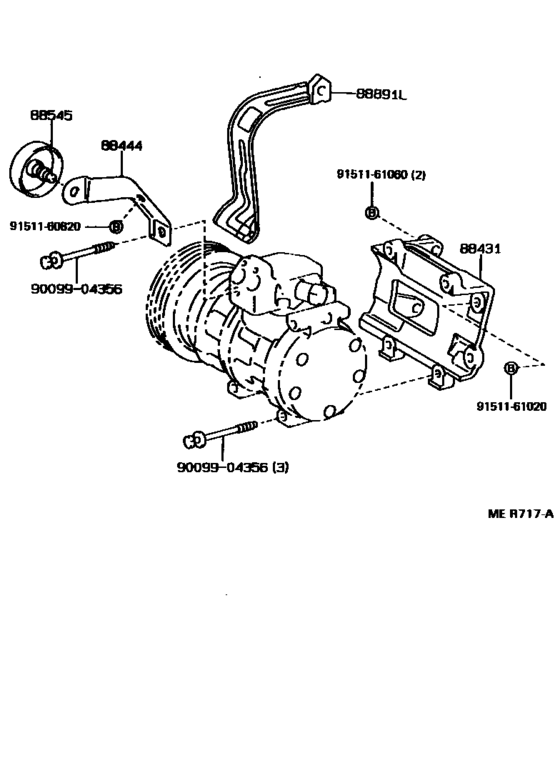

Heating & Air Conditioning - Compressor ([07.1991 - 08.1993] (9107-9308)) Diagram Toyota LEXUS ES
- Year
- 1991 - 1993
- Sales region
- U.S.A.
- Frame
- VCV10
- ENGINE
- 3VZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 07.1991
- To
- 08.1993
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-33010
Bracket, Compressor Mounting, No.1
[07.1991 - 08.1993] VCV10 |
88431-33010 |
— | ||
|
88444
|
88444
88444-33010
Bracket, Idle Pulley
[07.1991 - 09.1991] VCV10 |
88444-33010 |
— | ||
|
88444
|
88444
88444-33011
Bracket, Idle Pulley
[09.1991 - 08.1992] VCV10 |
88444-33011 |
— | ||
| replacement | |||||
|
88444
|
88444
88444-33012
Bracket, Idle Pulley
[09.1991 - 08.1992] VCV10 |
88444-33012 |
— | ||
|
88444
|
88444
88444-33012
Bracket, Idle Pulley
[08.1992 - 08.1993] VCV10 |
88444-33012 |
— | ||
|
88545
|
88545
88440-33010 Pulley Assy, Idle[07.1991 - 08.1993] VCV10 |
88440-33010 |
US $68.87 |
||
|
88891L
|
88891L
88891-33040
Cover, Cooler, No.1
[09.1991 - 08.1992] VCV10 |
88891-33040 |
— | ||
| replacement | |||||
|
88891L
|
88891L
88891-33041
Cover, Cooler, No.1
[09.1991 - 08.1992] VCV10 |
88891-33041 |
— | ||
|
88891L
|
88891L
88891-33041
Cover, Cooler, No.1
[08.1992 - 08.1993] VCV10 |
88891-33041 |
— | ||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9151161020
|
9151161020
91511-61020 Bolt(For Front Transaxle Case Cover) |
91511-61020 |
US $3.06 |
||
| replacement | |||||
|
9151161020
|
9151161020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
|
9151161060
|
9151161060
91511-61060 Bolt(For Transaxle Case & Engine Setting) |
91511-61060 |
US $3.20 |
||
| replacement | |||||
|
9151161060
|
9151161060
91512-61060 Bolt(For Transaxle Case & Engine Setting) |
91512-61060 |
US $3.52 |
||
