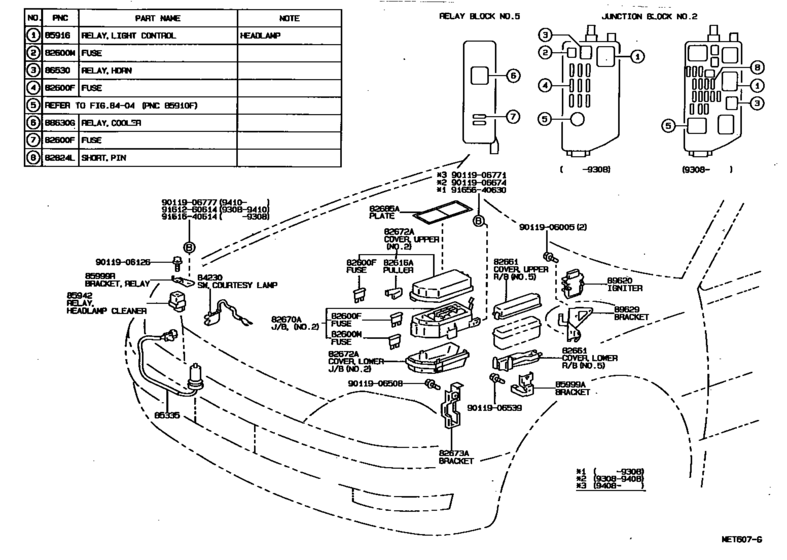

Switch & Relay & Computer ([03.1992 - 08.1996] ENGINE ROOM (9203-9608)) Diagram Toyota LEXUS ES
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- VCV10
- ENGINE
- 3VZFE
- TRANSMISSION
- ATM
- Model
- ES300
- From
- 03.1992
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 30A,NO.2 RELAY BLOCK |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[03.1992 - 08.1994] VCV10 10A,NO.2 RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[03.1992 - 08.1996] VCV10 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[03.1992 - 08.1996] VCV10 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 7.5A,NO.2 RELAY BLOCK |
90982-09005 |
from US $1.03 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1993 - 08.1994] VCV10 7.5A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1993 - 08.1994] VCV10 10A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1993 - 08.1994] VCV10 15A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1993 - 08.1994] VCV10 20A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1993 - 08.1994] VCV10 30A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[03.1992 - 08.1996] VCV10 30A |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[08.1993 - 08.1996] VCV10 40A |
90982-10002 |
US $4.48 |
||
|
82616A
|
82616A
82616-12020 Puller, Fuse[03.1992 - 08.1993] VCV10 |
82616-12020 |
US $4.19 |
||
|
82616A
|
82616A
82616-20010 Puller, Fuse[08.1993 - 08.1996] VCV10 |
82616-20010 |
from US $2.36 |
||
|
82661
|
82661
82662-33040 Cover, Relay Block, No.1[03.1992 - 08.1993] VCV10 W(*66),NO.5 UPPER; VCV10 NO.5 UPPER |
82662-33040 |
US $18.20 |
||
|
82661
|
82661
82662-33090 Cover, Relay Block, No.1[08.1993 - 08.1994] VCV10 NO.5 UPPER |
82662-33090 |
US $18.20 |
||
|
82661
|
82661
82663-33010 Cover, Relay Block, No.1[03.1992 - 08.1993] VCV10 W(*66),NO.5 LOWER |
82663-33010 |
US $11.65 |
||
|
82670A
|
82670A
82670-33020 Block Assy, Junction, No.1[03.1992 - 08.1993] VCV10 NO.2 |
82670-33020 |
US $285.38 |
||
|
82670A
|
82670A
82670-33070 Block Assy, Junction, No.1[03.1992 - 08.1994] VCV10 NO.1 |
82670-33070 |
US $273.73 |
||
|
82670A
|
82670A
82720-33020 Block Assy, Junction, No.1[08.1993 - 08.1996] VCV10 NO.2 |
82720-33020 |
US $308.67 |
||
| replacement | |||||
|
82670A
|
82670A
82720-33040 Block Assy, Junction, No.1[08.1993 - 08.1996] VCV10 NO.2 |
82720-33040 |
US $310.13 |
||
|
82672A
|
82672A
82672-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 UPPER |
82672-33010 |
US $35.82 |
||
|
82672A
|
82672A
82672-33040
Cover, Junction Block
[03.1992 - 08.1996] VCV10 NO.3 |
82672-33040 |
— | ||
|
82672A
|
82672A
82672-33060 Cover, Junction Block[03.1992 - 08.1996] VCV10 NO.1 |
82672-33060 |
US $20.82 |
||
|
82672A
|
82672A
82672-33080 Cover, Junction Block[08.1993 - 08.1994] VCV10 NO.2 UPPER |
82672-33080 |
US $41.79 |
||
|
82672A
|
82672A
82672-33081 Cover, Junction Block[08.1994 - 08.1996] VCV10 NO.2 UPPER |
82672-33081 |
US $26.35 |
||
|
82672A
|
82672A
82674-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 LOWER |
82674-33010 |
US $27.37 |
||
|
82672A
|
82672A
82674-33020 Cover, Junction Block[08.1993 - 08.1996] VCV10 NO.2 LOWER |
82674-33020 |
US $26.56 |
||
|
82673A
|
82673A
82673-33010 Bracket, Junction Block[03.1992 - 08.1996] VCV10 |
82673-33010 |
US $11.07 |
||
|
82685A
|
82685A
82685-33010
Plate, Caution
[03.1992 - 08.1993] VCV10 |
82685-33010 |
— | ||
|
82685A
|
82685A
82685-33020 Plate, CautionCAUTION [08.1993 - 08.1996] VCV10 |
82685-33020 |
US $3.93 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[08.1993 - 08.1996] VCV10 |
82824-20140 |
US $3.32 |
||
|
84230
|
84230
84231-33030 Switch Assy, Courtesy Lamp (For Engine Room)COURTESY LAMP (FOR ENGINE ROOM) [03.1992 - 08.1996] VCV10 |
84231-33030 |
US $14.41 |
||
|
85335
|
85335
85397-33180
Switch Assy, Washer Level Warning
[08.1993 - 08.1996] VCV10 |
85397-33180 |
— | ||
|
85916
|
85916
90987-02006 Relay[03.1992 - 08.1996] VCV10 HEAD LAMP |
90987-02006 |
from US $27.28 |
||
|
85916
|
85916
90987-02009 Relay Assy[03.1992 - 08.1996] VCV10 TAIL LAMP |
90987-02009 |
from US $32.51 |
||
|
85942
|
85942
85942-33010 Relay, Cleaner Control[08.1993 - 08.1996] VCV10 |
85942-33010 |
US $164.24 |
||
|
85999A
|
85999A
85999-33050 Bracket, Relay, No.2[03.1992 - 08.1996] VCV10 |
85999-33050 |
US $9.03 |
||
|
85999R
|
85999R
85999-33070 Bracket, Relay, No.6RELAY, NO.6 [08.1993 - 08.1996] VCV10 |
85999-33070 |
US $5.24 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[03.1992 - 08.1996] VCV10 |
86530-20070 |
from US $15.20 |
||
|
88630G
|
88630G
90987-02009 Relay Assy[08.1994 - 08.1996] VCV10 |
90987-02009 |
from US $32.51 |
||
|
89620
|
89620
89621-33010 Igniter Assy[03.1992 - 08.1996] VCV10 |
89621-33010 |
US $438.26 |
||
|
89629
|
89629
89629-33020 Bracket, Igniter Assy[03.1992 - 08.1996] VCV10 |
89629-33020 |
US $26.50 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
from US $1.12 |
||
| replacement | |||||
|
9011906126
|
9011906126
90080-11157
Bolt with Washer
|
90080-11157 |
— | ||
|
9011906508
|
9011906508
90119-06508 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
90119-06508 |
US $1.44 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9011906674
|
9011906674
90119-06674
New Genuine Part
|
90119-06674 |
— | ||
| replacement | |||||
|
9011906674
|
9011906674
91651-G0645 New Genuine Part |
91651-G0645 |
US $1.05 |
||
|
9011906771
|
9011906771
90119-06771 New Genuine Part |
90119-06771 |
US $1.75 |
||
| replacement | |||||
|
9011906771
|
9011906771
91651-G0645 New Genuine Part |
91651-G0645 |
US $1.05 |
||
|
9011906777
|
9011906777
90119-06777 Bolt (For Rear Differential Breather Plug Oil Deflector) |
90119-06777 |
US $1.46 |
||
| replacement | |||||
|
9011906777
|
9011906777
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161260614
|
9161260614
91612-60614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91612-60614 |
US $1.60 |
||
| replacement | |||||
|
9161260614
|
9161260614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
