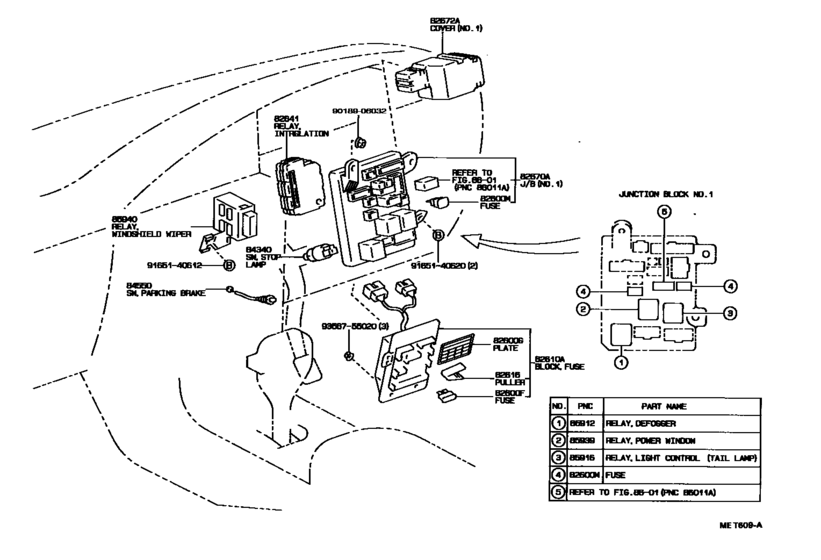

Switch & Relay & Computer ([03.1992 - 08.1996] COWL RH (9203-9608)) Diagram Toyota LEXUS ES
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- VCV10
- ENGINE
- 3VZFE
- TRANSMISSION
- ATM
- Model
- ES300
- From
- 03.1992
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 30A,NO.2 RELAY BLOCK |
90982-07011 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[03.1992 - 08.1994] VCV10 10A,NO.2 RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[03.1992 - 08.1996] VCV10 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[03.1992 - 08.1996] VCV10 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 7.5A,NO.2 RELAY BLOCK |
90982-09005 |
from US $1.03 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1993 - 08.1994] VCV10 7.5A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1993 - 08.1994] VCV10 10A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1993 - 08.1994] VCV10 15A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1993 - 08.1994] VCV10 20A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1993 - 08.1994] VCV10 30A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09013 |
from US $0.94 |
||
|
82600G
|
82600G
82683-33021 Plate, Caution(For Fuse)[03.1992 - 08.1993] VCV10 |
82683-33021 |
US $3.93 |
||
|
82600G
|
82600G
82683-33090 Plate, Caution(For Fuse)[08.1993 - 08.1994] VCV10 |
82683-33090 |
US $3.93 |
||
|
82600G
|
82600G
82683-33120 Plate, Caution(For Fuse)[08.1994 - 08.1996] VCV10 |
82683-33120 |
US $3.64 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[03.1992 - 08.1996] VCV10 30A |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[08.1993 - 08.1996] VCV10 40A |
90982-10002 |
US $4.48 |
||
|
82610A
|
82610A
82610-33030 Block Assy, Fuse[03.1992 - 08.1994] VCV10 |
82610-33030 |
US $72.51 |
||
| replacement | |||||
|
82610A
|
82610A
82610-33031 Block Assy, Fuse[03.1992 - 08.1994] VCV10 |
82610-33031 |
US $72.80 |
||
|
82610A
|
82610A
82610-33031 Block Assy, Fuse[03.1992 - 08.1994] VCV10 |
82610-33031 |
US $72.80 |
||
|
82610A
|
82610A
82610-33040 Block Assy, Fuse[08.1993 - 08.1994] VCV10 |
82610-33040 |
US $72.51 |
||
|
82610A
|
82610A
82610-33060 Block Assy, Fuse[08.1994 - 08.1996] VCV10 |
82610-33060 |
US $72.51 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[03.1992 - 08.1996] VCV10 |
82616-12020 |
US $4.19 |
||
|
82641
|
82641
82641-33020 Relay, Integration No.1INTEGRATION NO.1 [03.1992 - 08.1996] VCV10 |
82641-33020 |
US $177.63 |
||
|
82670A
|
82670A
82670-33020 Block Assy, Junction, No.1[03.1992 - 08.1993] VCV10 NO.2 |
82670-33020 |
US $285.38 |
||
|
82670A
|
82670A
82670-33070 Block Assy, Junction, No.1[03.1992 - 08.1994] VCV10 NO.1 |
82670-33070 |
US $273.73 |
||
|
82670A
|
82670A
82720-33020 Block Assy, Junction, No.1[08.1993 - 08.1996] VCV10 NO.2 |
82720-33020 |
US $308.67 |
||
| replacement | |||||
|
82670A
|
82670A
82720-33040 Block Assy, Junction, No.1[08.1993 - 08.1996] VCV10 NO.2 |
82720-33040 |
US $310.13 |
||
|
82672A
|
82672A
82672-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 UPPER |
82672-33010 |
US $35.82 |
||
|
82672A
|
82672A
82672-33040
Cover, Junction Block
[03.1992 - 08.1996] VCV10 NO.3 |
82672-33040 |
— | ||
|
82672A
|
82672A
82672-33060 Cover, Junction Block[03.1992 - 08.1996] VCV10 NO.1 |
82672-33060 |
US $20.82 |
||
|
82672A
|
82672A
82672-33080 Cover, Junction Block[08.1993 - 08.1994] VCV10 NO.2 UPPER |
82672-33080 |
US $41.79 |
||
|
82672A
|
82672A
82672-33081 Cover, Junction Block[08.1994 - 08.1996] VCV10 NO.2 UPPER |
82672-33081 |
US $26.35 |
||
|
82672A
|
82672A
82674-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 LOWER |
82674-33010 |
US $27.37 |
||
|
82672A
|
82672A
82674-33020 Cover, Junction Block[08.1993 - 08.1996] VCV10 NO.2 LOWER |
82674-33020 |
US $26.56 |
||
|
84340
|
84340
84340-32110 Switch Assy, Stop Lamp[03.1992 - 08.1996] VCV10 |
84340-32110 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[03.1992 - 08.1996] VCV10 |
84340-42020 |
from US $21.28 |
||
|
84550
|
84550
84550-33030 Switch Assy, Parking Brake[03.1992 - 08.1996] VCV10 |
84550-33030 |
US $16.16 |
||
| replacement | |||||
|
84550
|
84550
84550-40010 Switch Assy, Parking Brake[03.1992 - 08.1996] VCV10 |
84550-40010 |
US $19.07 |
||
|
85912
|
85912
90987-02009 Relay Assy[03.1992 - 08.1996] VCV10 |
90987-02009 |
from US $32.51 |
||
|
85916
|
85916
90987-02006 Relay[03.1992 - 08.1996] VCV10 HEAD LAMP |
90987-02006 |
from US $27.28 |
||
|
85916
|
85916
90987-02009 Relay Assy[03.1992 - 08.1996] VCV10 TAIL LAMP |
90987-02009 |
from US $32.51 |
||
|
85939
|
85939
90987-02009 Relay Assy[03.1992 - 08.1996] VCV10 |
90987-02009 |
from US $32.51 |
||
|
85940
|
85940
85940-33020 Relay Assy, Windshield Wiper[03.1992 - 08.1994] VCV10 |
85940-33020 |
US $368.37 |
||
|
9018906032
|
9018906032
90189-06032 New Genuine Part |
90189-06032 |
US $1.75 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
