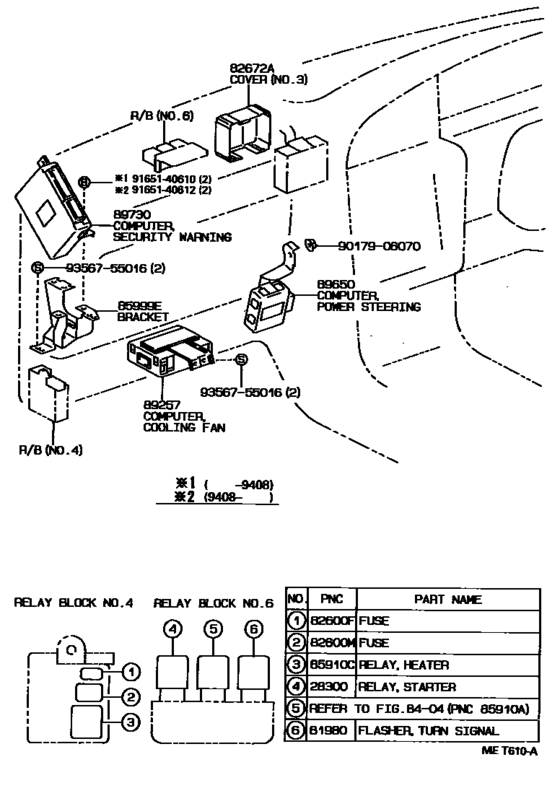

Switch & Relay & Computer ([03.1992 - ] COWL LH (9203- )) Diagram Toyota LEXUS ES
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- VCV10
- ENGINE
- 3VZFE
- TRANSMISSION
- ATM
- Model
- ES300
- From
- 03.1992
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[08.1993 - 08.1996] 3VZFE..VCV10 |
28300-10020 |
from US $53.76 |
||
|
28300
|
28300
28300-16010
Relay Assy, Starter
[03.1992 - 08.1993] 3VZFE..VCV10 |
28300-16010 |
— | ||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1993 - 08.1996] VCV10 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1993 - 08.1996] VCV10 |
81980-32010 |
from US $54.54 |
||
|
81980
|
81980
81980-50010
Flasher Assy, Turn Signal
[03.1992 - 08.1993] VCV10 |
81980-50010 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[03.1992 - 08.1993] VCV10 |
81980-32010 |
from US $54.54 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 30A,NO.2 RELAY BLOCK |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[03.1992 - 08.1994] VCV10 10A,NO.2 RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[03.1992 - 08.1996] VCV10 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[03.1992 - 08.1996] VCV10 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[03.1992 - 08.1993] VCV10 7.5A,NO.2 RELAY BLOCK |
90982-09005 |
from US $0.99 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.1993 - 08.1994] VCV10 7.5A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.1993 - 08.1994] VCV10 10A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09009 |
US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.1993 - 08.1994] VCV10 15A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1993 - 08.1994] VCV10 20A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.1993 - 08.1994] VCV10 30A,MINI FUSE,NO.2 RELAY BLOCK |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[03.1992 - 08.1996] VCV10 30A |
90982-10001 |
from US $3.45 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[08.1993 - 08.1996] VCV10 40A |
90982-10002 |
US $4.48 |
||
|
82672A
|
82672A
82672-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 UPPER |
82672-33010 |
US $35.82 |
||
|
82672A
|
82672A
82672-33040
Cover, Junction Block
[03.1992 - 08.1996] VCV10 NO.3 |
82672-33040 |
— | ||
|
82672A
|
82672A
82672-33060 Cover, Junction Block[03.1992 - 08.1996] VCV10 NO.1 |
82672-33060 |
US $20.82 |
||
|
82672A
|
82672A
82672-33080 Cover, Junction Block[08.1993 - 08.1994] VCV10 NO.2 UPPER |
82672-33080 |
US $41.79 |
||
|
82672A
|
82672A
82672-33081 Cover, Junction Block[08.1994 - 08.1996] VCV10 NO.2 UPPER |
82672-33081 |
US $26.35 |
||
|
82672A
|
82672A
82674-33010 Cover, Junction Block[03.1992 - 08.1993] VCV10 NO.2 LOWER |
82674-33010 |
US $27.37 |
||
|
82672A
|
82672A
82674-33020 Cover, Junction Block[08.1993 - 08.1996] VCV10 NO.2 LOWER |
82674-33020 |
US $26.56 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[03.1992 - 08.1996] VCV10 |
90987-04002 |
from US $25.27 |
||
|
85999E
|
85999E
85999-33090 Bracket, Relay[03.1992 - 08.1993] VCV10 |
85999-33090 |
US $18.20 |
||
|
89257
|
89257
89257-33010 Computer, Cooling Fan[03.1992 - 08.1996] VCV10 |
89257-33010 |
US $292.66 |
||
|
89650
|
89650
89650-33030 Computer Assy, Power SteeringPOWER STEERING [03.1992 - 08.1993] VCV10 |
89650-33030 |
US $298.48 |
||
|
89650
|
89650
89650-33040 Computer Assy, Power SteeringPOWER STEERING [08.1993 - 08.1996] VCV10 |
89650-33040 |
US $299.94 |
||
|
89730
|
89730
89730-33030 Computer Assy, Security WarningSECURITY WARNING [03.1992 - 08.1993] VCV10 |
89730-33030 |
US $457.18 |
||
|
89730
|
89730
89730-33060 Computer Assy, Security WarningSECURITY WARNING [08.1993 - 08.1994] VCV10 |
89730-33060 |
US $457.18 |
||
|
89730
|
89730
89730-33090 Computer Assy, Security WarningSECURITY WARNING [08.1994 - 08.1996] VCV10 |
89730-33090 |
US $564.93 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
