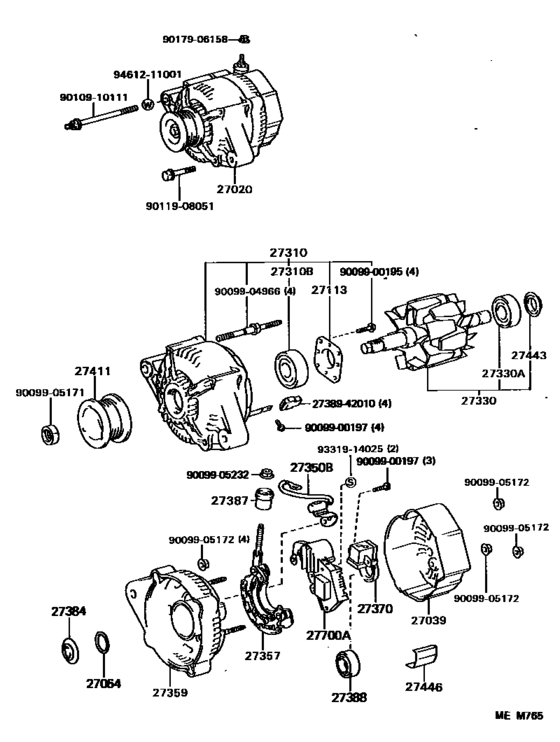

Alternator ([06.1989 - ] 12V 80A (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-62040 Alternator Assy[06.1989 - 07.1991] 2VZFE..VZV21 12V 80A |
27060-62040 |
US $1,659.84 |
||
|
27039
|
27039
27039-42010
Cover, Alternator Rear End
[06.1989 - 07.1991] 2VZFE..VZV21 |
27039-42010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16310
Cover, Alternator Rear End
[06.1989 - 07.1991] 2VZFE..VZV21 |
27039-16310 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[06.1989 - 07.1991] 2VZFE..VZV21 |
27064-42010 |
from US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[06.1989 - 07.1991] 2VZFE..VZV21 |
27312-42010 |
— | ||
|
27310
|
27310
27310-62040
Frame Assy, Drive End, Alternator
[06.1989 - 07.1991] 2VZFE..VZV21 |
27310-62040 |
— | ||
|
27310B
|
27310B
90099-10160
Bearing(For Alternator Drive End Frame)
[06.1989 - 07.1991] 2VZFE..VZV21 |
90099-10160 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[06.1989 - 07.1991] 2VZFE..VZV21 |
90099-10219 |
from US $16.57 |
||
|
27330
|
27330
27330-42010
Rotor Assy, Alternator
[06.1989 - 12.1990] 2VZFE..VZV21 |
27330-42010 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[06.1989 - 12.1990] 2VZFE..VZV21 |
27330-16390 |
US $132.79 |
||
|
27330
|
27330
27330-76030
Rotor Assy, Alternator
[12.1990 - 07.1991] 2VZFE..VZV21 |
27330-76030 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[12.1990 - 07.1991] 2VZFE..VZV21 |
27330-16390 |
US $132.79 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[06.1989 - 07.1991] 2VZFE..VZV21 |
90099-10140 |
from US $9.43 |
||
|
27350B
|
27350B
90099-52101 Condenser, Alternator[06.1989 - 07.1991] 2VZFE..VZV21 |
90099-52101 |
US $9.61 |
||
|
27357
|
27357
27357-62040
Holder, Alternator, W/rectifier
[06.1989 - 07.1991] 2VZFE..VZV21 |
27357-62040 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-74160
Holder, Alternator, W/rectifier
[06.1989 - 07.1991] 2VZFE..VZV21 |
27357-74160 |
— | ||
|
27359
|
27359
27359-42010
Frame, Alternator Rectifier End
[06.1989 - 07.1991] 2VZFE..VZV21 |
27359-42010 |
— | ||
| replacement | |||||
|
27359
|
27359
27359-74330
Frame, Alternator Rectifier End
[06.1989 - 07.1991] 2VZFE..VZV21 |
27359-74330 |
— | ||
|
27370
|
27370
27370-42010
Holder Assy, Alternator Brush
[06.1989 - 07.1991] 2VZFE..VZV21 |
27370-42010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[06.1989 - 07.1991] 2VZFE..VZV21 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-42010
Washer
[06.1989 - 07.1991] 2VZFE..VZV21 |
27384-42010 |
— | ||
| replacement | |||||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[06.1989 - 07.1991] 2VZFE..VZV21 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42020
Insulator, Terminal
[06.1989 - 07.1991] 2VZFE..VZV21 |
27387-42020 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[06.1989 - 07.1991] 2VZFE..VZV21 |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-50030
Pulley, Alternator
[06.1989 - 07.1991] 2VZFE..VZV21 |
27411-50030 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[06.1989 - 07.1991] 2VZFE..VZV21 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-62012
Clip, Alternator Cord
[06.1989 - 07.1991] 2VZFE..VZV21 |
27446-62012 |
— | ||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[06.1989 - 07.1991] 2VZFE..VZV21 |
27700-70030 |
US $263.54 |
||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010910111
|
9010910111
90109-10111
New Genuine Part
|
90109-10111 |
— | ||
|
9011908051
|
9011908051
90119-08051
New Genuine Part
|
90119-08051 |
— | ||
| replacement | |||||
|
9011908051
|
9011908051
90129-08010 New Genuine Part |
90129-08010 |
US $3.35 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
