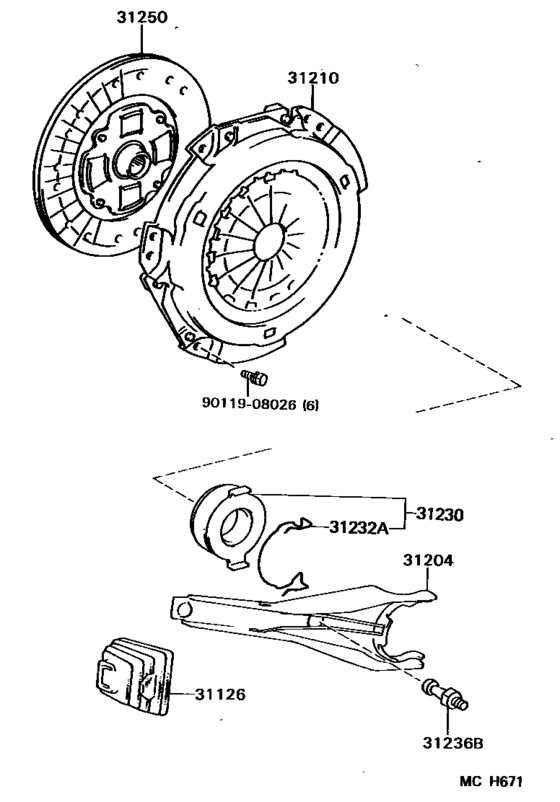

Clutch & Release Fork ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[06.1989 - 07.1991] VZV21..5F |
31126-32010 |
US $14.56 |
||
|
31204
|
31204
31204-20100 Fork Sub-Assy, Clutch Release[06.1989 - 07.1991] VZV21..5F |
31204-20100 |
from US $30.40 |
||
|
31210
|
31210
31210-32091 Cover Assy, ClutchCLUTCH [06.1989 - 07.1991] VZV21..5F |
31210-32091 |
US $248.98 |
||
| replacement | |||||
|
31210
|
31210
31210-42021 Cover Assy, ClutchCLUTCH [06.1989 - 07.1991] VZV21..5F |
31210-42021 |
from US $193.65 |
||
|
31230
|
31230
31230-20170 Bearing Assy, Clutch Release[06.1989 - 07.1991] VZV21..5F |
31230-20170 |
from US $46.51 |
||
|
31232A
|
31232A
31232-20020 Clip, Release Bearing Hub[06.1989 - 07.1991] VZV21..5F |
31232-20020 |
from US $1.52 |
||
|
31236B
|
31236B
31236-20060 Ball, Release Fork[06.1989 - 07.1991] VZV21..5F |
31236-20060 |
US $8.32 |
||
|
31250
|
31250
31250-20140 Disc Assy, Clutch[06.1989 - 07.1991] VZV21..5F |
31250-20140 |
US $228.59 |
||
| replacement | |||||
|
31250
|
31250
31250-33032 Disc Assy, Clutch[06.1989 - 07.1991] VZV21..5F |
31250-33032 |
from US $171.07 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
