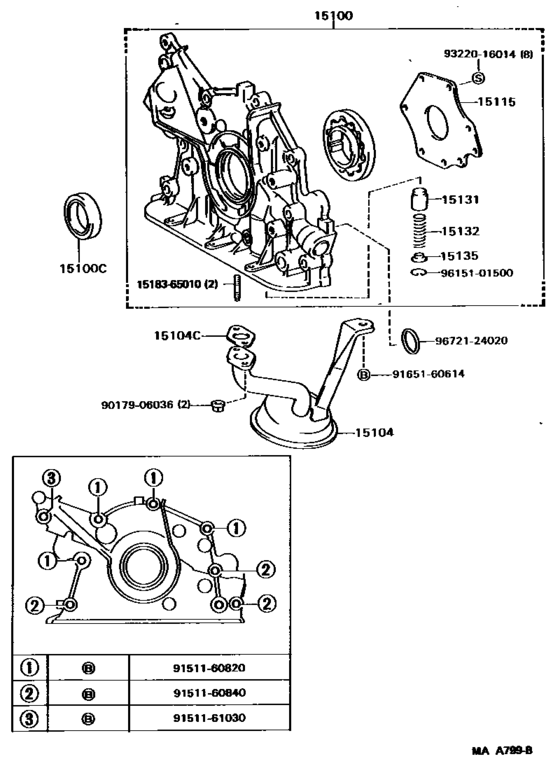

Engine Oil Pump ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-62020 Pump Assy, Oil[06.1989 - 07.1991] 2VZFE..VZV21 |
15100-62020 |
US $264.99 |
||
|
15100C
|
15100C
90311-40006 Seal(For Oil Pump)[06.1989 - 11.1989] 2VZFE..VZV21 |
90311-40006 |
US $5.82 |
||
| replacement | |||||
|
15100C
|
15100C
90311-40022 Oil Seal (For Oil Pump)[06.1989 - 11.1989] 2VZFE..VZV21 |
90311-40022 |
from US $7.52 |
||
|
15100C
|
15100C
90311-40013
Oil Seal (For Oil Pump)
[11.1989 - 07.1991] 2VZFE..VZV21 |
90311-40013 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-40022 Oil Seal (For Oil Pump)[11.1989 - 07.1991] 2VZFE..VZV21 |
90311-40022 |
from US $7.52 |
||
|
15104
|
15104
15104-62010 Strainer Sub-Assy, Oil[06.1989 - 07.1991] 2VZFE..VZV21 |
15104-62010 |
US $59.55 |
||
|
15104C
|
15104C
15147-62020 Gasket(For Oil Strainer)[06.1989 - 07.1991] 2VZFE..VZV21 |
15147-62020 |
US $6.81 |
||
|
15115
|
15115
15115-62010 Cover, Oil Pump[06.1989 - 07.1991] 2VZFE..VZV21 |
15115-62010 |
US $123.76 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[06.1989 - 07.1991] 2VZFE..VZV21 |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-62010 Spring, Oil Pump Relief Valve[06.1989 - 07.1991] 2VZFE..VZV21 |
15132-62010 |
US $3.93 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[06.1989 - 07.1991] 2VZFE..VZV21 |
15135-15010 |
US $4.80 |
||
|
1518365010
|
1518365010
15183-65010 Bolt, Union(for Oil Pump) |
15183-65010 |
US $4.80 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
|
9672124020
|
9672124020
96721-24020 O-Ring |
96721-24020 |
from US $1.64 |
||
