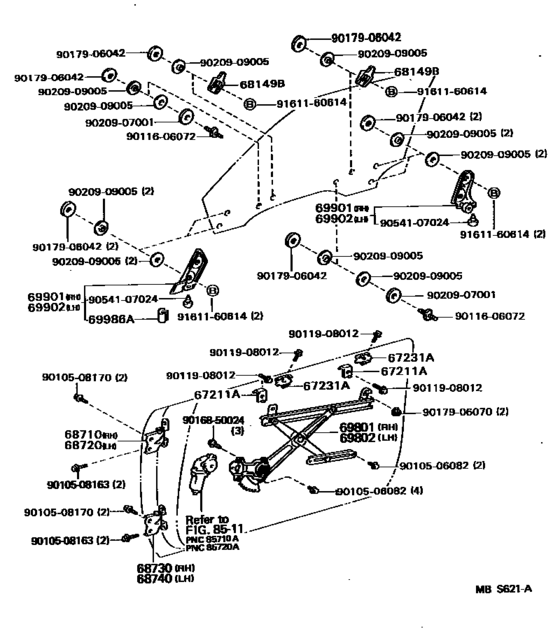

Front Door Window Regulator & Hinge ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67211A
|
67211A
67211-32030 Stop, Front Door Window, Upper[06.1989 - 07.1991] VZV21 |
67211-32030 |
US $6.99 |
||
|
67231A
|
67231A
67231-20020
Support, Front Door Trim
[06.1989 - 07.1991] VZV21 RH |
67231-20020 |
— | ||
|
67231A
|
67231A
67232-20020
Support, Front Door Trim
[06.1989 - 07.1991] VZV21 LH |
67232-20020 |
— | ||
|
68149B
|
68149B
68149-20010
Stabilizer, Front Door Glass Male
[06.1989 - 07.1991] VZV21 |
68149-20010 |
— | ||
|
68710
|
68710
68710-32030 Hinge Assy, Front Door, Upper RhFRONT DOOR, UPPER RH [06.1989 - 07.1991] VZV21 |
68710-32030 |
US $41.35 |
||
|
68720
|
68720
68720-32030
Hinge Assy, Front Door, Upper Lh
[06.1989 - 07.1991] VZV21 |
68720-32030 |
— | ||
|
68730
|
68730
68730-16020 Hinge Assy, Front Door, Lower RhFRONT DOOR, LOWER RH [06.1989 - 07.1991] VZV21 |
68730-16020 |
US $41.35 |
||
|
68740
|
68740
68740-16020
Hinge Assy, Front Door, Lower Lh
[06.1989 - 07.1991] VZV21 |
68740-16020 |
— | ||
|
69801
|
69801
69801-32050 Regulator Sub-Assy, Front Door Window, Rh[06.1989 - 07.1991] VZV21 |
69801-32050 |
US $91.73 |
||
|
69802
|
69802
69802-32060 Regulator Sub-Assy, Front Door Window, Lh[06.1989 - 07.1991] VZV21 |
69802-32060 |
US $91.73 |
||
|
69901
|
69901
69901-32020 Channel Sub-Assy, Front Door Glass, Rh[06.1989 - 07.1991] VZV21 FRONT |
69901-32020 |
US $12.67 |
||
|
69901
|
69901
69903-32010 Channel Sub-Assy, Front Door Glass, Rh[06.1989 - 07.1991] VZV21 REAR |
69903-32010 |
US $12.67 |
||
|
69902
|
69902
69902-32010 Channel Sub-Assy, Front Door Glass, Lh[06.1989 - 07.1991] VZV21 FRONT |
69902-32010 |
US $12.67 |
||
|
69902
|
69902
69904-32010 Channel Sub-Assy, Front Door Glass, Lh[06.1989 - 07.1991] VZV21 REAR |
69904-32010 |
US $12.67 |
||
|
69986A
|
69986A
69986-24010 Piece, Front Door Glass Guide[06.1989 - 10.1990] VZV21 |
69986-24010 |
US $8.59 |
||
|
69986A
|
69986A
69986-32020 Piece, Front Door Glass GuideFRONT DOOR GLASS GUIDE [10.1990 - 07.1991] VZV21 |
69986-32020 |
US $7.86 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9010508163
|
9010508163
90105-08163
New Genuine Part
|
90105-08163 |
— | ||
| replacement | |||||
|
9010508163
|
9010508163
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.21 |
||
|
9010508170
|
9010508170
90105-08170 New Genuine Part |
90105-08170 |
US $1.89 |
||
| replacement | |||||
|
9010508170
|
9010508170
90105-08031 Bolt |
90105-08031 |
US $1.76 |
||
|
9011606072
|
9011606072
90116-06072
New Genuine Part
|
90116-06072 |
— | ||
|
9011908012
|
9011908012
90119-08012 New Genuine Part |
90119-08012 |
US $1.46 |
||
| replacement | |||||
|
9011908012
|
9011908012
91651-40812 New Genuine Part |
91651-40812 |
US $1.24 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017906042
|
9017906042
90179-06042 New Genuine Part |
90179-06042 |
US $4.72 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020907001
|
9020907001
90209-07001 New Genuine Part |
90209-07001 |
US $1.46 |
||
|
9020909005
|
9020909005
90209-09005 New Genuine Part |
90209-09005 |
US $1.12 |
||
|
9054107024
|
9054107024
90541-07024
Cushion, Window Regulator Door Glass Braket, No.1
|
90541-07024 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
