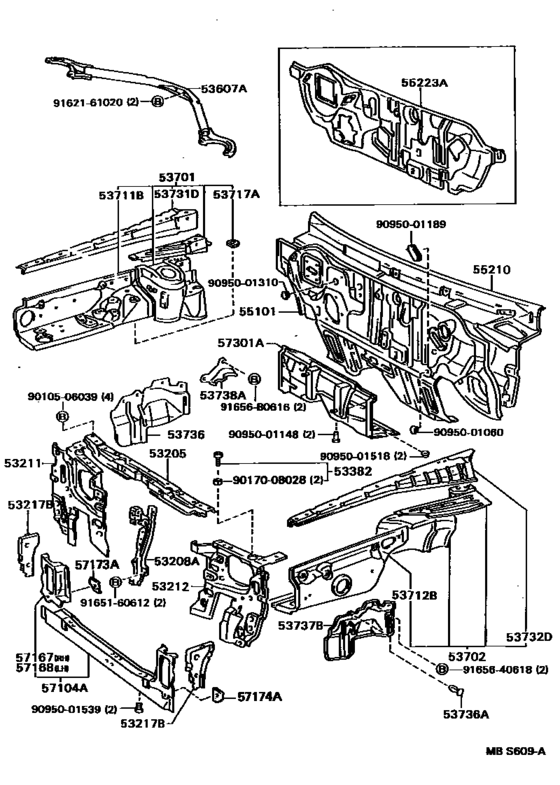

Front Fender Apron & Dash Panel ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53205
|
53205
53205-32020 Support Sub-Assy, Radiator, Upper[06.1989 - 07.1991] VZV21 |
53205-32020 |
US $115.02 |
||
|
53211
|
53211
53211-32900 Support, Radiator, Rh[06.1989 - 07.1991] VZV21 |
53211-32900 |
US $115.02 |
||
|
53212
|
53212
53212-32900 Support, Radiator, Lh[06.1989 - 07.1991] VZV21 |
53212-32900 |
US $115.02 |
||
|
53217B
|
53217B
53217-32030 Brace, Radiator Support To Crossmember[06.1989 - 07.1991] VZV21 RH |
53217-32030 |
US $23 |
||
|
53217B
|
53217B
53218-32030 Brace, Radiator Support To Crossmember[06.1989 - 07.1991] VZV21 LH |
53218-32030 |
US $23 |
||
|
53382
|
53382
53382-32020
Bumper, Hood, Front
[06.1989 - 07.1991] VZV21 |
53382-32020 |
— | ||
|
53607A
|
53607A
53607-32020 Brace Sub-Assy, Front Suspension, Upper CenterFRONT SUSPENSION, UPPER CENTER [06.1989 - 07.1991] VZV21 |
53607-32020 |
US $133.95 |
||
|
53701
|
53701
53701-32914 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [06.1989 - 07.1991] VZV21 |
53701-32914 |
US $445.54 |
||
|
53702
|
53702
53702-32911 Apron Sub-Assy, Front Fender, Lh[06.1989 - 07.1991] VZV21 |
53702-32911 |
US $445.54 |
||
|
53711B
|
53711B
53711-32071 Apron, Front Fender, Front Rh[06.1989 - 07.1991] VZV21 |
53711-32071 |
US $123.76 |
||
| replacement | |||||
|
53711B
|
53711B
53711-32080 Apron, Front Fender, Front RhFRONT FENDER, FRONT RH [06.1989 - 07.1991] VZV21 |
53711-32080 |
US $123.76 |
||
|
53712B
|
53712B
53712-32030 Apron, Front Fender, Front Lh[06.1989 - 07.1991] VZV21 |
53712-32030 |
US $123.76 |
||
|
53717A
|
53717A
53717-32010 Plate, Fender Apron[06.1989 - 07.1991] VZV21 |
53717-32010 |
US $8.30 |
||
|
53731D
|
53731D
53731-32020 Member, Front Apron To Cowl Side, Upper Rh[06.1989 - 07.1991] VZV21 |
53731-32020 |
US $90.27 |
||
|
53732D
|
53732D
53732-32020 Member, Front Apron To Cowl Side, Upper Lh[06.1989 - 07.1991] VZV21 |
53732-32020 |
US $90.27 |
||
|
53736
|
53736
53736-32020
Seal, Front Fender Apron, Rh
[06.1989 - 07.1991] VZV21 |
53736-32020 |
— | ||
|
53736A
|
53736A
90467-09063 Clip(For Front Fender Apron Seal)[06.1989 - 07.1991] VZV21 |
90467-09063 |
US $1.60 |
||
|
53737B
|
53737B
53737-32020 Seal, Front Fender Apron, Lh[06.1989 - 07.1991] VZV21 |
53737-32020 |
US $61.88 |
||
|
53738A
|
53738A
53738-32020 Seal, Front Fender Apron, Rear Rh[06.1989 - 07.1991] VZV21 |
53738-32020 |
US $11.36 |
||
|
55101
|
55101
55101-32192 Panel Sub-Assy, DashDASH [06.1989 - 07.1991] VZV21..5F |
55101-32192 |
US $385.84 |
||
|
55210
|
55210
55210-32040 Insulator Assy, Dash PanelDASH PANEL [06.1989 - 07.1991] VZV21 |
55210-32040 |
US $343.62 |
||
|
55223A
|
55223A
55223-32060 Insulator, Dash Panel, OuterDASH PANEL, OUTER [06.1989 - 07.1991] VZV21 |
55223-32060 |
US $219.86 |
||
|
57104A
|
57104A
57104-32905 Member Sub-Assy, Front Cross[06.1989 - 07.1991] VZV21 |
57104-32905 |
US $279.55 |
||
|
57167
|
57167
57167-32030 Gusset, Front Crossmember, Upper Rh[06.1989 - 07.1991] VZV21 |
57167-32030 |
US $29.99 |
||
|
57168
|
57168
57168-32030 Gusset, Front Crossmember, Upper Lh[06.1989 - 07.1991] VZV21 |
57168-32030 |
US $29.99 |
||
|
57173A
|
57173A
57173-32020 Reinforcement, Front Crossmember, No.3 Rh[06.1989 - 07.1991] VZV21 |
57173-32020 |
US $5.39 |
||
|
57174A
|
57174A
57174-32010 Reinforcement, Front Crossmember, No.3 Lh[06.1989 - 07.1991] VZV21 |
57174-32010 |
US $5.39 |
||
|
57301A
|
57301A
57301-32060 Member Sub-Assy, Steering Gear Box SupportSTEERING GEAR BOX SUPPORT [06.1989 - 07.1991] VZV21..5F |
57301-32060 |
US $244.61 |
||
|
91656B0616
|
91656B0616
91656-B0616
New Genuine Part
|
91656-B0616 |
— | ||
| replacement | |||||
|
91656B0616
|
91656B0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9010506039
|
9010506039
90105-06039
New Genuine Part
|
90105-06039 |
— | ||
|
9017008028
|
9017008028
90170-08028 Nut |
90170-08028 |
US $3.11 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001189
|
9095001189
90950-01189 Plug, Hole, No.3(For Dash Panel) |
90950-01189 |
US $3.14 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.38 |
||
|
9162161020
|
9162161020
91621-61020
Bolt(For Transaxle & Engine Setting)
|
91621-61020 |
— | ||
| replacement | |||||
|
9162161020
|
9162161020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $1.92 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
