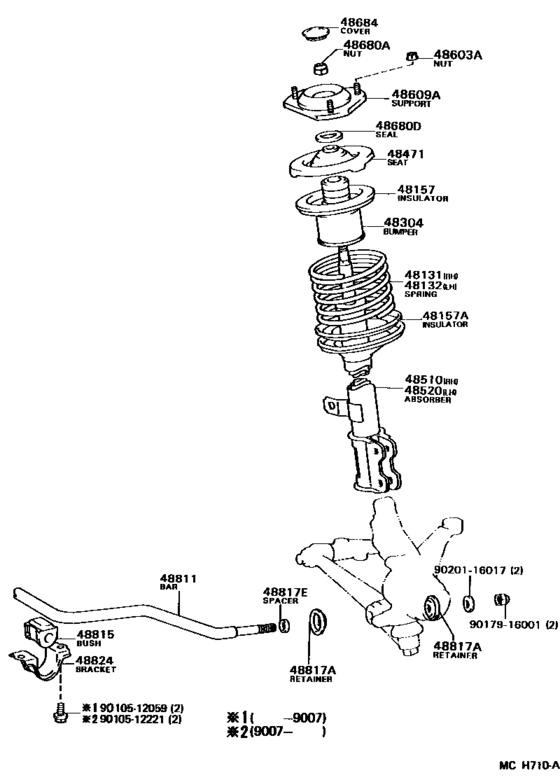

Front Spring & Shock Absorber ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-32780
Spring, Front Coil, Rh
[06.1989 - 07.1991] VZV21..5F |
48131-32780 |
— | ||
|
48132
|
48132
48131-32780
Spring, Front Coil, Rh
[06.1989 - 07.1991] VZV21..5F |
48131-32780 |
— | ||
|
48157
|
48157
48157-32020
Insulator, Front Coil Spring, Upper
[06.1989 - 07.1991] VZV21 |
48157-32020 |
— | ||
|
48157A
|
48157A
48158-32020
Insulator, Front Coil Spring, Lower
[06.1989 - 07.1991] VZV21 |
48158-32020 |
— | ||
|
48304
|
48304
48304-32050 Bumper Sub-Assy, Front Spring, No.1FRONT SPRING, NO.1 [06.1989 - 07.1991] VZV21 |
48304-32050 |
US $18.20 |
||
|
48471
|
48471
48044-32020
Seat, Front Spring, Upper
[06.1989 - 07.1991] VZV21 |
48044-32020 |
— | ||
|
48510
|
48510
48510-32150 Absorber Assy, Shock, Front Rh[06.1989 - 11.1990] VZV21 |
48510-32150 |
US $361.09 |
||
| replacement | |||||
|
48510
|
48510
48510-32083
Absorber Assy, Shock, Front Rh
[06.1989 - 11.1990] VZV21 |
48510-32083 |
— | ||
|
48510
|
48510
48510-32151 Absorber Assy, Shock, Front Rh[11.1990 - 07.1991] VZV21 |
48510-32151 |
US $331.97 |
||
| replacement | |||||
|
48510
|
48510
48510-32083
Absorber Assy, Shock, Front Rh
[11.1990 - 07.1991] VZV21 |
48510-32083 |
— | ||
|
48520
|
48520
48520-32150 Absorber Assy, Shock, Front Lh[06.1989 - 11.1990] VZV21 |
48520-32150 |
US $361.09 |
||
| replacement | |||||
|
48520
|
48520
48520-32083
Absorber Assy, Shock, Front Lh
[06.1989 - 11.1990] VZV21 |
48520-32083 |
— | ||
|
48520
|
48520
48520-32151 Absorber Assy, Shock, Front Lh[11.1990 - 07.1991] VZV21 |
48520-32151 |
US $331.97 |
||
| replacement | |||||
|
48520
|
48520
48520-32083
Absorber Assy, Shock, Front Lh
[11.1990 - 07.1991] VZV21 |
48520-32083 |
— | ||
|
48603A
|
48603A
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting)[06.1989 - 08.1989] VZV21 |
90179-10095 |
US $1.76 |
||
|
48603A
|
48603A
90179-10143 Nut(For Front Suspension Support)[08.1989 - 06.1990] VZV21 |
90179-10143 |
US $3.20 |
||
|
48609A
|
48609A
48609-32080 Support Sub-Assy, Front SuspensionFRONT SUSPENSION [06.1989 - 07.1991] VZV21 |
48609-32080 |
from US $75.71 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[06.1989 - 07.1991] VZV21 |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[06.1989 - 07.1991] VZV21 |
90303-22049 |
from US $3.88 |
||
|
48684
|
48684
48684-32010 Cover, Bearing Dust[06.1989 - 07.1991] VZV21 |
48684-32010 |
from US $7.16 |
||
|
48811
|
48811
48811-32120 Bar, Stabilizer, Front[06.1989 - 10.1989] VZV21 |
48811-32120 |
US $253.34 |
||
| replacement | |||||
|
48811
|
48811
48811-32220 Bar, Stabilizer, FrontSTABILIZER, FRONT [06.1989 - 10.1989] VZV21 |
48811-32220 |
US $253.34 |
||
|
48811
|
48811
48811-32180 Bar, Stabilizer, FrontSTABILIZER, FRONT [10.1989 - 06.1990] VZV21 |
48811-32180 |
US $228.59 |
||
|
48811
|
48811
48811-32220 Bar, Stabilizer, FrontSTABILIZER, FRONT [09.1990 - 07.1991] VZV21 |
48811-32220 |
US $253.34 |
||
|
48815
|
48815
48815-32060
Bush, Front Stabilizer Bar, No.1
[06.1989 - 03.1991] VZV21 |
48815-32060 |
— | ||
| replacement | |||||
|
48815
|
48815
48815-32120 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [06.1989 - 03.1991] VZV21 |
48815-32120 |
US $13.79 |
||
|
48815
|
48815
48815-32120 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [03.1991 - 07.1991] VZV21 |
48815-32120 |
US $13.79 |
||
|
48817A
|
48817A
48667-32010 Retainer, Cushion, No.1(For Front Stabilizer Bar)[06.1990 - 08.1990] VZV21 |
48667-32010 |
US $14.12 |
||
| replacement | |||||
|
48817A
|
48817A
48667-32011 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [06.1990 - 08.1990] VZV21 |
48667-32011 |
US $14.12 |
||
|
48817A
|
48817A
48667-32011 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [08.1990 - 07.1991] VZV21 |
48667-32011 |
US $14.12 |
||
|
48817A
|
48817A
90948-02115 Retainer, Cushion, No.1(For Front Stabilizer Bar)[06.1989 - 06.1990] VZV21 LH |
90948-02115 |
US $5.39 |
||
| replacement | |||||
|
48817A
|
48817A
48667-32011 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [06.1989 - 06.1990] VZV21 LH |
48667-32011 |
US $14.12 |
||
|
48817A
|
48817A
90948-02124 Retainer, Cushion, No.1(For Front Stabilizer Bar)[06.1989 - 06.1990] VZV21 RH |
90948-02124 |
US $14.41 |
||
| replacement | |||||
|
48817A
|
48817A
48667-32011 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [06.1989 - 06.1990] VZV21 RH |
48667-32011 |
US $14.12 |
||
|
48817E
|
48817E
90560-16005
Spacer(For Stabilizer Bar)
[06.1989 - 09.1990] VZV21 |
90560-16005 |
— | ||
|
48817E
|
48817E
90560-16014 Spacer(For Stabilizer Bar)[09.1990 - 07.1991] VZV21 |
90560-16014 |
US $2.48 |
||
|
48817E
|
48817E
90560-16015 Spacer(For Stabilizer Bar)[09.1990 - 07.1991] VZV21 |
90560-16015 |
US $2.48 |
||
|
48817E
|
48817E
90560-16016 Spacer(For Stabilizer Bar)[09.1990 - 07.1991] VZV21 |
90560-16016 |
US $3.35 |
||
|
48817E
|
48817E
90560-16017 Spacer(For Stabilizer Bar)[09.1990 - 07.1991] VZV21 |
90560-16017 |
US $3.35 |
||
|
48824
|
48824
48824-32030
Bracket, Stabilizer, Front
[06.1989 - 06.1990] VZV21 |
48824-32030 |
— | ||
| replacement | |||||
|
48824
|
48824
48824-32040
Bracket, Stabilizer, Front
[06.1989 - 06.1990] VZV21 |
48824-32040 |
— | ||
|
48824
|
48824
48824-32040
Bracket, Stabilizer, Front
[06.1990 - 07.1991] VZV21 |
48824-32040 |
— | ||
|
9010512059
|
9010512059
90105-12059 Bolt (For Front Lower Ball Joint) |
90105-12059 |
US $4.19 |
||
|
9010512221
|
9010512221
90105-12221 New Genuine Part |
90105-12221 |
US $3.49 |
||
|
9017916001
|
9017916001
90179-16001 New Genuine Part |
90179-16001 |
US $3.49 |
||
|
9020116017
|
9020116017
90201-16017 WASHER |
90201-16017 |
from US $1.93 |
||
