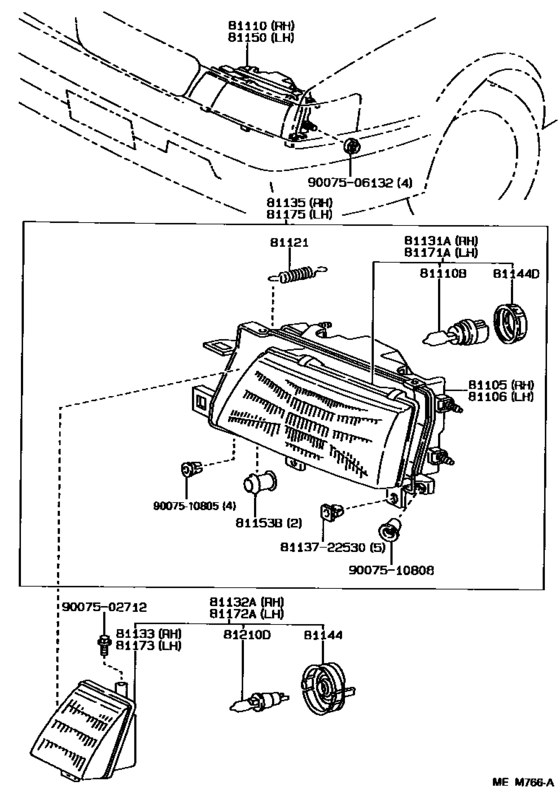

Headlamp ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-32250 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [06.1989 - 07.1991] VZV21 |
81105-32250 |
US $63.19 |
||
|
81106
|
81106
81106-32250 Housing Sub-Assy, Headlamp, LhHEADLAMP, LH [06.1989 - 07.1991] VZV21 |
81106-32250 |
US $63.19 |
||
|
81110
|
81110
81110-32250 Headlamp Assy, RhRH [06.1989 - 07.1991] VZV21 |
81110-32250 |
US $527.07 |
||
|
81110B
|
81110B
90981-13032 Bulb(For Headlamp, No.1)NO.1) [06.1989 - 07.1991] VZV21 12V 65/45W,*HAL,*WH |
90981-13032 |
from US $36.84 |
||
|
81121
|
81121
81121-1A191 Spring, Headlamp TensionHEADLAMP TENSION [06.1989 - 07.1991] VZV21 |
81121-1A191 |
US $3.35 |
||
|
81131A
|
81131A
81131-32250 Unit, Headlamp, RhHEADLAMP, RH [06.1989 - 07.1991] VZV21 |
81131-32250 |
US $435.34 |
||
|
81132A
|
81132A
81132-32250 Lamp, Fog, RhFOG, RH [06.1989 - 07.1991] VZV21 |
81132-32250 |
US $115.02 |
||
|
81133
|
81133
81133-32250 Unit Assy, Fog, RhFOG, RH [06.1989 - 07.1991] VZV21 |
81133-32250 |
US $68.58 |
||
|
81135
|
81135
81130-32250 Unit Assy, Headlamp, RhHEADLAMP, RH [06.1989 - 07.1991] VZV21 |
81130-32250 |
US $422.24 |
||
|
81144
|
81144
90075-99015 Cover, Headlamp Socket[06.1989 - 07.1991] VZV21 |
90075-99015 |
US $8.91 |
||
|
81144D
|
81144D
90075-99010 Cap, Headlamp LockingHEADLAMP LOCKING [06.1989 - 07.1991] VZV21 |
90075-99010 |
US $0.87 |
||
|
81150
|
81150
81150-32250 Headlamp Assy, LhLH [06.1989 - 07.1991] VZV21 |
81150-32250 |
US $527.07 |
||
|
81153B
|
81153B
90075-10809 Bearing, HeadlampHEADLAMP [06.1989 - 07.1991] VZV21 |
90075-10809 |
US $4.08 |
||
|
81171A
|
81171A
81171-32250 Unit, Headlamp, LhHEADLAMP, LH [06.1989 - 07.1991] VZV21 |
81171-32250 |
US $435.34 |
||
|
81172A
|
81172A
81172-32250 Lamp, Fog, LhFOG, LH [06.1989 - 07.1991] VZV21 |
81172-32250 |
US $115.02 |
||
|
81173
|
81173
81173-32250 Unit Assy, Foglamp, LhFOGLAMP, LH [06.1989 - 07.1991] VZV21 |
81173-32250 |
US $68.58 |
||
|
81175
|
81175
81170-32250 Unit Assy, Headlamp, LhHEADLAMP, LH [06.1989 - 07.1991] VZV21 |
81170-32250 |
US $422.24 |
||
|
81210D
|
81210D
90981-13027 Bulb(For Headlamp, No.2)[06.1989 - 07.1991] VZV21 12V 55W,HALOGEN |
90981-13027 |
from US $8.56 |
||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
9007502712
|
9007502712
90075-02712 New Genuine Part |
90075-02712 |
US $1.75 |
||
|
9007506132
|
9007506132
90075-06132
New Genuine Part
|
90075-06132 |
— | ||
|
9007510805
|
9007510805
90075-10805 New Genuine Part |
90075-10805 |
from US $1.75 |
||
|
9007510808
|
9007510808
90075-10808 New Genuine Part |
90075-10808 |
US $2.77 |
||
