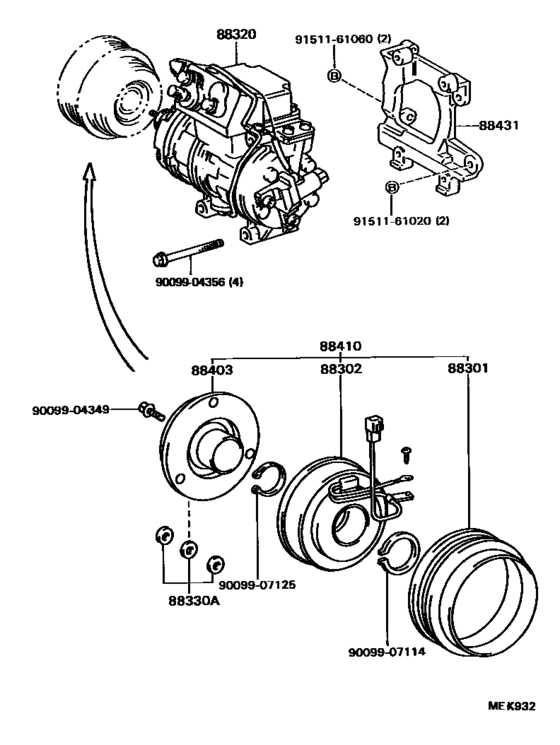

Heating & Air Conditioning - Compressor ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-32030
Rotor Sub-Assy, Magnet Clutch
[06.1989 - 02.1990] VZV21 |
88412-32030 |
— | ||
|
88301
|
88301
88412-32050
Rotor Sub-Assy, Magnet Clutch
[02.1990 - 07.1991] VZV21..USA |
88412-32050 |
— | ||
|
88302
|
88302
88411-32050
Stator Sub-Assy, Magnet Clutch
[06.1989 - 07.1991] VZV21 |
88411-32050 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-35050
Stator Sub-Assy, Magnet Clutch
[06.1989 - 07.1991] VZV21 |
88411-35050 |
— | ||
|
88320
|
88320
88320-32091
Compressor Assy, Cooler
[06.1989 - 07.1991] VZV21 |
88320-32091 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-32093
Compressor Assy, Cooler
[06.1989 - 07.1991] VZV21 |
88320-32093 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[06.1989 - 07.1991] VZV21 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[06.1989 - 07.1991] VZV21 |
88403-16011 |
US $82.47 |
||
|
88410
|
88410
88410-32050 Clutch Assy, Magnet[06.1989 - 02.1990] VZV21 |
88410-32050 |
US $592.59 |
||
|
88410
|
88410
88410-32090
Clutch Assy, Magnet
[02.1990 - 07.1991] VZV21..USA |
88410-32090 |
— | ||
|
88431
|
88431
88431-32010
Bracket, Compressor Mounting, No.1
[06.1989 - 07.1989] VZV21 |
88431-32010 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-32011
Bracket, Compressor Mounting, No.1
[06.1989 - 07.1989] VZV21 |
88431-32011 |
— | ||
|
88431
|
88431
88431-32011
Bracket, Compressor Mounting, No.1
[07.1989 - 07.1991] VZV21 |
88431-32011 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.05 |
||
|
9151161020
|
9151161020
91511-61020 Bolt(For Front Transaxle Case Cover) |
91511-61020 |
US $3.06 |
||
| replacement | |||||
|
9151161020
|
9151161020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
|
9151161060
|
9151161060
91511-61060 Bolt(For Transaxle Case & Engine Setting) |
91511-61060 |
US $3.20 |
||
| replacement | |||||
|
9151161060
|
9151161060
91512-61060 Bolt(For Transaxle Case & Engine Setting) |
91512-61060 |
US $3.52 |
||
