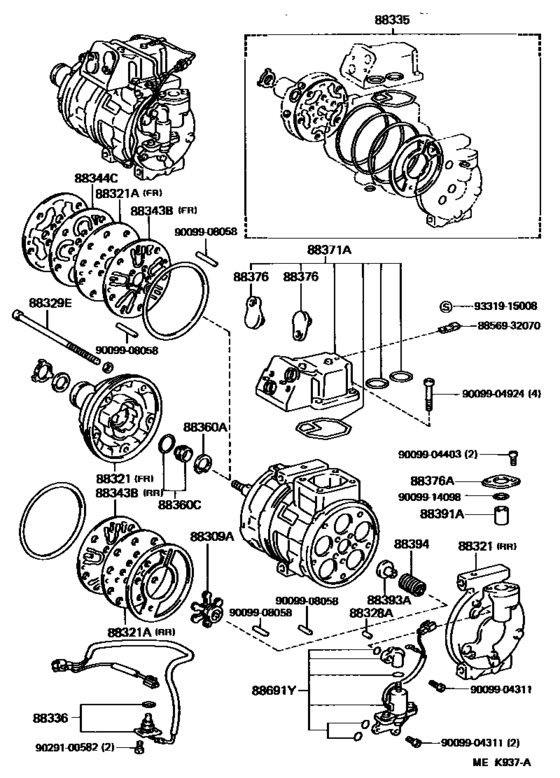

Heating & Air Conditioning - Compressor ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88309A
|
88309A
88309-32010
Pump Sub-Assy, Compressor
[06.1989 - 07.1991] VZV21 |
88309-32010 |
— | ||
|
88321
|
88321
88321-14021
Head, Cooler Compressor Cylinder
[06.1989 - 07.1991] VZV21 FRONT |
88321-14021 |
— | ||
|
88321
|
88321
88322-32030
Head, Cooler Compressor Cylinder
[06.1989 - 07.1991] VZV21 REAR |
88322-32030 |
— | ||
|
88321A
|
88321A
88341-14021
Plate Sub-Assy, Valve
[06.1989 - 07.1991] VZV21 FRONT |
88341-14021 |
— | ||
|
88321A
|
88321A
88342-32010
Plate Sub-Assy, Valve
[06.1989 - 07.1991] VZV21 REAR |
88342-32010 |
— | ||
|
88328A
|
88328A
88328-32010
Pin, Compressor
[06.1989 - 07.1991] VZV21 |
88328-32010 |
— | ||
|
88329E
|
88329E
90099-04437 Bolt, Compressor, No.1COMPRESSOR, NO.1 [06.1989 - 07.1991] VZV21 |
90099-04437 |
US $2.48 |
||
|
88335
|
88335
88335-32020
Gasket Kit, Overhaul
[06.1989 - 07.1991] VZV21 |
88335-32020 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B040
Gasket Kit, Overhaul
[06.1989 - 07.1991] VZV21 |
88335-2B040 |
— | ||
|
88336
|
88336
88336-32040
Sensor, Compressor
[06.1989 - 07.1991] VZV21 |
88336-32040 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[06.1989 - 07.1991] VZV21 FRONT |
88343-14020 |
— | ||
|
88343B
|
88343B
88343-32010
Reed, Suction Valve
[06.1989 - 07.1991] VZV21 REAR |
88343-32010 |
— | ||
|
88344C
|
88344C
88344-14021
Reed Sub-Assy, Valve
[06.1989 - 07.1991] VZV21 |
88344-14021 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[06.1989 - 07.1991] VZV21 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[06.1989 - 07.1991] VZV21 |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[06.1989 - 07.1991] VZV21 |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-32090
Valve, Suction
[06.1989 - 07.1991] VZV21 |
88371-32090 |
— | ||
|
88376
|
88376
88376-17020
Cap, Blind
[06.1989 - 07.1991] VZV21 SUCTION |
88376-17020 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[06.1989 - 07.1991] VZV21 DISCHARGE |
88376-22020 |
— | ||
|
88376A
|
88376A
88376-32010
Cap, Compressor
[06.1989 - 07.1991] VZV21 |
88376-32010 |
— | ||
|
88391A
|
88391A
88391-32010 Valve, FloatFLOAT [06.1989 - 07.1991] VZV21 |
88391-32010 |
US $8.88 |
||
|
88393A
|
88393A
88393-32010
Plate, Stopper
[06.1989 - 07.1991] VZV21 |
88393-32010 |
— | ||
|
88394
|
88394
88394-32010
Spring, Compressor
[06.1989 - 07.1991] VZV21 |
88394-32010 |
— | ||
|
88691Y
|
88691Y
88691-32080
Valve, Magnet
[06.1989 - 07.1991] VZV21 |
88691-32080 |
— | ||
|
8856932070
|
8856932070
88569-32070
Clamp (for Cooler Relay)
|
88569-32070 |
— | ||
|
9009904311
|
9009904311
90099-04311
New Genuine Part
|
90099-04311 |
— | ||
|
9009904403
|
9009904403
90099-04403
New Genuine Part
|
90099-04403 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9009914098
|
9009914098
90099-14098
New Genuine Part
|
90099-14098 |
— | ||
|
9029100582
|
9029100582
90291-00582
New Genuine Part
|
90291-00582 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
