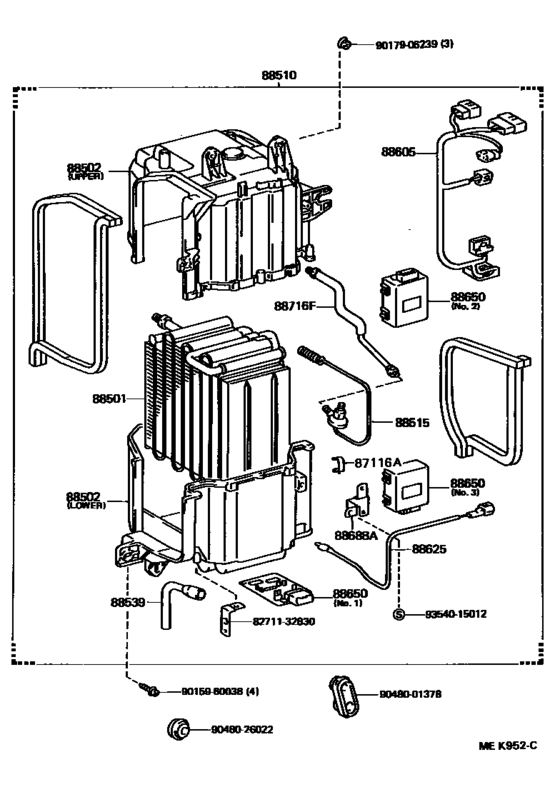

Heating & Air Conditioning - Cooler Unit ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-32050
Evaporator Sub-Assy, Cooler, No.1
[06.1989 - 07.1991] VZV21 |
88501-32050 |
— | ||
|
88502
|
88502
88502-32050
Case Sub-Assy, Cooling Unit
[06.1989 - 06.1990] VZV21 UPPER |
88502-32050 |
— | ||
| replacement | |||||
|
88502
|
88502
88502-32100
Case Sub-Assy, Cooling Unit
[06.1989 - 06.1990] VZV21 UPPER |
88502-32100 |
— | ||
|
88502
|
88502
88502-32060
Case Sub-Assy, Cooling Unit
[06.1989 - 06.1990] VZV21 LOWER |
88502-32060 |
— | ||
|
88510
|
88510
88510-32301
Unit Assy, Cooler
[06.1989 - 06.1990] VZV21 |
88510-32301 |
— | ||
|
88515
|
88515
88515-16040
Valve, Cooler Expansion
[06.1989 - 07.1991] VZV21 |
88515-16040 |
— | ||
|
88539
|
88539
88539-22110
Hose, Cooler Unit Drain, No.1
[06.1989 - 07.1991] VZV21 |
88539-22110 |
— | ||
|
88605
|
88605
88605-32470
Harness Sub-Assy, Cooler Wiring, No.1
[06.1989 - 06.1990] VZV21 |
88605-32470 |
— | ||
|
88625
|
88625
88625-32040
Thermistor, Cooler, No.1
[06.1989 - 07.1991] VZV21 |
88625-32040 |
— | ||
|
88650
|
88650
88650-20340
Amplifier Assy, Cooler Stabilizer
[06.1989 - 07.1991] VZV21 NO.3 |
88650-20340 |
— | ||
|
88650
|
88650
88650-32220
Amplifier Assy, Cooler Stabilizer
[06.1989 - 07.1991] VZV21 NO.1(MAIN) |
88650-32220 |
— | ||
|
88650
|
88650
88650-32270
Amplifier Assy, Cooler Stabilizer
[06.1989 - 06.1990] VZV21 NO.2 |
88650-32270 |
— | ||
|
88688A
|
88688A
88688-32250
Bracket, Cooler Stabilizer Amplifier
[06.1989 - 07.1991] VZV21 |
88688-32250 |
— | ||
|
88716F
|
88716F
88716-32270
Pipe, Cooler Refrigerant Liquid, F
[06.1989 - 07.1991] VZV21 |
88716-32270 |
— | ||
|
8271132830
|
8271132830
82711-32830 Wire, Fuse To Fuse(for Combustion Heater) |
82711-32830 |
US $11.07 |
||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.04 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048001378
|
9048001378
90480-01378
New Genuine Part
|
90480-01378 |
— | ||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
