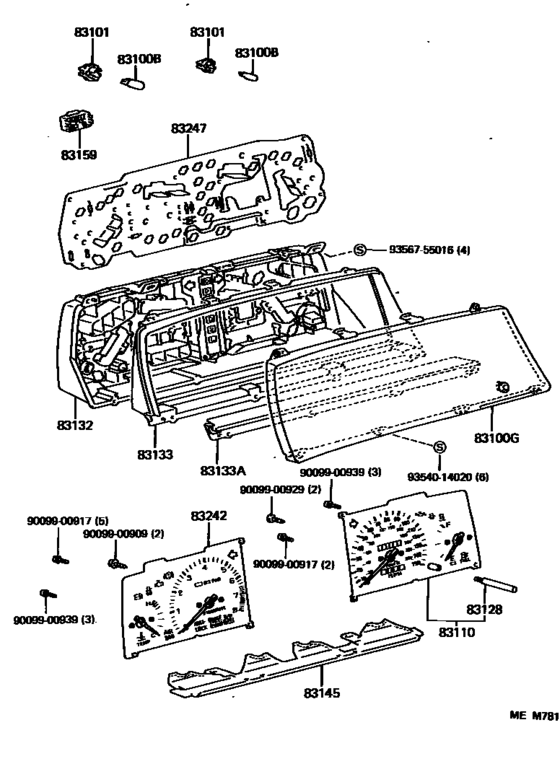

Meter ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-32020
Bulb, Combination Meter, No.1
[06.1989 - 07.1991] VZV21 12V 3.4W W(GREEN CAP) |
83109-32020 |
— | ||
|
83100B
|
83100B
83109-32030
Bulb, Combination Meter, No.1
[06.1989 - 07.1991] VZV21 12V 3.0W W(GREEN CAP) |
83109-32030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[06.1989 - 07.1991] VZV21..5F 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[06.1989 - 07.1991] VZV21 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[06.1989 - 07.1991] VZV21 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-32110
Glass, Combination Meter
[06.1989 - 07.1991] VZV21 |
83138-32110 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[06.1989 - 07.1991] VZV21 NO.1 |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[06.1989 - 07.1991] VZV21..5F NO.2 |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[06.1989 - 07.1991] VZV21 NO.3 |
83101-32020 |
from US $2.22 |
||
|
83110
|
83110
83110-32590 Speedometer Assy[06.1989 - 02.1991] VZV21..USA |
83110-32590 |
US $481.94 |
||
| replacement | |||||
|
83110
|
83110
83110-32591 Speedometer Assy[06.1989 - 02.1991] VZV21..USA |
83110-32591 |
US $481.94 |
||
|
83110
|
83110
83110-32591 Speedometer Assy[02.1991 - 07.1991] VZV21..USA |
83110-32591 |
US $481.94 |
||
|
83128
|
83128
83128-14630
Knob, Trip Counter
[06.1989 - 07.1991] VZV21..USA |
83128-14630 |
— | ||
|
83132
|
83132
83132-3H090
Case, Combination Meter
[06.1989 - 07.1991] VZV21..5F |
83132-3H090 |
— | ||
|
83133
|
83133
83133-32750
Plate, Combination Meter, No.1
[06.1989 - 07.1991] VZV21 |
83133-32750 |
— | ||
|
83133A
|
83133A
83133-32770
Plate, Combination Meter, No.2
[06.1989 - 07.1991] VZV21 |
83133-32770 |
— | ||
|
83145
|
83145
83145-32410
Lens, Meter, No.1
[06.1989 - 07.1991] VZV21 |
83145-32410 |
— | ||
|
83159
|
83159
83159-22170 Switch, Meter, No.1[06.1989 - 07.1991] VZV21 |
83159-22170 |
US $54.69 |
||
|
83242
|
83242
83242-32400 Tachometer Assy, EngineENGINE [06.1989 - 08.1990] VZV21..5F |
83242-32400 |
US $512.51 |
||
|
83242
|
83242
83242-32860 Tachometer Assy, EngineENGINE [08.1990 - 07.1991] VZV21..5F |
83242-32860 |
US $487.76 |
||
|
83247
|
83247
83149-32070
Plate, Meter Circuit
[06.1989 - 07.1991] VZV21..5F |
83149-32070 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
