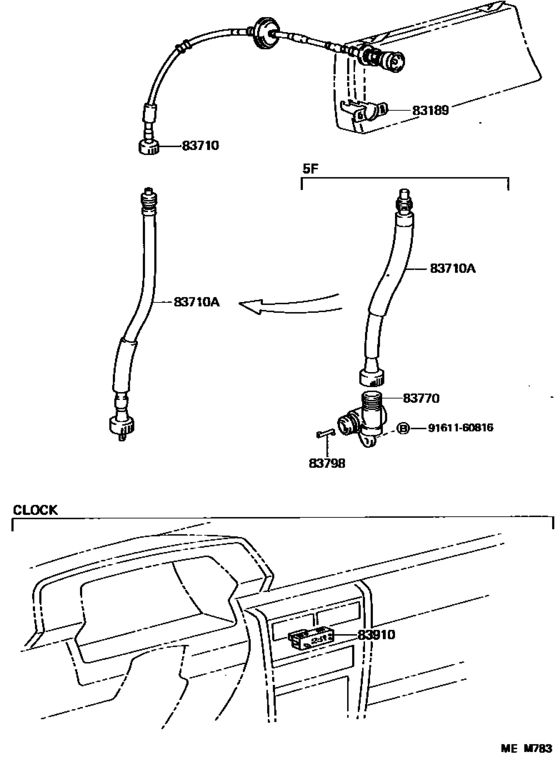

Meter ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83189
|
83189
83189-20020 Bracket, Meter[06.1989 - 07.1991] VZV21 |
83189-20020 |
US $15.50 |
||
|
83710
|
83710
83710-32270 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [06.1989 - 07.1991] VZV21 |
83710-32270 |
US $45.14 |
||
|
83710A
|
83710A
83710-32220 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [06.1989 - 07.1991] VZV21..5F |
83710-32220 |
US $8.59 |
||
|
83770
|
83770
83770-17010
Adapter Assy, Speedometer Cable
[06.1989 - 07.1991] VZV21..5F |
83770-17010 |
— | ||
|
83798
|
83798
83798-17010 Key, Speedometer Cable Adapter[06.1989 - 07.1991] VZV21..5F |
83798-17010 |
from US $7.51 |
||
|
83910
|
83910
83910-32090 Clock Assy[06.1989 - 07.1991] VZV21 |
83910-32090 |
US $428.06 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
