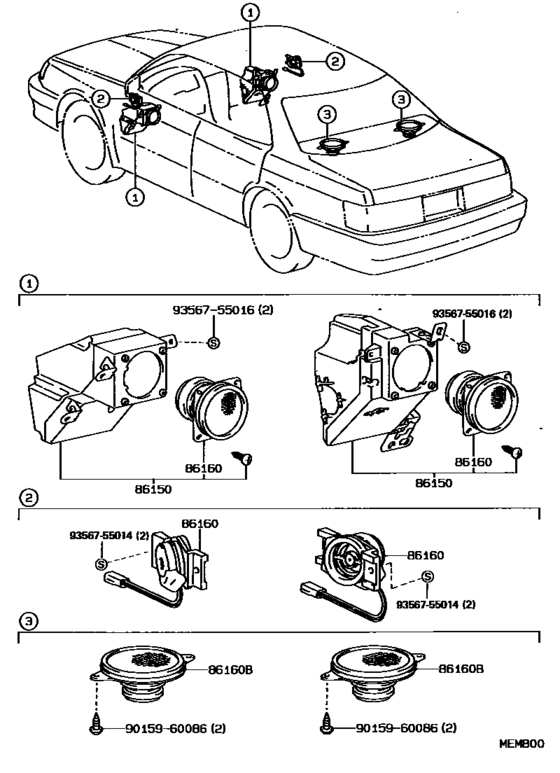

Speaker ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-32180 Speaker Assy, W/box, No.1W/BOX, NO.1 [06.1989 - 07.1991] VZV21 FRONT,LH |
86150-32180 |
US $199.47 |
||
|
86150
|
86150
86150-32190 Speaker Assy, W/box, No.1W/BOX, NO.1 [06.1989 - 07.1991] VZV21 FRONT,RH |
86150-32190 |
US $199.47 |
||
|
86160
|
86160
86160-32200 Speaker Assy, Front No.1FRONT NO.1 [06.1989 - 07.1991] VZV21 FRONT DOOR RH |
86160-32200 |
US $69.60 |
||
|
86160
|
86160
86160-32210 Speaker Assy, Front No.1FRONT NO.1 [06.1989 - 07.1991] VZV21 FRONT DOOR LH |
86160-32210 |
US $69.60 |
||
|
86160
|
86160
86160-32230 Speaker Assy, Front No.1FRONT NO.1 [06.1989 - 07.1991] VZV21 INSTRUMENT PANEL |
86160-32230 |
US $88.82 |
||
|
86160B
|
86160B
86160-32220 Speaker Assy, RearREAR [06.1989 - 07.1991] VZV21 |
86160-32220 |
US $135.41 |
||
|
9015960086
|
9015960086
90159-60086
New Genuine Part
|
90159-60086 |
— | ||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
