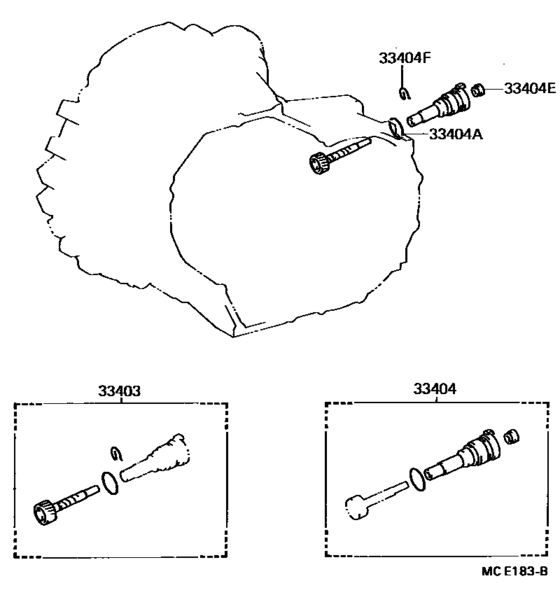

Speedometer Driven Gear (Mtm) ([06.1989 - ] E52 (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403
|
33403
33403-39215
Gear Sub-Assy, Speedometer Driven (Mtm)
[06.1989 - 02.1991] VZV21..5F N=29,MARK 29:35 |
33403-39215 |
— | ||
| replacement | |||||
|
33403
|
33403
33403-39216
Gear Sub-Assy, Speedometer Driven (Mtm)
[06.1989 - 02.1991] VZV21..5F N=29,MARK 29:35 |
33403-39216 |
— | ||
|
33403
|
33403
33403-39216
Gear Sub-Assy, Speedometer Driven (Mtm)
[02.1991 - 07.1991] VZV21..5F N=29,MARK 29:35 |
33403-39216 |
— | ||
|
33404
|
33404
33404-17010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[06.1989 - 07.1991] VZV21..5F |
33404-17010 |
US $21.67 |
||
|
33404A
|
33404A
96721-24030 Ring, O (For Mtm Speedometer Shaft Sleeve)[06.1989 - 07.1991] VZV21..5F |
96721-24030 |
US $1.40 |
||
|
33404E
|
33404E
90310-09003
Seal, Oil (For Mtm Speedometer Shaft Sleeve)
[06.1989 - 07.1991] VZV21..5F |
90310-09003 |
— | ||
|
33404F
|
33404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[06.1989 - 07.1991] VZV21..5F |
90468-12005 |
US $1.44 |
||
