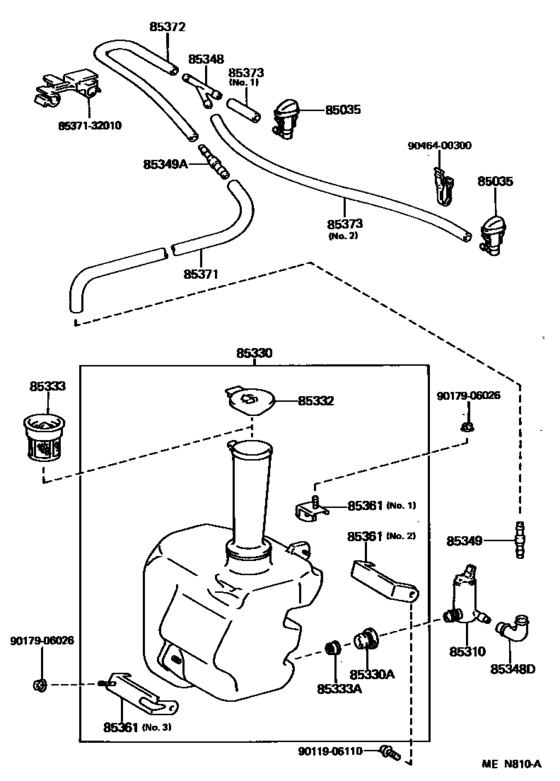

Windshield Washer ([06.1989 - ] (8906- )) Diagram Toyota LEXUS ES
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- USA
- Model
- ES250
- From
- 06.1989
- To
- 07.1991
- Gear Shift Type
- 5F
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85035-32270-01
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 BLACK,202 ,6K4 ,8G5,LH |
85035-32270-01 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[06.1989 - 07.1991] VZV21 BLACK,202 ,6K4 ,8G5,LH |
85381-12050 |
from US $17.20 |
||
|
85035
|
85035
85035-32270-02
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 DEEP RED MC,3H8,LH |
85035-32270-02 |
— | ||
|
85035
|
85035
85035-32270-03
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAY M.,184,LH |
85035-32270-03 |
— | ||
|
85035
|
85035
85035-32270-04
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAISH BLUE M.,8D6,LH |
85035-32270-04 |
— | ||
|
85035
|
85035
85035-32270-05
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 BEIGE MC M.,4J1,LH |
85035-32270-05 |
— | ||
|
85035
|
85035
85035-32270-08
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 WHITE PEARL MC,051,LH |
85035-32270-08 |
— | ||
|
85035
|
85035
85035-32280-01
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 BLACK,202 ,6K4 ,8G5,RH |
85035-32280-01 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[06.1989 - 07.1991] VZV21 BLACK,202 ,6K4 ,8G5,RH |
85381-12050 |
from US $17.20 |
||
|
85035
|
85035
85035-32280-02
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 DEEP RED MC,3H8,RH |
85035-32280-02 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-32270-02
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 DEEP RED MC,3H8,RH |
85035-32270-02 |
— | ||
|
85035
|
85035
85035-32280-03
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAY M.,184,RH |
85035-32280-03 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-32270-03
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAY M.,184,RH |
85035-32270-03 |
— | ||
|
85035
|
85035
85035-32280-04
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAISH BLUE M.,8D6,RH |
85035-32280-04 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-32270-04
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 GRAISH BLUE M.,8D6,RH |
85035-32270-04 |
— | ||
|
85035
|
85035
85035-32280-05
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 BEIGE MC M.,4J1,RH |
85035-32280-05 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-32270-05
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 BEIGE MC M.,4J1,RH |
85035-32270-05 |
— | ||
|
85035
|
85035
85035-32280-08
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 WHITE PEARL MC,051,RH |
85035-32280-08 |
— | ||
| replacement | |||||
|
85035
|
85035
85035-32270-08
Nozzle Sub-Assy, Washer
[06.1989 - 07.1991] VZV21 WHITE PEARL MC,051,RH |
85035-32270-08 |
— | ||
|
85310
|
85310
85310-14080
Motor And Pump Assy, Windshield Washer
[06.1989 - 07.1991] VZV21 |
85310-14080 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-50020 Motor And Pump Assy, Windshield Washer[06.1989 - 07.1991] VZV21 |
85330-50020 |
US $69.54 |
||
|
85330
|
85330
85315-32010
Jar Assy, Windshield Washer
[06.1989 - 07.1991] VZV21 |
85315-32010 |
— | ||
|
85330A
|
85330A
90099-32103
Bush, Windshield Washer Jar
[06.1989 - 07.1991] VZV21 |
90099-32103 |
— | ||
|
85332
|
85332
85316-32010
Cap, Windshield Washer Jar
[06.1989 - 07.1991] VZV21 |
85316-32010 |
— | ||
|
85333
|
85333
85312-32020
Filter, Windshield Washer Jar
[06.1989 - 07.1991] VZV21 |
85312-32020 |
— | ||
|
85333A
|
85333A
85333-20020
Filter, Windshield Washer Jar
[06.1989 - 07.1991] VZV21 |
85333-20020 |
— | ||
|
85348
|
85348
85348-14390 Joint, Windshield Washer Hose, No.1[06.1989 - 07.1991] VZV21 |
85348-14390 |
from US $1.40 |
||
|
85348D
|
85348D
85355-32110 Joint, Windshield Washer Elbow, No.1[06.1989 - 07.1991] VZV21 |
85355-32110 |
from US $1.40 |
||
|
85349
|
85349
85349-20010
Joint, Windshield Washer Hose, No.1
[06.1989 - 07.1991] VZV21 |
85349-20010 |
— | ||
| replacement | |||||
|
85349
|
85349
85334-22480 Joint, Windshield Washer Hose, No.1[06.1989 - 07.1991] VZV21 |
85334-22480 |
from US $1.40 |
||
|
85349A
|
85349A
85349-14010
Joint, Windshield Washer Hose, No.1
[06.1989 - 07.1991] VZV21 |
85349-14010 |
— | ||
| replacement | |||||
|
85349A
|
85349A
85334-22470 Joint, Windshield Washer Hose, No.1[06.1989 - 07.1991] VZV21 |
85334-22470 |
US $0.84 |
||
|
85361
|
85361
85317-32010
Holder, Windshield Washer
[09.1989 - 07.1991] VZV21 NO.1 |
85317-32010 |
— | ||
|
85361
|
85361
85361-32180
Holder, Windshield Washer
[06.1989 - 09.1989] VZV21 NO.1 |
85361-32180 |
— | ||
|
85361
|
85361
85362-32180
Holder, Windshield Washer
[06.1989 - 07.1991] VZV21 NO.2 |
85362-32180 |
— | ||
|
85361
|
85361
85363-32180 Holder, Windshield WasherWINDSHIELD WASHER [06.1989 - 07.1991] VZV21 NO.3 |
85363-32180 |
US $10.05 |
||
|
85371
|
85371
90099-33192
Hose, Windshield Washer (From Joint To Joint), No.2
[06.1989 - 07.1991] VZV21 L=1060 |
90099-33192 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[06.1989 - 07.1991] VZV21 L=1060 |
90099-33075 |
from US $6.57 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.1989 - 07.1991] VZV21 L=1450 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33061
Hose, Windshield Washer (From Joint To Joint), No.1
[06.1989 - 07.1991] VZV21 *H,L=550,NO.2 |
90099-33061 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.1989 - 07.1991] VZV21 *H,L=550,NO.2 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.1989 - 07.1991] VZV21 *H,L=50,NO.1 |
90099-33080 |
from US $6.16 |
||
|
8537132010
|
8537132010
85371-32010 Hose, Windshield Washer (from Motor To Joint) |
85371-32010 |
US $5.39 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046400300
|
9046400300
90464-00300
New Genuine Part
|
90464-00300 |
— | ||
