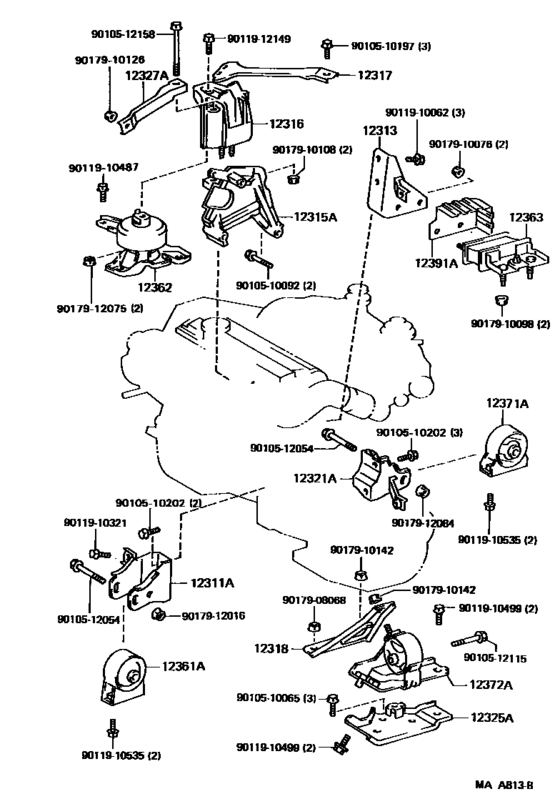

Mounting ([06.1989 - ] (8906- )2VZFE..4FC) Diagram Toyota LEXUS ES
- Year
- 1990 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- body
- HT
- ENGINE
- 2VZFE
- DESTINATION
- CND
- Model
- ES250
- From
- 08.1990
- To
- 07.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- ES250
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-62010 Bracket, Engine Mounting, Front(For Transverse Engine)[06.1989 - 07.1991] 2VZFE..VZV21 |
12311-62010 |
US $44.55 |
||
|
12313
|
12313
12313-62010 Bracket, Engine Mounting Control(For Transverse Engine)[06.1989 - 07.1991] 2VZFE..VZV21 |
12313-62010 |
US $33.78 |
||
|
12315A
|
12315A
12315-62020 Bracket, Engine Mounting, Rh(For Transverse Engine)[06.1989 - 07.1991] 2VZFE..VZV21 |
12315-62020 |
US $87.36 |
||
|
12316
|
12316
12316-62010 Bracket, Engine Mounting, No.2 Rh[06.1989 - 07.1991] 2VZFE..VZV21 |
12316-62010 |
US $106.29 |
||
| replacement | |||||
|
12316
|
12316
12316-62011 Bracket, Engine Mounting, No.2 Rh[06.1989 - 07.1991] 2VZFE..VZV21 |
12316-62011 |
US $101.92 |
||
|
12317
|
12317
12317-62020 Stay, Engine Mounting, Rh[06.1989 - 07.1991] 2VZFE..VZV21 |
12317-62020 |
US $43.97 |
||
|
12318
|
12318
12318-62030 Stay, Engine Mounting, Lh[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12318-62030 |
US $43.97 |
||
|
12321A
|
12321A
12321-62030 Bracket, Engine Mounting, Rear(For Transverse Engine)ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [06.1989 - 04.1991] 2VZFE..VZV21..4FC |
12321-62030 |
US $20.97 |
||
|
12321A
|
12321A
12321-62090 Bracket, Engine Mounting, Rear(For Transverse Engine)ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) [04.1991 - 07.1991] 2VZFE..VZV21..4FC |
12321-62090 |
US $26.21 |
||
|
12325A
|
12325A
12325-62020 Bracket, Engine Mounting, Lh(For Transverse Engine)[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12325-62020 |
US $33.49 |
||
|
12327A
|
12327A
12327-62020 Stay, Engine Mounting, No.2 Rh[06.1989 - 07.1991] 2VZFE..VZV21 |
12327-62020 |
US $31.74 |
||
|
12361A
|
12361A
12361-62040 Insulator, Engine Mounting, Front(For Transverse Engine)[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12361-62040 |
US $81.54 |
||
| replacement | |||||
|
12361A
|
12361A
12361-64120
Insulator, Engine Mounting, Front(For Transverse Engine)
[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12361-64120 |
— | ||
|
12362
|
12362
12362-62030 Insulator, Engine Mounting, Rh(For Transverse Engine)ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) [06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12362-62030 |
US $170.35 |
||
|
12363
|
12363
12363-74010
Insulator, Engine Mounting, Center
[06.1989 - 07.1991] 2VZFE..VZV21 |
12363-74010 |
— | ||
|
12371A
|
12371A
12371-62020
Insulator, Engine Mounting, Rear
[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12371-62020 |
— | ||
|
12372A
|
12372A
12372-62040
Insulator, Engine Mounting, Lh(For Transverse Engine)
[06.1989 - 07.1991] 2VZFE..VZV21..4FC |
12372-62040 |
— | ||
|
12391A
|
12391A
12391-62010 Insulator, Engine Mounting, Center[06.1989 - 07.1991] 2VZFE..VZV21 |
12391-62010 |
US $17.91 |
||
|
9010510065
|
9010510065
90105-10065 Bolt(For Transaxle Case & Engine Setting) |
90105-10065 |
US $4.08 |
||
| replacement | |||||
|
9010510065
|
9010510065
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510092
|
9010510092
90105-10092 Bolt(For Alternator) |
90105-10092 |
US $4.16 |
||
|
9010510197
|
9010510197
90105-10197 BOLT |
90105-10197 |
US $0.96 |
||
|
9010510202
|
9010510202
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
|
90105-10202 |
— | ||
| replacement | |||||
|
9010510202
|
9010510202
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
|
9010512054
|
9010512054
90105-12054 BOLT |
90105-12054 |
from US $5.39 |
||
|
9010512115
|
9010512115
90105-12115
New Genuine Part
|
90105-12115 |
— | ||
|
9010512158
|
9010512158
90105-12158 New Genuine Part |
90105-12158 |
US $8.15 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9011910321
|
9011910321
90119-10321 BOLT |
90119-10321 |
US $1.89 |
||
|
9011910487
|
9011910487
90119-10487 New Genuine Part |
90119-10487 |
US $2.77 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910535
|
9011910535
90119-10535 New Genuine Part |
90119-10535 |
US $3.20 |
||
|
9011912149
|
9011912149
90119-12149 New Genuine Part |
90119-12149 |
US $3.20 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910076
|
9017910076
90179-10076 NUT |
90179-10076 |
US $2.62 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910126
|
9017910126
90179-10126
New Genuine Part
|
90179-10126 |
— | ||
|
9017910142
|
9017910142
90179-10142 New Genuine Part |
90179-10142 |
US $2.48 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.24 |
||
|
9017912075
|
9017912075
90179-12075 New Genuine Part |
90179-12075 |
US $2.62 |
||
|
9017912084
|
9017912084
90179-12084 New Genuine Part |
90179-12084 |
US $2.62 |
||
| replacement | |||||
|
9017912084
|
9017912084
90179-12101 New Genuine Part |
90179-12101 |
US $3.20 |
||
