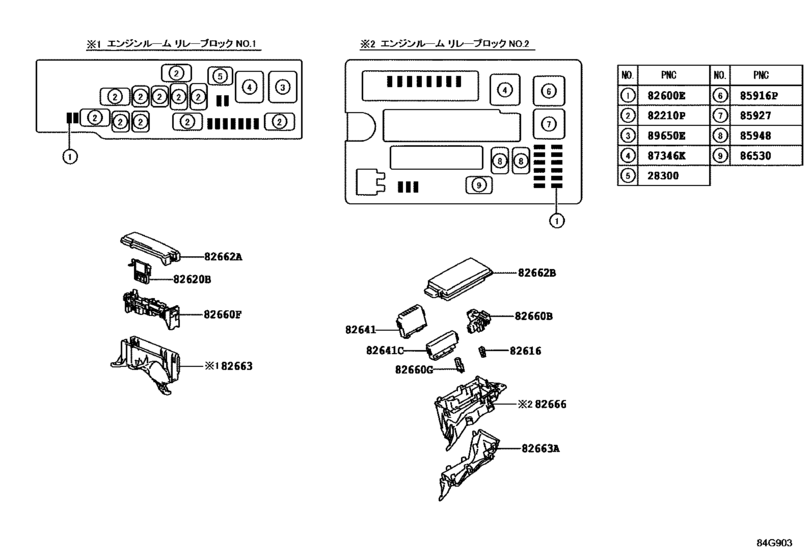

Switch & Relay & Computer ([12.2011 - 10.2015] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1112-1510)GRL1#) Diagram Toyota LEXUS GS
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- GRL10
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS350
- From
- 09.2013
- To
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 10.2015] 2GRFSE,4GRFSE..GRL1# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2011 - 06.2014] 2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2011 - 06.2014] 2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15 |
28300-21020 |
from US $40.58 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[12.2011 - 10.2015] GRL1# ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[12.2011 - 10.2015] GRL1# ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08299 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ４０Ａ−４０Ａ−４０Ａ，メス端子 |
90982-08299 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[12.2011 - 10.2015] AWL10,GRL1# ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５０Ａ−３０Ａ−４０Ａ，メス端子 |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５０Ａ−５０Ａ−５０Ａ，メス端子 |
90982-08303 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ６０Ａ，メス端子 |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ８０Ａ，メス端子 |
90982-08305 |
from US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2013 - 10.2015] AWL10,GRL1#,GWL10 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-30280 Block Assy, Fusible Link[12.2011 - 10.2015] GRL1# |
82620-30280 |
US $20.53 |
||
|
82641
|
82641
82641-30330 Relay, Integration No.1[12.2011 - 10.2015] AWL10,GRL1#,GWL10 |
82641-30330 |
US $119.39 |
||
|
82641C
|
82641C
82641-30320 Relay, Integration No.2[12.2011 - 10.2015] GRL1# |
82641-30320 |
US $167.44 |
||
|
82660B
|
82660B
82660-30B90 Block Assy, Relay[12.2011 - 10.2015] GRL1# |
82660-30B90 |
US $22.42 |
||
|
82660F
|
82660F
82660-30B60 Block Assy, Relay[12.2011 - 10.2015] GRL1# |
82660-30B60 |
US $65.81 |
||
|
82660G
|
82660G
82660-30C00 Block Assy, Relay[12.2011 - 10.2015] AWL10,GRL1#,GWL10 |
82660-30C00 |
US $4.66 |
||
|
82662A
|
82662A
82662-30880 Cover, Relay Block, Upper, No.1[12.2011 - 10.2015] GRL11,15;GRL10..8FC |
82662-30880 |
US $19.07 |
||
|
82662B
|
82662B
82662-30C90 Cover, Relay Block, Upper, No.2[09.2013 - 10.2015] GRL1# |
82662-30C90 |
US $23 |
||
|
82663
|
82663
82663-30310 Cover, Relay Block, Lower[12.2011 - 10.2015] GRL1# |
82663-30310 |
US $41.64 |
||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[12.2011 - 10.2015] GRL1# |
82663-30320 |
from US $28.83 |
||
|
82666
|
82666
82666-30C00 Holder, Connector[12.2011 - 10.2015] GRL1# |
82666-30C00 |
from US $59.26 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02025 |
from US $44.54 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-04004 |
US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;GRL11,15,GWL10 寒冷地仕様 |
90987-02025 |
from US $44.54 |
||
|
89650E
|
89650E
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15 |
90987-02025 |
from US $44.54 |
||
