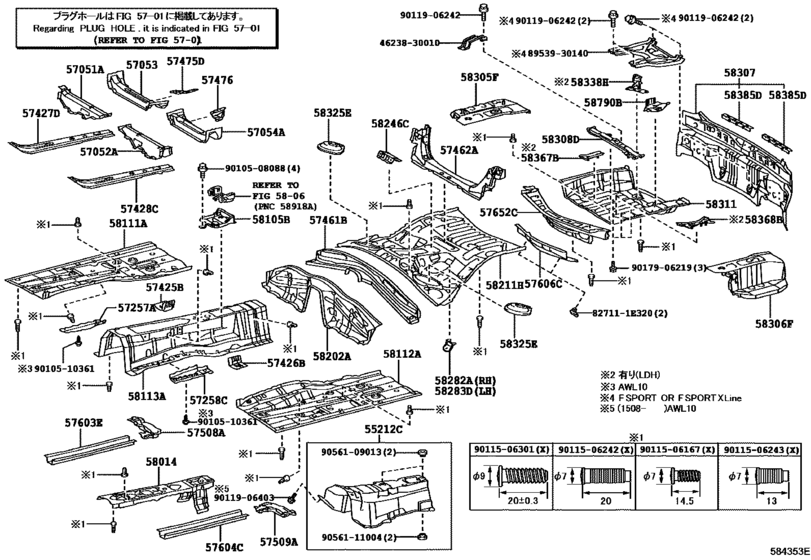

Floor Pan & Lower Back Panel ([03.2012 - ] ﾌﾛｱﾊﾟﾈﾙ & ﾛﾜｰﾊﾞｯｸﾊﾟﾈﾙ (1203- )AWL10,GWL10) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- GWL10
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55212C
|
55212C
55212-30211 Silencer, Front Panel, LowerFRONT PANEL, LOWER [03.2012 - 10.2015] AWL10,GWL10 |
55212-30211 |
US $106.29 |
||
|
57051A
|
57051A
57051-30100 Member Sub-Assy, Front Floor Cross, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57051-30100 |
US $57.51 |
||
|
57052A
|
57052A
57052-30100 Member Sub-Assy, Front Floor Cross, Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
57052-30100 |
US $57.51 |
||
|
57053
|
57053
57053-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57053-30080 |
US $51.83 |
||
|
57054A
|
57054A
57054-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57054-30080 |
US $51.83 |
||
|
57257A
|
57257A
57257-30041 Bracket, Engine Rear Mounting Member, Rh[12.2011 - 05.2014] GRL10..8FC;AWL10,GRL11,GWL10 |
57257-30041 |
US $42.08 |
||
|
57257A
|
57257A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[05.2014 - 10.2015] AWL10,GRL10,11,GWL10 |
57257-30042 |
US $40.48 |
||
|
57258C
|
57258C
57258-30091 Bracket, Engine Rear Mounting Member, Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
57258-30091 |
US $38.15 |
||
|
57425B
|
57425B
57425-30030 Reinforcement, Front Floor, No.2 Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57425-30030 |
US $13.40 |
||
|
57426B
|
57426B
57426-30030 Reinforcement, Front Floor, No.2 Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57426-30030 |
US $13.40 |
||
|
57427D
|
57427D
57427-30040
Reinforcement, Front Floor, No.3 Rh
[12.2011 - 11.2013] GRL10..8FC;AWL10,GRL11,GWL10 |
57427-30040 |
— | ||
| replacement | |||||
|
57427D
|
57427D
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2011 - 11.2013] GRL10..8FC;AWL10,GRL11,GWL10 |
57427-30041 |
US $82.99 |
||
|
57427D
|
57427D
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2013 - 10.2015] AWL10,GRL1#,GWL10 |
57427-30041 |
US $82.99 |
||
|
57428C
|
57428C
57427-30040
Reinforcement, Front Floor, No.3 Rh
[12.2011 - 11.2013] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57427-30040 |
— | ||
| replacement | |||||
|
57428C
|
57428C
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2011 - 11.2013] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57427-30041 |
US $82.99 |
||
|
57428C
|
57428C
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2013 - 10.2015] AWL10,GRL1#,GWL10 |
57427-30041 |
US $82.99 |
||
|
57461B
|
57461B
57461-30121 Member Sub-Assy, Center Floor Cross, No.1[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57461-30121 |
US $55.33 |
||
|
57462A
|
57462A
57405-30070 Member, Center Floor Cross, No.2[12.2011 - 12.2012] GRL1#,GWL10 |
57405-30070 |
US $126.67 |
||
| replacement | |||||
|
57462A
|
57462A
57405-53020 Member, Center Floor Cross, No.2[12.2011 - 12.2012] GRL1#,GWL10 |
57405-53020 |
US $165.98 |
||
|
57462A
|
57462A
57405-53020 Member, Center Floor Cross, No.2[01.2013 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57405-53020 |
US $165.98 |
||
|
57475D
|
57475D
57455-30060 Plate, Front Floor Cross Member, No.3 Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57455-30060 |
US $6.55 |
||
|
57476
|
57476
57456-30040 Plate, Front Floor Cross Member, No.3 Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57456-30040 |
US $6.55 |
||
|
57508A
|
57508A
57508-30030 Reinforcement Sub-Assy, Front Floor, Rh[12.2011 - 09.2013] GRL1#,GWL10 |
57508-30030 |
US $36.55 |
||
| replacement | |||||
|
57508A
|
57508A
57508-30031 Reinforcement Sub-Assy, Front Floor, Rh[12.2011 - 09.2013] GRL1#,GWL10 |
57508-30031 |
US $33.20 |
||
|
57508A
|
57508A
57508-30031 Reinforcement Sub-Assy, Front Floor, Rh[10.2013 - 10.2015] AWL10,GRL1#,GWL10 |
57508-30031 |
US $33.20 |
||
|
57509A
|
57509A
57509-30030
Reinforcement Sub-Assy, Front Floor, Lh
[12.2011 - 09.2013] GRL1#,GWL10 |
57509-30030 |
— | ||
| replacement | |||||
|
57509A
|
57509A
57509-30031 Reinforcement Sub-Assy, Front Floor, Lh[12.2011 - 09.2013] GRL1#,GWL10 |
57509-30031 |
US $33.20 |
||
|
57509A
|
57509A
57509-30031 Reinforcement Sub-Assy, Front Floor, Lh[10.2013 - 10.2015] AWL10,GRL1#,GWL10 |
57509-30031 |
US $33.20 |
||
|
57603E
|
57603E
57603-30070 Extension Sub-Assy, Rear Side Member, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57603-30070 |
US $55.04 |
||
|
57604C
|
57604C
57603-30070 Extension Sub-Assy, Rear Side Member, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57603-30070 |
US $55.04 |
||
|
57606C
|
57606C
57653-30150 Member Sub-Assy, Rear Floor Cross, No.2[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
57653-30150 |
US $53.29 |
||
|
57652C
|
57652C
57652-30140 Member, Rear Floor Cross, No.1[03.2012 - 10.2015] AWL10,GWL10 |
57652-30140 |
US $138.32 |
||
|
58014
|
58014
58014-30110 Panel Sub-Assy, Front Floor, Rear Lower[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
58014-30110 |
US $144.14 |
||
|
58105B
|
58105B
58105-30050 Panel Sub-Assy, Front Floor Rear Upper Sub[12.2011 - 10.2015] AWL10,GRL1#,GWL10 |
58105-30050 |
US $46.88 |
||
|
58111A
|
58111A
58111-30450 Pan, Front Floor, Rh[12.2011 - 09.2013] GRL1#,GWL10 |
58111-30450 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[12.2011 - 09.2013] GRL1#,GWL10 |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[12.2011 - 09.2013] GRL1#,GWL10 |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[12.2011 - 09.2013] GRL1#,GWL10 |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-30451 Pan, Front Floor, Rh[10.2013 - 05.2014] AWL10,GRL10,11,GWL10 |
58111-30451 |
US $218.40 |
||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[10.2013 - 05.2014] AWL10,GRL10,11,GWL10 |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[10.2013 - 05.2014] AWL10,GRL10,11,GWL10 |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[10.2013 - 05.2014] AWL10,GRL10,11,GWL10 |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-30460 Pan, Front Floor, Rh[05.2014 - 10.2015] AWL10,GRL10,11,GWL10 |
58111-30460 |
US $198.02 |
||
|
58111A
|
58111A
58111-30520 Pan, Front Floor, Rh[10.2015 -] ARL10,AWL10,GRL12,16,GWL10 |
58111-30520 |
US $198.02 |
||
|
58112A
|
58112A
58112-30161 Panel, Front Floor, Lh[12.2011 - 09.2013] GRL10,11,GWL10 |
58112-30161 |
US $218.40 |
||
| replacement | |||||
|
58112A
|
58112A
58112-30162 Panel, Front Floor, Lh[12.2011 - 09.2013] GRL10,11,GWL10 |
58112-30162 |
US $198.02 |
||
|
58112A
|
58112A
58112-30162 Panel, Front Floor, Lh[10.2013 - 10.2015] AWL10,GRL10,11,GWL10 |
58112-30162 |
US $198.02 |
||
|
58112A
|
58112A
58112-30200 Panel, Front Floor, Lh[10.2015 -] ARL10,AWL10,GRL12,GWL10 |
58112-30200 |
US $198.02 |
||
|
58113A
|
58113A
58113-30190 Panel, Front Floor, Center[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,GWL10 |
58113-30190 |
US $279.55 |
||
|
58202A
|
58202A
58202-30131 Pan Sub-Assy, Center Floor, Front[12.2011 - 12.2012] GRL1#,GWL10 |
58202-30131 |
US $190.74 |
||
| replacement | |||||
|
58202A
|
58202A
58202-53010 Pan Sub-Assy, Center Floor, Front[12.2011 - 12.2012] GRL1#,GWL10 |
58202-53010 |
US $144.14 |
||
|
58202A
|
58202A
58202-53010 Pan Sub-Assy, Center Floor, Front[01.2013 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58202-53010 |
US $144.14 |
||
|
58211H
|
58211H
58211-30410 Pan, Center Floor[03.2012 - 10.2015] AWL10,GWL10 |
58211-30410 |
US $346.53 |
||
|
58246C
|
58246C
58246-30020 Bracket, Rear Seat Hinge, Center No.2[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58246-30020 |
US $14.56 |
||
|
58282A
|
58282A
58282-30040 Base, Belt Anchor To Floor Pan, No.3 Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58282-30040 |
US $6.70 |
||
|
58283D
|
58283D
58283-30030 Base, Belt Anchor To Floor Pan, No.3 Lh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58283-30030 |
US $6.70 |
||
|
58305F
|
58305F
58305-30230 Panel Sub-Assy, Rear Floor Side, Rh[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58305-30230 |
US $82.96 |
||
|
58306F
|
58306F
58306-30230 Panel Sub-Assy, Rear Floor Side, Lh[03.2012 - 10.2015] AWL10,GWL10 |
58306-30230 |
US $103.03 |
||
|
58307
|
58307
58307-30800 Panel Sub-Assy, Body Lower Back[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58307-30800 |
US $244.61 |
||
| replacement | |||||
|
58307
|
58307
58307-30820 Panel Sub-Assy, Body Lower Back[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58307-30820 |
from US $299.60 |
||
|
58307
|
58307
58307-30820 Panel Sub-Assy, Body Lower Back[10.2015 -] ARL10,AWL10,GRL12,16,GWL10 |
58307-30820 |
from US $299.60 |
||
|
58308D
|
58308D
58308-30030 Bracket Sub-Assy, Rear Floor Crossmember[03.2012 - 10.2015] AWL10,GWL10 |
58308-30030 |
US $28.54 |
||
|
58311
|
58311
58311-30380 Pan, Rear Floor[03.2012 - 01.2013] GWL10 |
58311-30380 |
US $259.17 |
||
| replacement | |||||
|
58311
|
58311
58311-30382 Pan, Rear Floor[03.2012 - 01.2013] GWL10 |
58311-30382 |
US $217.88 |
||
|
58311
|
58311
58311-30381 Pan, Rear Floor[01.2013 - 11.2014] GWL10 |
58311-30381 |
US $215.49 |
||
| replacement | |||||
|
58311
|
58311
58311-30382 Pan, Rear Floor[01.2013 - 11.2014] GWL10 |
58311-30382 |
US $217.88 |
||
|
58311
|
58311
58311-30382 Pan, Rear Floor[12.2014 - 10.2015] GWL10 |
58311-30382 |
US $217.88 |
||
|
58311
|
58311
58311-30400 Pan, Rear Floor[03.2012 - 01.2013] GWL10 Ｆ ＳＰＯＲＴ |
58311-30400 |
US $259.17 |
||
| replacement | |||||
|
58311
|
58311
58311-30402 Pan, Rear Floor[03.2012 - 01.2013] GWL10 Ｆ ＳＰＯＲＴ |
58311-30402 |
US $197.61 |
||
|
58311
|
58311
58311-30401 Pan, Rear Floor[01.2013 - 11.2014] GWL10 Ｆ ＳＰＯＲＴ; GRL10..8FC Ｆ ＳＰＯＲＴ＆ＬＤＨ−有り |
58311-30401 |
US $215.49 |
||
| replacement | |||||
|
58311
|
58311
58311-30402 Pan, Rear Floor[01.2013 - 11.2014] GWL10 Ｆ ＳＰＯＲＴ; GRL10..8FC Ｆ ＳＰＯＲＴ＆ＬＤＨ−有り |
58311-30402 |
US $197.61 |
||
|
58311
|
58311
58311-30402 Pan, Rear Floor[12.2014 - 10.2015] AWL10; GWL10 Ｆ ＳＰＯＲＴ; GRL10 Ｆ ＳＰＯＲＴ＆ＬＤＨ−有り; GWL10 Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ; GRL10 Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ＆ＬＤＨ−有り |
58311-30402 |
US $197.61 |
||
|
58325E
|
58325E
58325-30030 Cover, Rear Floor Service Hole[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58325-30030 |
US $19.51 |
||
|
58338H
|
58338H
58338-30060 Reinforcement, Rear Floor Pan, No.2 Rh[03.2012 - 10.2015] GWL10 Ｆ ＳＰＯＲＴ |
58338-30060 |
US $10.92 |
||
|
58367B
|
58367B
58367-30100 Bracket, Fuel Tube[03.2012 - 10.2015] GWL10 Ｆ ＳＰＯＲＴ |
58367-30100 |
US $10.92 |
||
|
58368B
|
58368B
58368-30060 Bracket, Fuel Tube, No.2[03.2012 - 01.2015] GWL10 Ｆ ＳＰＯＲＴ |
58368-30060 |
US $16.31 |
||
| replacement | |||||
|
58368B
|
58368B
58368-30061 Bracket, Fuel Tube, No.2[03.2012 - 01.2015] GWL10 Ｆ ＳＰＯＲＴ |
58368-30061 |
US $16.31 |
||
|
58368B
|
58368B
58368-30061 Bracket, Fuel Tube, No.2[02.2015 - 10.2015] AWL10; GWL10 Ｆ ＳＰＯＲＴ; GRL10 Ｆ ＳＰＯＲＴ＆ＬＤＨ−有り; GWL10 Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ; GRL10 Ｆ ＳＰＯＲＴ Ｘ Ｌｉｎｅ＆ＬＤＨ−有り |
58368-30061 |
US $16.31 |
||
|
58385D
|
58385D
58385-30080 Bracket, Rear Bumper Cover[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
58385-30080 |
US $11.07 |
||
|
58790B
|
58790B
58790-30030 Carrier Assy, Jack[03.2012 - 10.2015] AWL10,GWL10 |
58790-30030 |
from US $6.59 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
4623830010
|
4623830010
46238-30010 Protector, Plunger Lock Pin |
46238-30010 |
US $11.07 |
||
|
8953930140
|
8953930140
89539-30140 Bracket, Transmission Control Computer |
89539-30140 |
US $63.63 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9010510361
|
9010510361
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $0.98 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506242
|
9011506242
90115-06242 New Genuine Part |
90115-06242 |
US $0.96 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $0.96 |
||
|
9011906242
|
9011906242
90119-06242 New Genuine Part |
90119-06242 |
US $0.70 |
||
|
9011906403
|
9011906403
90119-06403 BOLT W-WASHER |
90119-06403 |
from US $0.80 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.05 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
|
9056109013
|
9056109013
90561-09013 SPACER |
90561-09013 |
US $1.02 |
||
|
9056111004
|
9056111004
90561-11004 SPACER |
90561-11004 |
US $1.28 |
||
