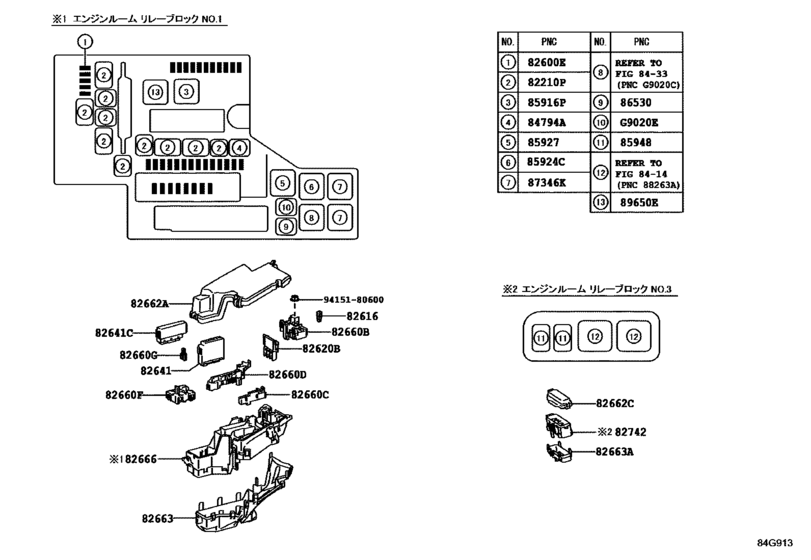

Switch & Relay & Computer ([03.2012 - 10.2015] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1203-1510)AWL10,GWL10) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- GWL10
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210P
|
82210P
90982-08295 Fusible Link[03.2012 - 10.2015] AWL10,GWL10 ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08299 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ４０Ａ−４０Ａ−４０Ａ，メス端子 |
90982-08299 |
US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[09.2013 - 10.2015] GWL10 ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５０Ａ−３０Ａ−４０Ａ，メス端子 |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[09.2013 - 10.2015] AWL10,GWL10 ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
US $6.24 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５０Ａ−５０Ａ−５０Ａ，メス端子 |
90982-08303 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ６０Ａ，メス端子 |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ８０Ａ，メス端子 |
90982-08305 |
US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[10.2015 -] AWL10,GWL10 ４０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08308 |
from US $6.56 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[12.2011 - 10.2015] AWL10,GRL1#,GWL10 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[12.2011 - 10.2015] AWL10,GRL1#,GWL10 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2013 - 10.2015] AWL10,GRL1#,GWL10 |
82616-58010 |
from US $2.32 |
||
|
82620B
|
82620B
82620-30290 Block Assy, Fusible Link[03.2012 - 10.2015] AWL10,GWL10 |
82620-30290 |
US $30.84 |
||
|
82641
|
82641
82641-30330 Relay, Integration No.1[12.2011 - 10.2015] AWL10,GRL1#,GWL10 |
82641-30330 |
US $119.39 |
||
|
82641C
|
82641C
82641-30320 Relay, Integration No.2[10.2015 -] AWL10,GRL1#,GWL10 |
82641-30320 |
US $167.44 |
||
|
82641C
|
82641C
82641-30340 Relay, Integration No.2[03.2012 - 10.2015] AWL10,GWL10 |
82641-30340 |
US $160.16 |
||
|
82660B
|
82660B
82660-30B70 Block Assy, Relay[03.2012 - 10.2015] AWL10,GWL10 |
82660-30B70 |
US $69.67 |
||
|
82660C
|
82660C
82660-30B80 Block Assy, Relay[03.2012 - 10.2015] AWL10,GWL10 |
82660-30B80 |
US $11.50 |
||
|
82660D
|
82660D
82660-30C10 Block Assy, Relay[03.2012 - 10.2015] AWL10,GWL10 |
82660-30C10 |
US $39.31 |
||
|
82660D
|
82660D
82660-30D70 Block Assy, Relay[10.2015 -] AWL10,GWL10 |
82660-30D70 |
US $30.14 |
||
|
82660F
|
82660F
82660-30C20 Block Assy, Relay[03.2012 - 10.2015] AWL10,GWL10 |
82660-30C20 |
US $22.13 |
||
|
82660G
|
82660G
82660-30C00 Block Assy, Relay[12.2011 - 10.2015] AWL10,GRL1#,GWL10 |
82660-30C00 |
US $4.66 |
||
|
82662A
|
82662A
82662-30890 Cover, Relay Block, Upper, No.1[03.2012 - 09.2013] GWL10 |
82662-30890 |
US $50.67 |
||
|
82662A
|
82662A
82662-30C10 Cover, Relay Block, Upper, No.1[10.2015 -] AWL10,GWL10 |
82662-30C10 |
US $52.36 |
||
|
82662A
|
82662A
82662-30C80 Cover, Relay Block, Upper, No.1[09.2013 - 10.2015] AWL10,GWL10 |
82662-30C80 |
US $50.67 |
||
|
82662C
|
82662C
82662-30B70 Cover, Relay Block, Upper, No.3[03.2012 - 10.2015] AWL10,GWL10 |
82662-30B70 |
US $7.86 |
||
|
82662C
|
82662C
82662-30F20 Cover, Relay Block, Upper, No.3[10.2015 -] AWL10,GWL10 |
82662-30F20 |
US $8.30 |
||
|
82663
|
82663
82663-30330 Cover, Relay Block, Lower[03.2012 - 10.2015] AWL10,GWL10 |
82663-30330 |
US $48.19 |
||
|
82663A
|
82663A
82663-30340 Cover, Relay Block, Lower, No.2[03.2012 - 10.2015] AWL10,GWL10 |
82663-30340 |
US $8.30 |
||
|
82666
|
82666
82666-30C10 Holder, Connector[03.2012 - 10.2015] AWL10,GWL10 |
82666-30C10 |
US $96.10 |
||
|
82666
|
82666
82666-30E10 Holder, Connector[10.2015 -] AWL10,GWL10 |
82666-30E10 |
US $88.82 |
||
|
82742
|
82742
82743-30090 Block, Engine Room Relay, No.2[03.2012 - 10.2015] AWL10,GWL10 |
82743-30090 |
US $19.80 |
||
|
84794A
|
84794A
90987-02027 Relay[03.2012 - 10.2015] AWL10,GWL10 寒冷地仕様 |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02025 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02027 Relay[10.2015 -] ARL10,AWL10,GRL12,16,GWL10 |
90987-02027 |
from US $44.54 |
||
|
85924C
|
85924C
90987-02025 Relay[03.2012 - 10.2015] AWL10,GWL10 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02025 |
from US $44.54 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[12.2011 - 10.2015] GRL10..8FC;AWL10,GRL11,15,GWL10 |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[12.2011 - 10.2015] GRL10..8FC;GRL11,15,GWL10 寒冷地仕様 |
90987-02025 |
from US $44.54 |
||
|
89650E
|
89650E
90987-02025 Relay[10.2015 -] ARL10,AWL10,GRL12,16,GWL10 |
90987-02025 |
from US $44.54 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
G9020E
|
G9020E
90987-02027 Relay[03.2012 - 10.2015] AWL10,GWL10 |
90987-02027 |
from US $44.54 |
