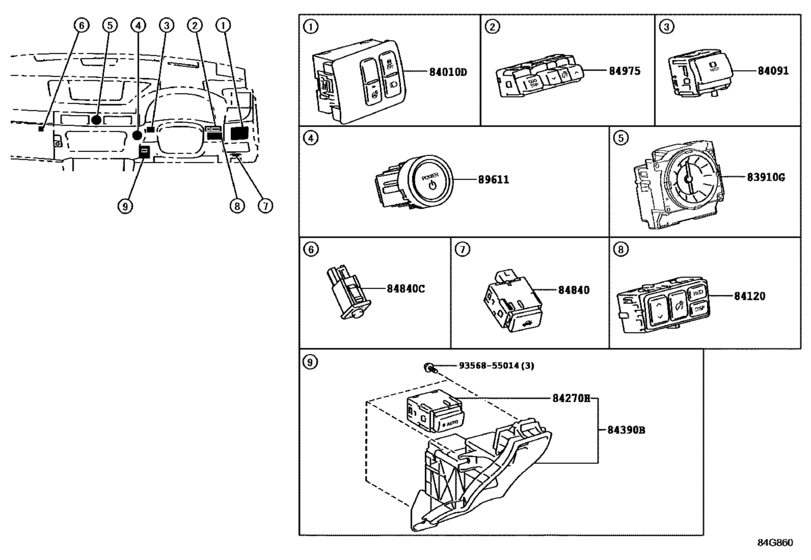

Switch & Relay & Computer ([10.2015 - ] INSTRUMENT PANEL 1/2 (1510- )RHD) Diagram Toyota LEXUS GS
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- GWL10
- grade
- ECO
- ENGINE
- 2GRFXE
- TRANSMISSION
- CVT
- Model
- GS450 Hybrid
- From
- 03.2012
- Vehicle Model
- GS450 Hybrid
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-30620
Clock Assy
[01.2012 - 09.2013] GRL1#,GWL10 |
83910-30620 |
— | ||
| replacement | |||||
|
83910G
|
83910G
8391030622 CLOCK ASSY[01.2012 - 09.2013] GRL1#,GWL10 |
8391030622 |
from US $273.57 |
||
|
83910G
|
83910G
83910-30630 Clock Assy[10.2015 -] ARL10,AWL10,GRL16,GWL10 |
83910-30630 |
US $317.41 |
||
|
83910G
|
83910G
83910-30650 Clock Assy[09.2013 - 10.2015] AWL10,GRL1#,GWL10 |
83910-30650 |
US $266.45 |
||
|
84010D
|
84010D
84010-30B00 Control & Panel Assy, Integration[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD STEERING WHEEL-LEATHER, WITH(STEERING HEATER); AWL10,GRL11,GWL10..RHD..STD STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER); AWL10,GRL11,GWL10..RHD..STD STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER) |
84010-30B00 |
US $82.99 |
||
|
84010D
|
84010D
84010-30B20 Control & Panel Assy, Integration[10.2015 -] AWL10,GWL10..RHD STEERING WHEEL-LEATHER, WITH(STEERING HEATER); AWL10,GWL10..RHD..STD STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER); AWL10,GWL10..RHD..STD STEERING WHEEL-WOOD & LEATHER, WITH(STEERING HEATER)&HEADLAMP-LED(PROJECTOR) & |
84010-30B20 |
US $63.63 |
||
|
84010D
|
84010D
84010-30B80 Control & Panel Assy, Integration[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
84010-30B80 |
US $70.03 |
||
|
84010D
|
84010D
84010-30C00 Control & Panel Assy, Integration[10.2015 -] AWL10,GWL10..RHD |
84010-30C00 |
US $54.16 |
||
|
84010D
|
84010D
84010-30L90 Control & Panel Assy, Integration[10.2015 - 09.2016] AWL10,GWL10..RHD..ECO UNITED KINGDOM SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER, WITH(STEERIN G HEATER); AWL10,GWL10..RHD..ECO IRELAND SPEC&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER, WITH(STEERING HEATE R); AWL10,GWL1 |
84010-30L90 |
US $80.08 |
||
|
84010D
|
84010D
84010-30M70 Control & Panel Assy, Integration[10.2015 - 09.2016] AWL10,GWL10..RHD..ECO UNITED KINGDOM SPEC&PRE-COLLISION SYSTEM-WITH; AWL10,GWL10..RHD..ECO IRELAND SPEC&PRE-COLLISION SYSTEM-WITH; AWL10,GWL10..RHD..ECO CYPRUS SPEC&PRE-COLLISION SYSTEM-WITH; AWL10,GWL10..RHD..STD STEERING WHEEL-LEATHE |
84010-30M70 |
US $63.63 |
||
|
84091
|
84091
84091-30590 Switch Set, Satellite[03.2012 - 10.2015] AWL10,GWL10..RHD |
84091-30590 |
US $47.90 |
||
|
84270H
|
84270H
84332-30340 Switch Assy, Parking Lamp[03.2012 - 11.2014] AWL10,GRL11,GWL10..RHD |
84332-30340 |
US $44.84 |
||
| replacement | |||||
|
84270H
|
84270H
84332-30341 Switch Assy, Parking Lamp[03.2012 - 11.2014] AWL10,GRL11,GWL10..RHD |
84332-30341 |
US $40.77 |
||
|
84270H
|
84270H
84332-30341 Switch Assy, Parking Lamp[12.2014 - 10.2015] AWL10,GRL11,GWL10..RHD |
84332-30341 |
US $40.77 |
||
|
84390B
|
84390B
84390-30030
Switch Assy, Electric Parking Brake
[03.2012 - 11.2014] AWL10,GRL11,GWL10..RHD |
84390-30030 |
— | ||
| replacement | |||||
|
84390B
|
84390B
84390-30031
Switch Assy, Electric Parking Brake
[03.2012 - 11.2014] AWL10,GRL11,GWL10..RHD |
84390-30031 |
— | ||
|
84390B
|
84390B
84390-30031
Switch Assy, Electric Parking Brake
[12.2014 - 10.2015] AWL10,GRL11,GWL10..RHD |
84390-30031 |
— | ||
|
84840
|
84840
84840-30250 Switch Assy, Luggage Compartment Door Opening[01.2012 - 01.2015] AWL10,GRL1#,GWL10 |
84840-30250 |
US $39.60 |
||
| replacement | |||||
|
84840
|
84840
84840-30251 Switch Assy, Luggage Compartment Door Opening[01.2012 - 01.2015] AWL10,GRL1#,GWL10 |
84840-30251 |
US $35.96 |
||
|
84840
|
84840
84840-30251 Switch Assy, Luggage Compartment Door Opening[02.2015 - 10.2015] AWL10,GRL1#,GWL10 |
84840-30251 |
US $35.96 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[01.2012 - 10.2015] AWL10,GRL1#,GWL10 |
84840-24020 |
US $30.23 |
||
|
84975
|
84975
84975-30080 Switch, Trip[03.2012 - 10.2015] AWL10,GRL11,GWL10..RHD |
84975-30080 |
US $66.10 |
||
|
84975
|
84975
84975-30110 Switch, Trip[10.2015 -] AWL10,GWL10..RHD |
84975-30110 |
US $59.99 |
||
|
89611
|
89611
89611-30130 Switch, Push Start[03.2012 - 10.2012] GWL10 |
89611-30130 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30132 Switch, Push Start[03.2012 - 10.2012] GWL10 |
89611-30132 |
US $135.41 |
||
|
89611
|
89611
89611-30131 Switch, Push Start[11.2012 - 05.2015] AWL10,GWL10 |
89611-30131 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-30132 Switch, Push Start[11.2012 - 05.2015] AWL10,GWL10 |
89611-30132 |
US $135.41 |
||
|
89611
|
89611
89611-30132 Switch, Push Start[06.2015 - 10.2015] AWL10,GWL10 |
89611-30132 |
US $135.41 |
||
|
89611
|
89611
89611-30133 Switch, Push Start[05.2016 -] AWL10,GWL10 |
89611-30133 |
US $122.30 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
