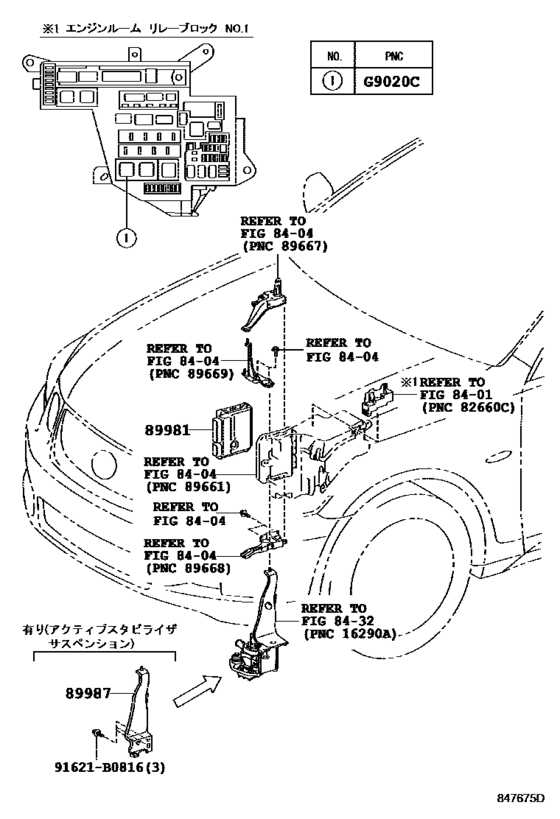

Hv Control Computer ([02.2006 - ] (0602- )) Diagram Toyota LEXUS GS
- Year
- 2006 - 2011
- Sales region
- Japan
- Frame
- GWS191
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS450 Hybrid
- From
- 02.2006
- To
- 12.2011
- Vehicle Model
- GS450 Hybrid
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89981
|
89981
89981-30010 Computer, Hybrid Vehicle Control[02.2006 - 09.2007] GWS191 |
89981-30010 |
US $1,368.64 |
||
|
89981
|
89981
89981-30060 Computer, Hybrid Vehicle Control[09.2007 - 09.2008] GWS191 |
89981-30060 |
US $1,367.18 |
||
|
89981
|
89981
89981-30120 Computer, Hybrid Vehicle Control[09.2008 - 09.2009] GWS191 |
89981-30120 |
US $1,138.59 |
||
|
89981
|
89981
89981-30190 Computer, Hybrid Vehicle ControlHYBRID VEHICLE CONTROL [09.2009 - 12.2011] GWS191 |
89981-30190 |
US $1,138.59 |
||
|
89987
|
89987
89987-30020 Bracket, Computer, No.1[02.2006 - 09.2007] GWS191 スタビライザ−有り（アクティブスタビライザ サスペンション） |
89987-30020 |
US $25.92 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
G9020C
|
G9020C
90987-02025 Relay[02.2006 - 09.2007] GWS191 |
90987-02025 |
from US $44.54 |
