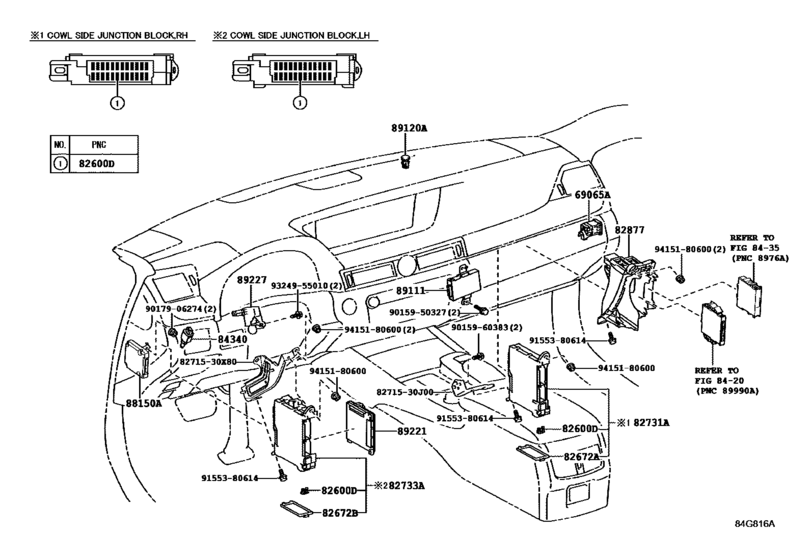

Switch & Relay & Computer ([10.2015 - ] COWL (1510- )LHD) Diagram Toyota LEXUS GS
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- URL10
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- GS F
- From
- 10.2015
- Gear Shift Type
- 8FC
- Vehicle Model
- GS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69065A
|
69065A
69065-12460 Cylinder Sub-Assy, Air Bag Cut Off Switch[10.2015 -] URL10 |
69065-12460 |
US $38.88 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2015 -] URL10 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2015 -] URL10 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2015 -] URL10 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2015 -] URL10 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2015 -] URL10 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[10.2015 -] URL10 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[10.2015 -] URL10 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82672A
|
82672A
82672-30500
Cover, Junction Block
[10.2015 -] URL10..LHD |
82672-30500 |
— | ||
|
82672B
|
82672B
82672-30520
Cover, Junction Block
[10.2015 -] URL10..LHD |
82672-30520 |
— | ||
|
82731A
|
82731A
82730-30M20
Block, Cowl Side Junction, Rh
[10.2015 -] URL10..LHD |
82730-30M20 |
— | ||
|
82733A
|
82733A
82730-30M00
Block, Cowl Side Junction, Lh
[10.2015 -] URL10..LHD |
82730-30M00 |
— | ||
|
82877
|
82877
82877-30020
Box, Computer Integration, Rh
[10.2015 -] URL10..LHD |
82877-30020 |
— | ||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[10.2015 -] URL10 |
84340-30130 |
from US $42.10 |
||
|
88150A
|
88150A
88150-30390
Computer Assy, Driving Support
[10.2015 - 09.2016] URL10..LHD PRE-COLLISION SYSTEM-WITH(GSP) |
88150-30390 |
— | ||
|
88150A
|
88150A
88150-30391
Computer Assy, Driving Support
[09.2016 - 09.2017] URL10..LHD PRE-COLLISION SYSTEM-WITH(GSP) |
88150-30391 |
— | ||
|
89111
|
89111
89100-30230 Computer, Network Gateway[10.2015 - 01.2016] URL10 |
89100-30230 |
US $192.19 |
||
|
89111
|
89111
89100-30231 Computer, Network Gateway[02.2016 -] URL10 |
89100-30231 |
US $174.72 |
||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[10.2015 -] URL10 |
89121-50020 |
US $108.04 |
||
|
89221
|
89221
89220-30D20
Computer, Multiplex Network Body
[09.2016 -] URL10..LHD TURKEY SPEC |
89220-30D20 |
— | ||
|
89221
|
89221
89220-30Y40
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD GERMANY,AUSTRIA,SWIZERLAND SPEC |
89220-30Y40 |
— | ||
|
89221
|
89221
89220-30Y50
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD ITALY SPEC |
89220-30Y50 |
— | ||
|
89221
|
89221
89220-30Y60
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD SPAIN SPEC |
89220-30Y60 |
— | ||
|
89221
|
89221
89220-30Y70
Computer, Multiplex Network Body
[10.2015 - 09.2017] URL10..LHD UKRAINE SPEC |
89220-30Y70 |
— | ||
|
89221
|
89221
89220-30Y80
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD FRANCE SPEC |
89220-30Y80 |
— | ||
|
89221
|
89221
89220-30Y90
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD |
89220-30Y90 |
— | ||
|
89221
|
89221
89220-30Z00
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN+2 SENSORS) |
89220-30Z00 |
— | ||
|
89221
|
89221
89220-30Z10
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD CANARY ISLANDS SPEC |
89220-30Z10 |
— | ||
|
89221
|
89221
89220-30Z20
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD ISRAEL SPEC&ANTI-THEFT SYSTEM-NASI |
89220-30Z20 |
— | ||
|
89221
|
89221
89220-30Z30
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD REUNION SPEC |
89220-30Z30 |
— | ||
|
89221
|
89221
89220-30Z40
Computer, Multiplex Network Body
[10.2015 -] URL10..LHD SLOVENIA SPEC |
89220-30Z40 |
— | ||
|
89227
|
89227
89227-53010 Computer, Multiplex Tilt & Telescopic[10.2015 -] URL10 |
89227-53010 |
US $235.87 |
||
|
8271530J00
|
8271530J00
82715-30J00
Bracket,wiring Harness Clamp
|
82715-30J00 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
