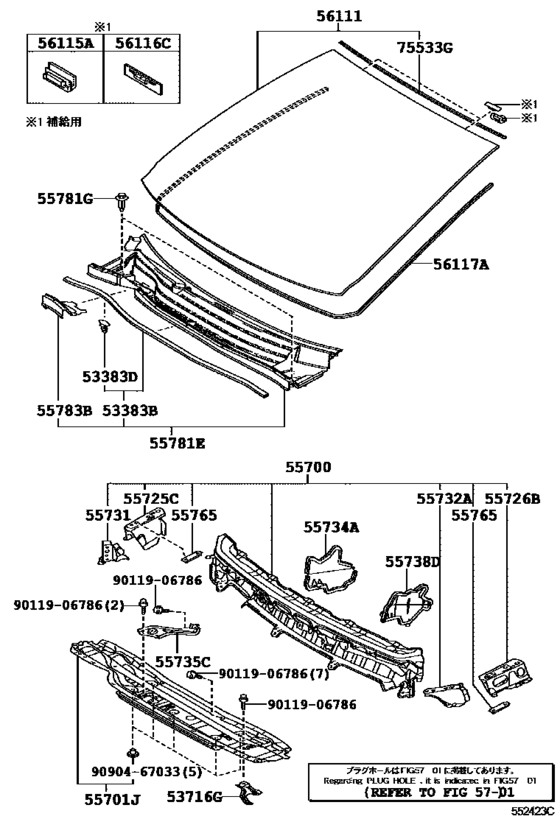

Cowl Panel & Windshield Glass ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-75010 Seal, Hood To Cowl TopHOOD TO COWL TOP [07.2009 - 01.2013] ANF10 |
53383-75010 |
US $10.19 |
||
|
53383D
|
53383D
67867-12150 Clip(For Hood Air Intake Duct Seal)[07.2009 - 01.2013] ANF10 |
67867-12150 |
from US $1.60 |
||
|
53716G
|
53716G
53716-75010 Extension, Front Fender Apron, Rear LhFRONT FENDER APRON, REAR LH [07.2009 - 01.2013] ANF10 |
53716-75010 |
US $13.54 |
||
|
55700
|
55700
55700-75010 Panel Assy, FrontFRONT [07.2009 - 01.2013] ANF10 |
55700-75010 |
US $193.65 |
||
|
55701J
|
55701J
55701-75011 Panel Sub-Assy, Cowl Top, OuterCOWL TOP, OUTER [07.2009 - 01.2013] ANF10 |
55701-75011 |
US $214.03 |
||
| replacement | |||||
|
55701J
|
55701J
55701-75012 Panel Sub-Assy, Cowl Top, Outer[07.2009 - 01.2013] ANF10 |
55701-75012 |
US $193.65 |
||
|
55701J
|
55701J
55701-75012 Panel Sub-Assy, Cowl Top, Outer[07.2013 -] ANF10 |
55701-75012 |
US $193.65 |
||
|
55725C
|
55725C
55725-75010 Reinforcement, Hood Hinge Mounting, Rh[07.2009 - 01.2013] ANF10 |
55725-75010 |
US $18.20 |
||
|
55726B
|
55726B
55726-75010 Reinforcement, Hood Hinge Mounting, Lh[07.2009 - 01.2013] ANF10 |
55726-75010 |
US $18.20 |
||
|
55731
|
55731
55731-75010 Bracket, Cowl Body Mounting, Upper Rh[07.2009 - 01.2013] ANF10 |
55731-75010 |
US $15.58 |
||
|
55732A
|
55732A
55732-75010 Bracket, Cowl Body Mounting, Upper Lh[07.2009 - 01.2013] ANF10 |
55732-75010 |
US $17.04 |
||
|
55734A
|
55734A
55734-75010 Plate, Water Guard, RhWATER GUARD, RH [07.2009 - 01.2013] ANF10 |
55734-75010 |
US $15.43 |
||
|
55735C
|
55735C
55735-75010 Reinforcement, Cowl Body Mounting, RhCOWL BODY MOUNTING, RH [07.2009 - 01.2013] ANF10 |
55735-75010 |
US $19.51 |
||
|
55738D
|
55738D
55738-75010 Seal, Heater Air Duct Splash Shield, No.2HEATER AIR DUCT SPLASH SHIELD, NO.2 [07.2009 - 01.2013] ANF10 |
55738-75010 |
US $15.72 |
||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[07.2009 - 01.2013] ANF10 |
55765-44010 |
US $4.96 |
||
|
55781E
|
55781E
55708-75010 Louver Sub-Assy, Cowl Top VentilatorCOWL TOP VENTILATOR [07.2009 - 01.2013] ANF10 |
55708-75010 |
US $161.84 |
||
|
55781E
|
55781E
55708-75040 Louver Sub-Assy, Cowl Top VentilatorCOWL TOP VENTILATOR [07.2009 - 01.2013] ANF10 寒冷地仕様 |
55708-75040 |
US $144.14 |
||
|
55781G
|
55781G
90467-07076-C0 Clip, Radiator Grille[07.2009 - 01.2013] ANF10 BLACK |
90467-07076-C0 |
from US $0.88 |
||
|
55781G
|
55781G
90467-07076-C7 Clip, Hood Moulding[03.2017 -] ANF10 BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
55783B
|
55783B
55783-75010 Louver, Cowl Top Ventilator, Center No.1COWL TOP VENTILATOR, CENTER NO.1 [07.2009 - 01.2013] ANF10 |
55783-75010 |
US $17.18 |
||
|
56111
|
56111
56101-75090
Glass, Windshield
[07.2009 - 10.2011] ANF10 宴bシュシステム−有り（＊ＰＢ）; ANF10 宴bシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ）＆車線維持支援−有り |
56101-75090 |
— | ||
|
56111
|
56111
56101-75091
Glass, Windshield
[10.2011 - 01.2013] ANF10 宴bシュシステム−有り（＊ＰＢ）; ANF10 宴bシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ）＆車線維持支援−有り |
56101-75091 |
— | ||
|
56111
|
56111
56101-75100
Glass, Windshield
[07.2009 - 10.2011] ANF10 ＊ＥＨＬ，Ｔ＝４．７６，グリーン,“ｖｅｒｓｉｏｎ Ｉ”＆寒冷地仕様 |
56101-75100 |
— | ||
|
56111
|
56111
56101-75101
Glass, Windshield
[10.2011 - 01.2013] ANF10 ＊ＩＲＣＥＨＬ，Ｔ＝４．７６，グリーン,“ｖｅｒｓｉｏｎ Ｉ”＆寒冷地仕様 |
56101-75101 |
— | ||
|
56111
|
56111
56101-75110
Glass, Windshield
[07.2009 - 10.2011] ANF10 ＊ＥＨＬ，Ｔ＝４．７６，グリーン,寒冷地仕様 |
56101-75110 |
— | ||
|
56111
|
56111
56101-75111
Glass, Windshield
[10.2011 - 01.2013] ANF10 ＊ＩＲＣＥＨＬ，Ｔ＝４．７６，グリーン,寒冷地仕様 |
56101-75111 |
— | ||
|
56111
|
56111
56101-75120
Glass, Windshield
[07.2009 - 10.2011] ANF10 |
56101-75120 |
— | ||
|
56111
|
56111
56101-75121
Glass, Windshield
[10.2011 - 01.2013] ANF10 |
56101-75121 |
— | ||
|
56111
|
56111
56101-75130
Glass, Windshield
[07.2009 - 10.2011] ANF10 ＊ＩＲＣＬ，Ｔ＝４．７６，グリーン,“ｖｅｒｓｉｏｎ Ｉ” |
56101-75130 |
— | ||
|
56111
|
56111
56101-75131
Glass, Windshield
[10.2011 - 01.2013] ANF10 ＊ＩＲＣＬ，Ｔ＝４．７６，グリーン,“ｖｅｒｓｉｏｎ Ｉ” |
56101-75131 |
— | ||
|
56111
|
56111
56101-75140
Glass, Windshield
[07.2009 - 10.2011] ANF10 ＊ＩＲＣＬ，Ｔ＝４．７６，グリーン |
56101-75140 |
— | ||
|
56111
|
56111
56101-75141
Glass, Windshield
[10.2011 - 01.2013] ANF10 ＊ＩＲＣＬ，Ｔ＝４．７６，グリーン |
56101-75141 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[07.2009 - 01.2013] ANF10 |
56115-30100 |
from US $1.68 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[07.2009 - 01.2013] ANF10 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[07.2009 - 01.2013] ANF10 ＊Ｄ，Ｌ＝２９５０; ANF10 ＊Ｄ，Ｌ＝２９５０,“ｖｅｒｓｉｏｎ Ｉ”; ANF10 ＊Ｄ，Ｌ＝２９５０,“ｖｅｒｓｉｏｎ Ｉ”＆寒冷地仕様; ANF10 閨i＊ＰＢ）; ANF10 ＊Ｄ，Ｌ＝２９５０,“ｖｅｒｓｉｏｎ Ｉ”＆プリクラッシュシステム−有り（＊ＰＢ）; ANF10 閨i＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ）＆車線維持支援−有り; ANF10 普魔oＢ＆＊ＲＰＣＳ）＆車線維持支援−有り; ANF10 ＊Ｄ，Ｌ＝２９５０,寒冷地仕様 |
56117-64010 |
from US $22.50 |
||
|
75533G
|
75533G
75533-75010 Moulding, Windshield, OutsideWINDSHIELD, OUTSIDE [07.2009 - 01.2013] ANF10 |
75533-75010 |
US $20.22 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.92 |
||
|
9090467033
|
9090467033
90904-67033 Clip(For Deck Board No.1) |
90904-67033 |
US $1.28 |
||
