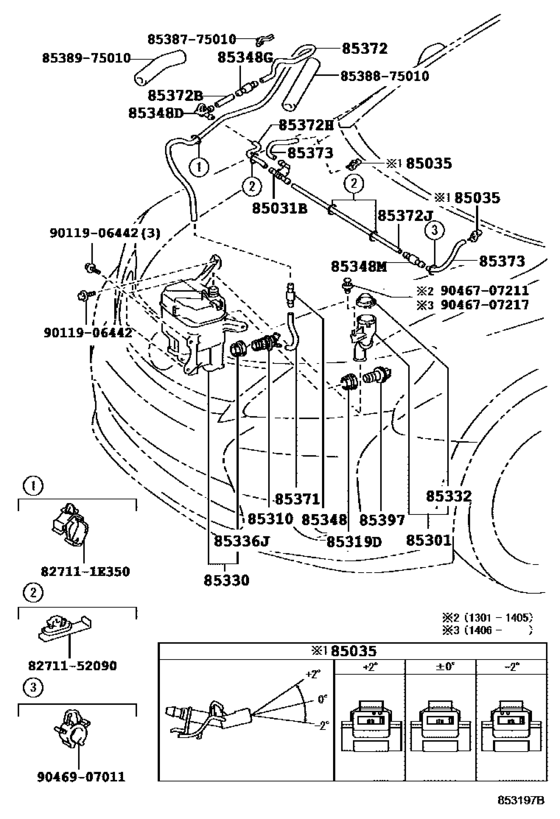

Windshield Washer ([01.2013 - ] ﾅｼ(ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ) (1301- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85321-28020 Valve Sub-Assy, Washer[07.2009 - 01.2013] ANF10 |
85321-28020 |
from US $10.47 |
||
|
85035
|
85035
85381-12330 Nozzle Sub-Assy, Washer[07.2009 - 01.2013] ANF10 角度 ０ |
85381-12330 |
from US $7.51 |
||
|
85035
|
85035
85381-12340
Nozzle Sub-Assy, Washer
[07.2009 - 01.2013] ANF10 角度 −２ |
85381-12340 |
— | ||
|
85035
|
85035
85381-12350 Nozzle Sub-Assy, Washer[07.2009 - 01.2013] ANF10 角度 ＋２ |
85381-12350 |
from US $7.51 |
||
|
85301
|
85301
85319-75010
Inlet Sub-Assy, Washer
[07.2009 - 01.2013] ANF10 |
85319-75010 |
— | ||
|
85310
|
85310
85330-60190 Motor And Pump Assy, Windshield Washer[07.2009 - 01.2013] ANF10 |
85330-60190 |
from US $81.40 |
||
|
85319D
|
85319D
85319-33230 Packing, Front Washer[07.2009 - 01.2013] ANF10 |
85319-33230 |
from US $2.53 |
||
|
85330
|
85330
85315-75030
Jar Assy, Windshield Washer
[01.2013 -] ANF10 |
85315-75030 |
— | ||
|
85330
|
85330
85355-75011 Jar Assy, Windshield WasherWINDSHIELD WASHER [07.2009 - 01.2013] ANF10 |
85355-75011 |
US $160.16 |
||
|
85330
|
85330
85355-75050 Jar Assy, Windshield Washer[01.2013 -] ANF10 寒冷地仕様 |
85355-75050 |
US $74.26 |
||
|
85332
|
85332
85316-75010
Cap, Windshield Washer Jar
[07.2009 - 01.2013] ANF10 |
85316-75010 |
— | ||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[07.2009 - 01.2013] ANF10 |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[07.2009 - 01.2013] ANF10 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85377-32220 Joint, Windshield Washer Elbow, No.1[07.2009 - 01.2013] ANF10 |
85377-32220 |
from US $0.84 |
||
|
85348G
|
85348G
85375-10260 Joint, Windshield Washer Hose, No.1[07.2009 - 01.2013] ANF10 |
85375-10260 |
from US $1.62 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[07.2009 - 01.2013] ANF10 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 ＊Ｈ，Ｌ＝１５０ |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 Ｌ＝１４５０ |
90099-33080 |
from US $6.16 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 ＊Ｈ，Ｌ＝４０ |
90099-33080 |
from US $6.16 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 ＊Ｈ，Ｌ＝２８０ |
90099-33080 |
from US $6.16 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 ＊Ｈ，Ｌ＝６７０ |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2009 - 01.2013] ANF10 ＊Ｈ，Ｌ＝２４０ |
90099-33080 |
from US $6.16 |
||
|
85397
|
85397
85397-30400 Switch Assy,level Warning[07.2009 - 01.2013] ANF10 |
85397-30400 |
from US $39.37 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
US $2.88 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.92 |
||
|
8538775010
|
8538775010
85387-75010
Clamp No.1 (for Windseield Washer)
|
85387-75010 |
— | ||
|
8538875010
|
8538875010
85388-75010
Clamp No.2 (for Windseield Washer)
|
85388-75010 |
— | ||
|
8538975010
|
8538975010
85389-75010
Packing, Windshield Washer Hose, No.1
|
85389-75010 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
|
9046707211
|
9046707211
90467-07211 Clip(For Reserve Tank Outlet Hose No.2) |
90467-07211 |
from US $0.88 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $1.28 |
||
|
9046907011
|
9046907011
90469-07011 Clamp No.1 (For Windseield Washer) |
90469-07011 |
from US $1.76 |
||
