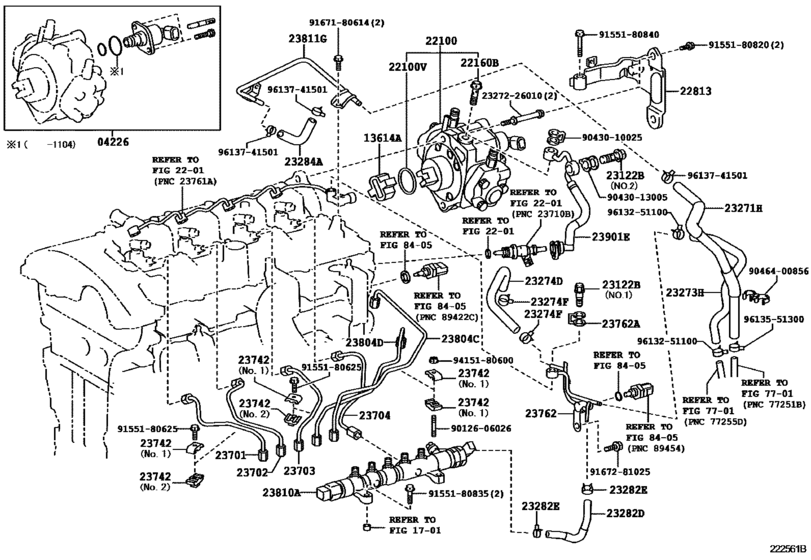

Injection Pump Assembly ([08.2010 - ] (1008- )2AD#) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ALE20
- grade
- LUX
- body
- SED
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- IS220D
- From
- 11.2005
- To
- 08.2012
- Vehicle Model
- IS220D
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-0L040
Valve Kit, Suction Control
[11.2005 - 08.2008] 2ADFHV..ALE20 |
04226-0L040 |
— | ||
|
04226
|
04226
04226-26040
Valve Kit, Suction Control
[04.2011 - 08.2012] 2AD#..ALE20 |
04226-26040 |
— | ||
|
13614A
|
13614A
13614-26010 Coupling, Supply Pump Drive, No.1SUPPLY PUMP DRIVE, NO.1 [11.2005 - 08.2008] 2ADFHV..ALE20 |
13614-26010 |
US $14.85 |
||
|
22100
|
22100
22100-0R030
Pump Assy, Injection Or Supply
[11.2005 - 10.2007] 2ADFHV..ALE20 |
22100-0R030 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-0R061
Pump Assy, Injection Or Supply
[11.2005 - 10.2007] 2ADFHV..ALE20 |
22100-0R061 |
— | ||
|
22100
|
22100
22100-0R031
Pump Assy, Injection Or Supply
[10.2007 - 08.2008] 2ADFHV..ALE20 |
22100-0R031 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-0R061
Pump Assy, Injection Or Supply
[10.2007 - 08.2008] 2ADFHV..ALE20 |
22100-0R061 |
— | ||
|
22100
|
22100
22100-0R060
Pump Assy, Injection Or Supply
[08.2010 - 04.2011] 2AD#..ALE20 |
22100-0R060 |
— | ||
| replacement | |||||
|
22100
|
22100
22100-0R061
Pump Assy, Injection Or Supply
[08.2010 - 04.2011] 2AD#..ALE20 |
22100-0R061 |
— | ||
|
22100
|
22100
22100-0R061
Pump Assy, Injection Or Supply
[04.2011 - 08.2012] 2AD#..ALE20 |
22100-0R061 |
— | ||
|
22100V
|
22100V
22193-0R020 Ring, O(For Injection Pump)O(FOR INJECTION PUMP) [11.2005 - 08.2008] 2ADFHV..ALE20 |
22193-0R020 |
US $3.84 |
||
|
22160B
|
22160B
22569-0R020 Screw[11.2005 - 08.2008] 2ADFHV..ALE20 |
22569-0R020 |
US $11.79 |
||
|
22813
|
22813
22813-26010 Protector, Injection Pump, No.1INJECTION PUMP, NO.1 [11.2005 - 08.2008] 2ADFHV..ALE20 |
22813-26010 |
US $32.03 |
||
|
23122B
|
23122B
23769-26020
Valve, Check
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23769-26020 |
— | ||
|
23122B
|
23122B
23769-26030 Valve, Fuel CheckCHECK [08.2010 - 08.2012] 2AD#..ALE20 NO.1 |
23769-26030 |
US $51.68 |
||
|
23122B
|
23122B
2376A-26010 Valve, Check[08.2010 - 12.2010] 2AD#..ALE20 NO.2 |
2376A-26010 |
US $94.64 |
||
| replacement | |||||
|
23122B
|
23122B
2376A-26030 Valve, Check[08.2010 - 12.2010] 2AD#..ALE20 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23122B
|
23122B
2376A-26020 Valve, Check[12.2010 - 10.2011] 2AD#..ALE20 NO.2 |
2376A-26020 |
US $94.64 |
||
| replacement | |||||
|
23122B
|
23122B
2376A-26030 Valve, Check[12.2010 - 10.2011] 2AD#..ALE20 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23122B
|
23122B
2376A-26030 Valve, Check[10.2011 - 08.2012] 2AD#..ALE20 NO.2 |
2376A-26030 |
US $87.32 |
||
|
23271H
|
23271H
23271-26030 Hose, Fuel, No.1FUEL, NO.1 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23271-26030 |
US $30.58 |
||
|
23273H
|
23273H
23273-26010 Hose, Fuel, No.2FUEL, NO.2 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23273-26010 |
US $16.31 |
||
|
23274D
|
23274D
23274-26020 Hose, Fuel, No.3FUEL, NO.3 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23274-26020 |
US $12.52 |
||
|
23274D
|
23274D
23274-26100
Hose, Fuel, No.3
[08.2010 - 08.2012] 2AD#..ALE20 |
23274-26100 |
— | ||
|
23274F
|
23274F
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[11.2005 - 08.2008] 2ADFHV..ALE20 |
96135-51100 |
from US $1.93 |
||
|
23282D
|
23282D
23282-26050 Hose, Fuel, No.4FUEL, NO.4 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23282-26050 |
US $11.42 |
||
|
23282D
|
23282D
23282-26080
Hose, Fuel, No.4
[08.2010 - 08.2012] 2AD#..ALE20 |
23282-26080 |
— | ||
|
23282E
|
23282E
90467-11076 Clamp Or Clip(For Air Hose, No.5)[11.2005 - 08.2008] 2ADFHV..ALE20 |
90467-11076 |
US $3.32 |
||
|
23284A
|
23284A
23284-26030 Hose, Fuel, No.5FUEL, NO.5 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23284-26030 |
US $11.94 |
||
|
23701
|
23701
23701-26040
Pipe Sub-Assy, Injection, No.1
[11.2005 - 03.2008] 2ADFHV..ALE20 |
23701-26040 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-26050
Pipe Sub-Assy, Injection, No.1
[11.2005 - 03.2008] 2ADFHV..ALE20 |
23701-26050 |
— | ||
|
23701
|
23701
23701-26050
Pipe Sub-Assy, Injection, No.1
[03.2008 - 08.2008] 2ADFHV..ALE20 |
23701-26050 |
— | ||
|
23702
|
23702
23702-26040
Pipe Sub-Assy, Injection, No.2
[11.2005 - 03.2008] 2ADFHV..ALE20 |
23702-26040 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-26050 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [11.2005 - 03.2008] 2ADFHV..ALE20 |
23702-26050 |
US $33.49 |
||
|
23702
|
23702
23702-26050 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [03.2008 - 08.2008] 2ADFHV..ALE20 |
23702-26050 |
US $33.49 |
||
|
23703
|
23703
23703-26040
Pipe Sub-Assy, Injection, No.3
[11.2005 - 03.2008] 2ADFHV..ALE20 |
23703-26040 |
— | ||
| replacement | |||||
|
23703
|
23703
23703-26050 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [11.2005 - 03.2008] 2ADFHV..ALE20 |
23703-26050 |
US $33.49 |
||
|
23703
|
23703
23703-26050 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [03.2008 - 08.2008] 2ADFHV..ALE20 |
23703-26050 |
US $33.49 |
||
|
23704
|
23704
23704-26010 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23704-26010 |
US $25.77 |
||
| replacement | |||||
|
23704
|
23704
23704-26080 Pipe Sub-Assy, Injection, No.4[11.2005 - 08.2008] 2ADFHV..ALE20 |
23704-26080 |
US $25.77 |
||
|
23704
|
23704
23704-26080 Pipe Sub-Assy, Injection, No.4[07.2010 - 08.2010] 2ADFHV..ALE20 |
23704-26080 |
US $25.77 |
||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[11.2005 - 08.2008] 2ADFHV..ALE20 NO.1 |
23742-27010 |
from US $10.20 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[11.2005 - 08.2008] 2ADFHV..ALE20 NO.2 |
23742-58020 |
from US $13.30 |
||
|
23762
|
23762
23762-26010 Pipe, Nozzle Leakage, No.2NOZZLE LEAKAGE, NO.2 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23762-26010 |
US $101.92 |
||
|
23762
|
23762
23762-26030
Pipe, Nozzle Leakage, No.2
[08.2010 - 08.2012] 2AD#..ALE20 |
23762-26030 |
— | ||
|
23762A
|
23762A
90904-30012 Gasket, Nozzle Leakage Pipe No.2[11.2005 - 08.2008] 2ADFHV..ALE20 |
90904-30012 |
from US $5.28 |
||
|
23804C
|
23804C
23804-26020
Pipe Sub-Assy, Fuel Inlet
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23804-26020 |
— | ||
|
23804C
|
23804C
23804-26080
Pipe Sub-Assy, Fuel Inlet
[08.2010 - 08.2012] 2AD#..ALE20 |
23804-26080 |
— | ||
|
23804D
|
23804D
23804-26010
Pipe Sub-Assy, Fuel, No.4
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23804-26010 |
— | ||
| replacement | |||||
|
23804D
|
23804D
23804-26070 Pipe Sub-Assy, Fuel, No.4[11.2005 - 08.2008] 2ADFHV..ALE20 |
23804-26070 |
US $63.54 |
||
|
23804D
|
23804D
23804-26070 Pipe Sub-Assy, Fuel, No.4[07.2010 - 08.2010] 2ADFHV..ALE20 |
23804-26070 |
US $63.54 |
||
|
23810A
|
23810A
23810-0R030
Rail Assy, Common
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23810-0R030 |
— | ||
|
23810A
|
23810A
23810-0R050
Rail Assy, Common
[08.2010 - 08.2012] 2AD#..ALE20 |
23810-0R050 |
— | ||
|
23811G
|
23811G
23811-26020 Pipe, Fuel, No.1FUEL, NO.1 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23811-26020 |
US $36.25 |
||
|
23901E
|
23901E
23901-26020 Tube Sub-Assy, FuelFUEL [11.2005 - 08.2008] 2ADFHV..ALE20 |
23901-26020 |
US $80.08 |
||
|
23901E
|
23901E
23901-26040 Tube Sub-Assy, FuelFUEL [08.2010 - 08.2012] 2AD#..ALE20 |
23901-26040 |
US $119.39 |
||
|
2327226010
|
2327226010
23272-26010 Valve, Thermostatic Vacuum Switching, No.2 |
23272-26010 |
US $6.12 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.72 |
||
|
9043010025
|
9043010025
90430-10025 Gasket(For Turbo Oil Inlet Pipe)NOZZLE LEAKAGE PIPE NO.2 |
90430-10025 |
from US $0.88 |
||
|
9043013005
|
9043013005
90430-13005 GASKET |
90430-13005 |
US $1.44 |
||
|
9046400856
|
9046400856
90464-00856 Clamp |
90464-00856 |
US $1.46 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.74 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $1.28 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
from US $1.23 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9613741501
|
9613741501
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96137-41501 |
from US $1.92 |
||
