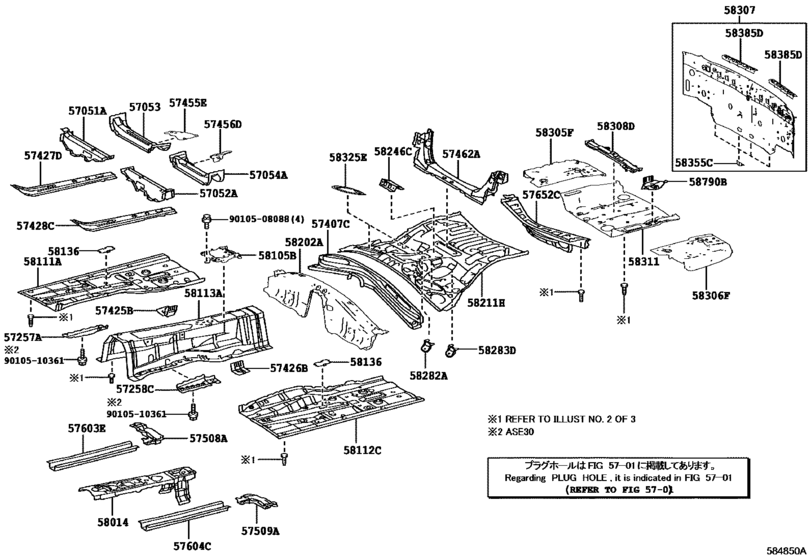

Floor Pan & Lower Back Panel ([04.2013 - ] ﾌﾛｱﾊﾟﾝ & ﾛﾜｰﾊﾞｯｸﾊﾟﾈﾙ (1304- )ASE30,GSE30,31) Diagram Toyota LEXUS IS
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- GSE30
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2013
- To
- 08.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-30100 Member Sub-Assy, Front Floor Cross, Rh[04.2013 - 08.2015] AVE30,GSE3# |
57051-30100 |
US $57.51 |
||
|
57052A
|
57052A
57052-30100 Member Sub-Assy, Front Floor Cross, Lh[04.2013 - 08.2015] AVE30,GSE30,31 |
57052-30100 |
US $57.51 |
||
|
57053
|
57053
57053-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[04.2013 - 08.2015] AVE30,GSE3# |
57053-30080 |
US $51.83 |
||
|
57054A
|
57054A
57054-30080 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[04.2013 - 08.2015] AVE30,GSE3# |
57054-30080 |
US $51.83 |
||
|
57257A
|
57257A
57257-30041 Bracket, Engine Rear Mounting Member, Rh[04.2013 - 05.2014] AVE30,GSE30,31 |
57257-30041 |
US $42.08 |
||
|
57257A
|
57257A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[05.2014 - 08.2015] AVE30,GSE30,31 |
57257-30042 |
US $40.48 |
||
|
57258C
|
57258C
57258-30091 Bracket, Engine Rear Mounting Member, Lh[04.2013 - 08.2015] AVE30,GSE30,31 |
57258-30091 |
US $38.15 |
||
|
57407C
|
57407C
57407-53010 Member Sub-Assy, Center Floor Cross, No.1[04.2013 - 08.2015] AVE30,GSE3# |
57407-53010 |
US $81.54 |
||
|
57425B
|
57425B
57425-30030 Reinforcement, Front Floor, No.2 Rh[04.2013 - 08.2015] AVE30,GSE3# |
57425-30030 |
US $13.40 |
||
|
57426B
|
57426B
57426-30030 Reinforcement, Front Floor, No.2 Lh[04.2013 - 08.2015] AVE30,GSE3# |
57426-30030 |
US $13.40 |
||
|
57427D
|
57427D
57427-30040
Reinforcement, Front Floor, No.3 Rh
[04.2013 - 11.2013] AVE30,GSE30,31 |
57427-30040 |
— | ||
| replacement | |||||
|
57427D
|
57427D
57427-30041 Reinforcement, Front Floor, No.3 Rh[04.2013 - 11.2013] AVE30,GSE30,31 |
57427-30041 |
US $82.99 |
||
|
57427D
|
57427D
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2013 - 08.2015] AVE30,GSE3# |
57427-30041 |
US $82.99 |
||
|
57428C
|
57428C
57427-30040
Reinforcement, Front Floor, No.3 Rh
[04.2013 - 11.2013] AVE30,GSE3# |
57427-30040 |
— | ||
| replacement | |||||
|
57428C
|
57428C
57427-30041 Reinforcement, Front Floor, No.3 Rh[04.2013 - 11.2013] AVE30,GSE3# |
57427-30041 |
US $82.99 |
||
|
57428C
|
57428C
57427-30041 Reinforcement, Front Floor, No.3 Rh[12.2013 - 08.2015] AVE30,GSE3# |
57427-30041 |
US $82.99 |
||
|
57455E
|
57455E
57455-30060 Plate, Front Floor Cross Member, No.3 Rh[04.2013 - 08.2015] AVE30,GSE3# |
57455-30060 |
US $6.55 |
||
|
57456D
|
57456D
57456-30040 Plate, Front Floor Cross Member, No.3 Lh[04.2013 - 08.2015] AVE30,GSE3# |
57456-30040 |
US $6.55 |
||
|
57462A
|
57462A
57405-53020 Member, Center Floor Cross, No.2[04.2013 - 08.2015] AVE30,GSE3# |
57405-53020 |
US $165.98 |
||
|
57508A
|
57508A
57508-30030 Reinforcement Sub-Assy, Front Floor, Rh[04.2013 - 09.2013] AVE30,GSE3# |
57508-30030 |
US $36.55 |
||
| replacement | |||||
|
57508A
|
57508A
57508-30031 Reinforcement Sub-Assy, Front Floor, Rh[04.2013 - 09.2013] AVE30,GSE3# |
57508-30031 |
US $33.20 |
||
|
57508A
|
57508A
57508-30031 Reinforcement Sub-Assy, Front Floor, Rh[10.2013 - 08.2015] AVE30,GSE3# |
57508-30031 |
US $33.20 |
||
|
57509A
|
57509A
57509-30030
Reinforcement Sub-Assy, Front Floor, Lh
[04.2013 - 09.2013] AVE30,GSE3# |
57509-30030 |
— | ||
| replacement | |||||
|
57509A
|
57509A
57509-30031 Reinforcement Sub-Assy, Front Floor, Lh[04.2013 - 09.2013] AVE30,GSE3# |
57509-30031 |
US $33.20 |
||
|
57509A
|
57509A
57509-30031 Reinforcement Sub-Assy, Front Floor, Lh[10.2013 - 08.2015] AVE30,GSE3# |
57509-30031 |
US $33.20 |
||
|
57603E
|
57603E
57603-53020 Extension Sub-Assy, Rear Side Member, Rh[04.2013 - 08.2015] AVE30,GSE3# |
57603-53020 |
US $55.33 |
||
|
57604C
|
57604C
57603-53020 Extension Sub-Assy, Rear Side Member, Rh[04.2013 - 08.2015] AVE30,GSE3# |
57603-53020 |
US $55.33 |
||
|
57652C
|
57652C
57652-30140 Member, Rear Floor Cross, No.1[04.2013 - 08.2015] GSE3# |
57652-30140 |
US $138.32 |
||
|
58014
|
58014
58014-30092 Panel Sub-Assy, Front Floor, Rear Lower[04.2013 - 08.2015] AVE30,GSE30,31 |
58014-30092 |
US $144.14 |
||
|
58105B
|
58105B
58105-53020 Panel Sub-Assy, Front Floor Rear Upper Sub[04.2013 - 08.2015] AVE30,GSE3# |
58105-53020 |
US $46.74 |
||
|
58111A
|
58111A
58111-53050 Pan, Front Floor, Rh[04.2013 - 09.2013] AVE30,GSE3# |
58111-53050 |
US $270.82 |
||
|
58111A
|
58111A
58111-53051
Pan, Front Floor, Rh
[10.2013 - 05.2014] AVE30,GSE30,31 |
58111-53051 |
— | ||
| replacements | |||||
|
58111A
|
58111A
57257-30042 Bracket, Engine Rear Mounting Member, Rh[10.2013 - 05.2014] AVE30,GSE30,31 |
57257-30042 |
US $40.48 |
||
|
58111A
|
58111A
57257-30070 Bracket, Engine Rear Mounting Member, Rh[10.2013 - 05.2014] AVE30,GSE30,31 |
57257-30070 |
US $37.42 |
||
|
58111A
|
58111A
58111-53060 Pan, Front Floor, Rh[10.2013 - 05.2014] AVE30,GSE30,31 |
58111-53060 |
US $246.06 |
||
|
58111A
|
58111A
87212-30431 Duct, Air, Rear No.1[10.2013 - 05.2014] AVE30,GSE30,31 |
87212-30431 |
US $57.51 |
||
|
58111A
|
58111A
58111-53060 Pan, Front Floor, Rh[05.2014 - 08.2015] AVE30,GSE30,31 |
58111-53060 |
US $246.06 |
||
|
58112C
|
58112C
58112-53050
Pan, Front Floor, Lh
[04.2013 - 09.2013] AVE30,GSE30,31 |
58112-53050 |
— | ||
| replacement | |||||
|
58112C
|
58112C
58112-53051 Pan, Front Floor, Lh[04.2013 - 09.2013] AVE30,GSE30,31 |
58112-53051 |
US $246.06 |
||
|
58112C
|
58112C
58112-53051 Pan, Front Floor, Lh[10.2013 - 08.2015] AVE30,GSE30,31 |
58112-53051 |
US $246.06 |
||
|
58113A
|
58113A
58113-53050 Panel, Front Floor, Center[04.2013 - 08.2015] AVE30,GSE30,31 |
58113-53050 |
US $346.53 |
||
|
58136
|
58136
58136-51010 Cover, Front Floor Hole[04.2013 - 08.2015] AVE30,GSE3# |
58136-51010 |
US $2.04 |
||
|
58202A
|
58202A
58202-53010 Pan Sub-Assy, Center Floor, Front[04.2013 - 08.2015] AVE30,GSE3# |
58202-53010 |
US $144.14 |
||
|
58211H
|
58211H
58211-30400 Pan, Center Floor[04.2013 - 08.2015] GSE3# |
58211-30400 |
US $346.53 |
||
|
58246C
|
58246C
58246-30020 Bracket, Rear Seat Hinge, Center No.2[04.2013 - 08.2015] AVE30,GSE3# |
58246-30020 |
US $14.56 |
||
|
58282A
|
58282A
58282-30040 Base, Belt Anchor To Floor Pan, No.3 Rh[04.2013 - 08.2015] AVE30,GSE3# |
58282-30040 |
US $6.70 |
||
|
58283D
|
58283D
58283-30030 Base, Belt Anchor To Floor Pan, No.3 Lh[04.2013 - 08.2015] AVE30,GSE3# |
58283-30030 |
US $6.70 |
||
|
58305F
|
58305F
58305-53010 Panel Sub-Assy, Rear Floor Side, Rh[04.2013 - 08.2015] AVE30,GSE3# |
58305-53010 |
US $57.37 |
||
|
58306F
|
58306F
58306-53010
Panel Sub-Assy, Rear Floor Side, Lh
[04.2013 - 08.2015] GSE3# |
58306-53010 |
— | ||
| replacements | |||||
|
58306F
|
58306F
58306-53011 Panel Sub-Assy, Rear Floor Side, Lh[04.2013 - 08.2015] GSE3# |
58306-53011 |
US $62.01 |
||
|
58306F
|
58306F
90950-01833 PLUG HOLE[04.2013 - 08.2015] GSE3# |
90950-01833 |
from US $1.92 |
||
|
58307
|
58307
58307-53080
Panel Sub-Assy, Body Lower Back
[04.2013 - 08.2015] GSE3# |
58307-53080 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-53081 Panel Sub-Assy, Body Lower Back[04.2013 - 08.2015] GSE3# |
58307-53081 |
from US $244.61 |
||
|
58308D
|
58308D
58308-30030 Bracket Sub-Assy, Rear Floor Crossmember[04.2013 - 08.2015] GSE3# |
58308-30030 |
US $28.54 |
||
|
58311
|
58311
58311-53040 Pan, Rear Floor[04.2013 - 08.2015] GSE3# |
58311-53040 |
US $144.14 |
||
|
58325E
|
58325E
58325-30030 Cover, Rear Floor Service Hole[04.2013 - 08.2015] AVE30,GSE3# |
58325-30030 |
US $19.51 |
||
|
58355C
|
58355C
58355-53030 Bracket, Rear Bumper Arm[04.2013 - 08.2015] AVE30,GSE3# |
58355-53030 |
US $2.62 |
||
|
58385D
|
58385D
58385-30080 Bracket, Rear Bumper Cover[04.2013 - 08.2015] AVE30,GSE3# |
58385-30080 |
US $11.07 |
||
|
58790B
|
58790B
58790-30030 Carrier Assy, Jack[04.2013 - 08.2015] GSE3# |
58790-30030 |
from US $6.59 |
||
|
9010508088
|
9010508088
90105-08088 New Genuine Part |
90105-08088 |
US $1.76 |
||
|
9010510361
|
9010510361
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
