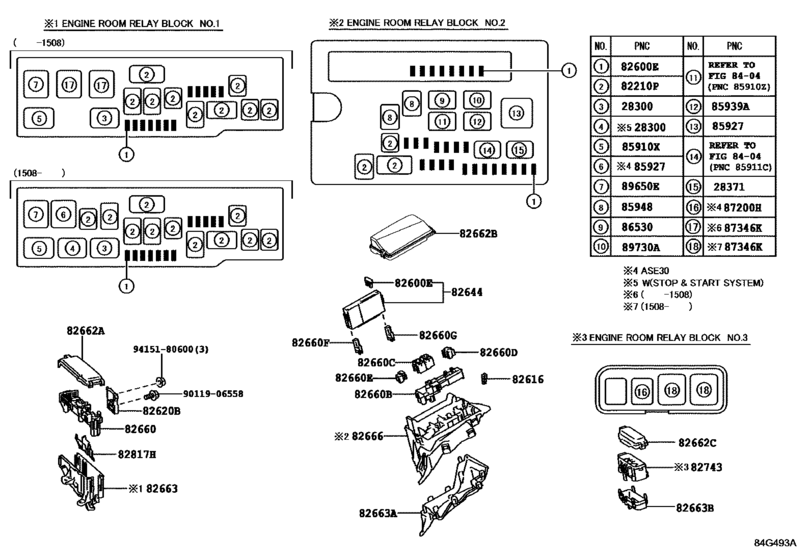

Switch & Relay & Computer ([04.2013 - 10.2016] ENGINE ROOM RELAY BLOCK (1304-1610)GSE30..LHD ; (1304-1610)ASE30,GSE31.. GCC,GEN ; (1304-1611)ASE30..CHI) Diagram Toyota LEXUS IS
- Year
- 2013 - 2015
- Sales region
- General
- Frame
- GSE30
- grade
- LUX
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS250
- From
- 04.2013
- To
- 08.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- IS250
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[01.2014 - 08.2015] 2GRFSE,4GRFSE..GSE3# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[04.2013 - 12.2013] 2GRFSE,4GRFSE..GSE3# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[04.2013 - 12.2013] 2GRFSE,4GRFSE..GSE3# |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-02027 Relay[04.2013 - 08.2015] 2ARFSE,2GRFSE,4GRFSE..AVE30,GSE3# |
90987-02027 |
from US $44.54 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[04.2013 - 08.2015] GSE3# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[04.2013 - 08.2015] GSE3# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[04.2013 - 08.2015] GSE3# 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[04.2013 - 08.2015] AVE30,GSE3# 50A-30A-50A,FEMALE |
90982-08302 |
US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[04.2013 - 08.2015] AVE30,GSE3# 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[04.2013 - 08.2015] AVE30,GSE3# 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[04.2013 - 08.2015] AVE30,GSE3# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[04.2013 - 08.2015] AVE30,GSE3# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[04.2013 - 08.2015] AVE30,GSE3# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[04.2013 - 08.2015] AVE30,GSE3# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[04.2013 - 08.2015] AVE30,GSE3# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[04.2013 - 08.2015] AVE30,GSE3# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[04.2013 - 08.2015] AVE30,GSE3# |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-53010 Block Assy, Fusible Link[04.2013 - 08.2015] GSE3#..LHD |
82620-53010 |
from US $19.92 |
||
|
82644
|
82644
82644-53010 Computer, Semiconductor Power Integration[04.2013 - 08.2015] AVE30,GSE3# |
82644-53010 |
from US $161.62 |
||
|
82660
|
82660
82660-53030
Block Assy, Relay, Engine Room
[04.2013 - 08.2015] GSE3#..LHD |
82660-53030 |
— | ||
|
82660B
|
82660B
82660-30C70 Block Assy, Relay[04.2013 - 08.2015] GSE3# |
82660-30C70 |
US $48.34 |
||
|
82660C
|
82660C
82660-75010 Block Assy, RelayRELAY [04.2013 - 08.2015] GSE3# |
82660-75010 |
US $11.50 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[04.2013 - 08.2015] AVE30,GSE3# |
82660-0H070 |
US $6.99 |
||
|
82660E
|
82660E
82660-0C110 Block Assy, RelayRELAY [04.2013 - 08.2015] AVE30,GSE3# |
82660-0C110 |
from US $7.13 |
||
|
82660F
|
82660F
82660-30C00 Block Assy, Relay[04.2013 - 08.2015] AVE30,GSE3# |
82660-30C00 |
US $4.66 |
||
|
82660G
|
82660G
82660-30D50 Block Assy, Relay[04.2013 - 08.2015] AVE30,GSE3# |
82660-30D50 |
US $4.66 |
||
|
82662A
|
82662A
82662-53250
Cover, Relay Block, Upper, No.1
[04.2013 - 08.2015] GSE3#..LHD |
82662-53250 |
— | ||
|
82662B
|
82662B
82662-53270 Cover, Relay Block, Upper, No.2[04.2013 - 08.2015] GSE3# |
82662-53270 |
US $25.33 |
||
|
82663
|
82663
82663-53080
Cover, Relay Block, Lower
[04.2013 - 08.2015] GSE3#..LHD |
82663-53080 |
— | ||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[04.2013 - 08.2015] GSE3# |
82663-30320 |
from US $28.83 |
||
|
82666
|
82666
82666-30C30 Holder, Connector[04.2013 - 08.2015] GSE3# |
82666-30C30 |
from US $49.80 |
||
|
82817H
|
82817H
82817-53B60
Protector, Wiring Harness
[04.2013 - 08.2015] GSE3#..LHD |
82817-53B60 |
— | ||
|
85910X
|
85910X
90987-02027 Relay[04.2013 - 08.2015] AVE30,GSE3#..ARL,CHI,GEN |
90987-02027 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[04.2013 - 08.2015] AVE30,GSE3# |
90987-02025 |
from US $44.54 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[04.2013 - 08.2015] AVE30,GSE3# |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[04.2013 - 08.2015] AVE30,GSE3# |
90987-02027 |
from US $44.54 |
||
|
89650E
|
89650E
90987-02025 Relay[04.2013 - 08.2015] AVE30,GSE3# |
90987-02025 |
from US $44.54 |
||
|
89730A
|
89730A
90987-02027 Relay[04.2013 - 08.2015] AVE30,GSE3# |
90987-02027 |
from US $44.54 |
||
|
9011906558
|
9011906558
90119-06558 BOLT WWASHER |
90119-06558 |
US $1.12 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
