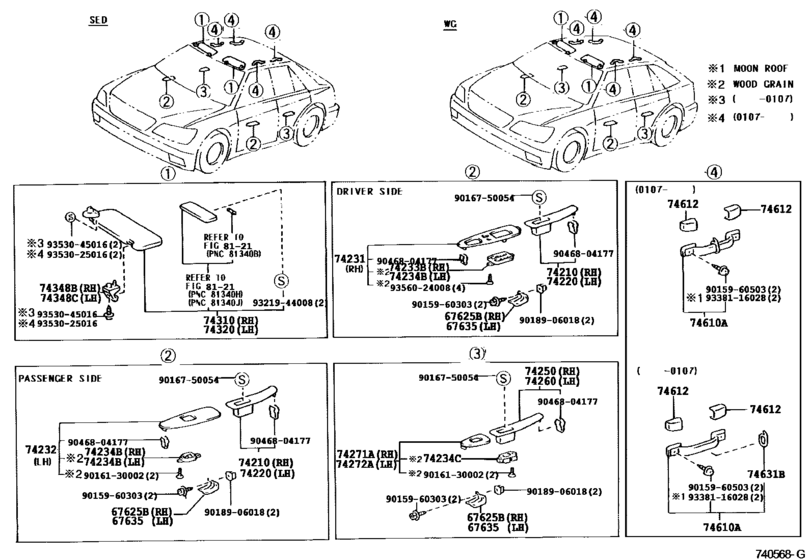

Armrest & Visor ([01.1999 - ] (9901- )) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67625B
|
67625B
67625-53010 Bracket, Door Trim, No.1 Rh[07.2001 -] GXE10,JCE10 |
67625-53010 |
US $9.61 |
||
|
67635
|
67635
67625-53010 Bracket, Door Trim, No.1 Rh[07.2001 -] GXE10,JCE10 |
67625-53010 |
US $9.61 |
||
|
74210
|
74210
74210-53010-A0 Armrest Assy, Front, Rh[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74210-53010-A0 |
US $85.90 |
||
|
74210
|
74210
74210-53010-C0
Armrest Assy, Front, Rh
[07.2001 -] GXE10,JCE10 BLACK,TRIM2# |
74210-53010-C0 |
— | ||
|
74220
|
74220
74220-53010-A0 Armrest Assy, Front, Lh[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74220-53010-A0 |
US $85.90 |
||
|
74220
|
74220
74220-53010-C0
Armrest Assy, Front, Lh
[07.2001 -] GXE10,JCE10 BLACK,TRIM2# |
74220-53010-C0 |
— | ||
|
74231
|
74231
74232-53020
Panel, Front Armrest Base, Upper Lh
[07.2001 - 08.2003] GXE10,JCE10..LHD |
74232-53020 |
— | ||
|
74231
|
74231
74232-53090 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [08.2003 -] GXE10,JCE10..LHD |
74232-53090 |
US $43.24 |
||
|
74231
|
74231
74240-53010
Panel, Front Armrest Base, Upper Rh
[07.2001 -] GXE10,JCE10..LHD WOOD GRAIN |
74240-53010 |
— | ||
|
74232
|
74232
74230-53010 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER RH [07.2001 -] GXE10,JCE10..LHD WOOD GRAIN |
74230-53010 |
US $283.92 |
||
|
74232
|
74232
74231-53020
Panel, Front Armrest Base, Upper Rh
[07.2001 - 08.2003] GXE10,JCE10..LHD |
74231-53020 |
— | ||
|
74232
|
74232
74231-53070 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER RH [08.2003 -] GXE10,JCE10..LHD |
74231-53070 |
US $39.31 |
||
|
74233B
|
74233B
74234-53010 Panel, Front Door Armrest Base, Lower RhFRONT DOOR ARMREST BASE, LOWER RH [07.2001 -] GXE10,JCE10..LHD |
74234-53010 |
US $11.36 |
||
|
74234B
|
74234B
74233-53010 Panel, Front Door Armrest Base, Lower LhFRONT DOOR ARMREST BASE, LOWER RH [07.2001 -] GXE10,JCE10..LHD |
74233-53010 |
US $14.71 |
||
|
74234C
|
74234C
74234-53010 Panel, Front Door Armrest Base, Lower RhFRONT DOOR ARMREST BASE, LOWER RH [07.2001 -] GXE10,JCE10 |
74234-53010 |
US $11.36 |
||
|
74250
|
74250
74250-53010-A0 Armrest Assy, Rear Rh[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74250-53010-A0 |
US $85.90 |
||
|
74250
|
74250
74250-53010-C0 Armrest Assy, Rear Rh[07.2001 -] GXE10,JCE10 BLACK,TRIM2# |
74250-53010-C0 |
US $85.90 |
||
|
74260
|
74260
74260-53010-A0 Armrest Assy, Rear Lh[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74260-53010-A0 |
US $85.90 |
||
|
74260
|
74260
74260-53010-C0 Armrest Assy, Rear Lh[07.2001 -] GXE10,JCE10 BLACK,TRIM2# |
74260-53010-C0 |
US $85.90 |
||
|
74271A
|
74271A
74270-53010 Panel, Rear Door Armrest Base, Upper RhREAR DOOR ARMREST BASE, UPPER RH [07.2001 -] GXE10,JCE10 WOOD GRAIN |
74270-53010 |
US $189.28 |
||
|
74271A
|
74271A
74271-53010 Panel, Rear Door Armrest Base, Upper Rh[07.2001 - 08.2003] GXE10,JCE10 |
74271-53010 |
US $49.13 |
||
|
74271A
|
74271A
74271-53040 Panel, Rear Door Armrest Base, Upper Rh[08.2003 -] GXE10,JCE10 |
74271-53040 |
US $26.64 |
||
|
74272A
|
74272A
74270-53010 Panel, Rear Door Armrest Base, Upper RhREAR DOOR ARMREST BASE, UPPER RH [07.2001 -] GXE10,JCE10 WOOD GRAIN |
74270-53010 |
US $189.28 |
||
|
74272A
|
74272A
74271-53010 Panel, Rear Door Armrest Base, Upper Rh[07.2001 - 08.2003] GXE10,JCE10 |
74271-53010 |
US $49.13 |
||
|
74272A
|
74272A
74271-53040 Panel, Rear Door Armrest Base, Upper Rh[08.2003 -] GXE10,JCE10 |
74271-53040 |
US $26.64 |
||
|
74310
|
74310
74310-53080-A0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD IVORY,TRIM0# |
74310-53080-A0 |
US $198.02 |
||
| replacement | |||||
|
74310
|
74310
74310-53081-A0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD IVORY,TRIM0# |
74310-53081-A0 |
US $198.02 |
||
|
74310
|
74310
74310-53080-B0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74310-53080-B0 |
US $198.02 |
||
| replacement | |||||
|
74310
|
74310
74310-53081-B0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74310-53081-B0 |
US $198.02 |
||
|
74310
|
74310
74310-53081-A0 Visor Assy, RhRH [03.2002 - 07.2005] GXE10,JCE10..LHD IVORY,TRIM0# |
74310-53081-A0 |
US $198.02 |
||
|
74310
|
74310
74310-53081-B0 Visor Assy, RhRH [03.2002 - 07.2005] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74310-53081-B0 |
US $198.02 |
||
|
74310
|
74310
74310-53110-A0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74310-53110-A0 |
US $198.02 |
||
| replacement | |||||
|
74310
|
74310
74310-53111-A0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74310-53111-A0 |
US $198.02 |
||
|
74310
|
74310
74310-53110-B0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74310-53110-B0 |
US $198.02 |
||
| replacement | |||||
|
74310
|
74310
74310-53111-B0 Visor Assy, RhRH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74310-53111-B0 |
US $198.02 |
||
|
74310
|
74310
74310-53111-A0 Visor Assy, RhRH [03.2002 - 07.2005] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74310-53111-A0 |
US $198.02 |
||
|
74310
|
74310
74310-53111-B0 Visor Assy, RhRH [03.2002 - 07.2005] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74310-53111-B0 |
US $198.02 |
||
|
74320
|
74320
74320-53110-A0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74320-53110-A0 |
US $198.02 |
||
| replacement | |||||
|
74320
|
74320
74320-53111-A0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74320-53111-A0 |
US $198.02 |
||
|
74320
|
74320
74320-53110-B0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74320-53110-B0 |
US $198.02 |
||
| replacement | |||||
|
74320
|
74320
74320-53111-B0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74320-53111-B0 |
US $198.02 |
||
|
74320
|
74320
74320-53111-A0 Visor Assy, LhLH [03.2002 - 07.2005] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,IVORY,TRIM0# |
74320-53111-A0 |
US $198.02 |
||
|
74320
|
74320
74320-53111-B0 Visor Assy, LhLH [03.2002 - 07.2005] GXE10,JCE10..LHD..SED..ATM TAIWAN SPEC,MEDIUM CHARCOAL,TRIM2# |
74320-53111-B0 |
US $198.02 |
||
|
74320
|
74320
74320-53160-A0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD IVORY,TRIM0# |
74320-53160-A0 |
US $198.02 |
||
| replacement | |||||
|
74320
|
74320
74320-53161-A0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD IVORY,TRIM0# |
74320-53161-A0 |
US $198.02 |
||
|
74320
|
74320
74320-53160-B0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74320-53160-B0 |
US $198.02 |
||
| replacement | |||||
|
74320
|
74320
74320-53161-B0 Visor Assy, LhLH [07.2001 - 03.2002] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74320-53161-B0 |
US $198.02 |
||
|
74320
|
74320
74320-53161-A0 Visor Assy, LhLH [03.2002 - 07.2005] GXE10,JCE10..LHD IVORY,TRIM0# |
74320-53161-A0 |
US $198.02 |
||
|
74320
|
74320
74320-53161-B0 Visor Assy, LhLH [03.2002 - 07.2005] GXE10,JCE10..LHD MEDIUM CHARCOAL,TRIM2# |
74320-53161-B0 |
US $198.02 |
||
|
74348B
|
74348B
74348-22020-A2 Holder, Visor[07.2001 - 07.2005] GXE10,JCE10 IVORY,TRIM0# |
74348-22020-A2 |
US $10.05 |
||
|
74348B
|
74348B
74348-22020-B9 Holder, Visor[07.2001 - 07.2005] GXE10,JCE10 MD.CHARCOAL,TRIM2# |
74348-22020-B9 |
from US $7.52 |
||
|
74348C
|
74348C
74348-22020-A2 Holder, Visor[07.2001 - 07.2005] GXE10,JCE10 IVORY,TRIM0# |
74348-22020-A2 |
US $10.05 |
||
|
74348C
|
74348C
74348-22020-B9 Holder, Visor[07.2001 - 07.2005] GXE10,JCE10 MD.CHARCOAL,TRIM2# |
74348-22020-B9 |
from US $7.52 |
||
|
74610A
|
74610A
74610-30210-A0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 W(MOON ROOF),IVORY,TRIM0# |
74610-30210-A0 |
US $30.87 |
||
|
74610A
|
74610A
74610-30210-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 W(MOON ROOF),MD.CHARCOAL,TRIM2# |
74610-30210-B0 |
US $30.87 |
||
|
74610A
|
74610A
74610-51010-A0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 W(MOON ROOF),IVORY,TRIM0#,REAR |
74610-51010-A0 |
US $30.87 |
||
| replacement | |||||
|
74610A
|
74610A
74610-51010-B1 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 W(MOON ROOF),IVORY,TRIM0#,REAR |
74610-51010-B1 |
US $30.87 |
||
|
74610A
|
74610A
74610-51010-B1 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 W(MOON ROOF),MD.CHARCOAL,TRIM2#,REAR |
74610-51010-B1 |
US $30.87 |
||
|
74610A
|
74610A
74610-53010-A0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74610-53010-A0 |
US $30.87 |
||
| replacement | |||||
|
74610A
|
74610A
74610-53010-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74610-53010-B0 |
US $30.87 |
||
|
74610A
|
74610A
74610-53010-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 MD.CHARCOAL,TRIM2# |
74610-53010-B0 |
US $30.87 |
||
|
74610A
|
74610A
74610-53020-A0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 IVORY,TRIM0#,REAR |
74610-53020-A0 |
US $30.87 |
||
| replacements | |||||
|
74610A
|
74610A
74610-53010-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 IVORY,TRIM0#,REAR |
74610-53010-B0 |
US $30.87 |
||
|
74610A
|
74610A
74631-33020-B2 Hook, Coat[07.2001 -] GXE10,JCE10 IVORY,TRIM0#,REAR |
74631-33020-B2 |
US $10.05 |
||
|
74610A
|
74610A
74610-53020-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 MD.CHARCOAL,TRIM2#,REAR |
74610-53020-B0 |
US $30.87 |
||
| replacements | |||||
|
74610A
|
74610A
74610-53010-B0 Grip Sub-Assy, Assist[07.2001 -] GXE10,JCE10 MD.CHARCOAL,TRIM2#,REAR |
74610-53010-B0 |
US $30.87 |
||
|
74610A
|
74610A
74631-33020-B2 Hook, Coat[07.2001 -] GXE10,JCE10 MD.CHARCOAL,TRIM2#,REAR |
74631-33020-B2 |
US $10.05 |
||
|
74612
|
74612
74612-22050-A3
Cover, Assist Grip
[07.2001 -] GXE10,JCE10 IVORY,TRIM0# |
74612-22050-A3 |
— | ||
|
74612
|
74612
74612-22050-B7 Cover, Assist Grip[07.2001 -] GXE10,JCE10 MD.CHARCOAL,TRIM2# |
74612-22050-B7 |
US $4.02 |
||
|
74612
|
74612
74612-30171-A0 Cover, Assist Grip[07.2001 -] GXE10,JCE10 W(MOON ROOF),IVORY,TRIM0# |
74612-30171-A0 |
US $2.91 |
||
|
74612
|
74612
74612-30171-B0 Cover, Assist Grip[07.2001 -] GXE10,JCE10 W(MOON ROOF),MD.CHARCOAL,TRIM2# |
74612-30171-B0 |
US $3.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960503
|
9015960503
90159-60503 New Genuine Part |
90159-60503 |
US $1.31 |
||
|
9016130002
|
9016130002
90161-30002 Screw |
90161-30002 |
US $1.92 |
||
|
9016750054
|
9016750054
90167-50054 New Genuine Part |
90167-50054 |
US $1.76 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9321944008
|
9321944008
93219-44008 New Genuine Part |
93219-44008 |
US $1.46 |
||
|
9338116028
|
9338116028
93381-16028 SCREW |
93381-16028 |
US $1.28 |
||
|
9353025016
|
9353025016
93530-25016 New Genuine Part |
93530-25016 |
US $2.72 |
||
|
9353045016
|
9353045016
93530-45016 New Genuine Part |
93530-45016 |
from US $1.75 |
||
|
9356024008
|
9356024008
93560-24008 New Genuine Part |
93560-24008 |
US $1.31 |
||
