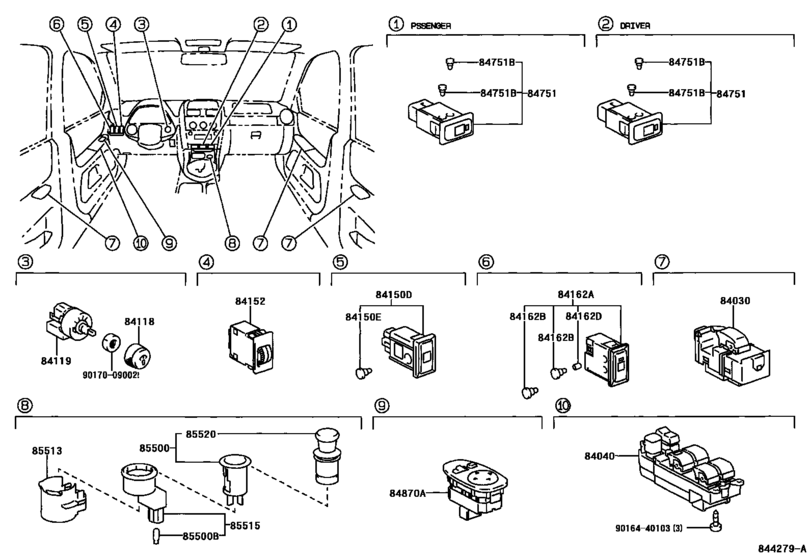

Switch & Relay & Computer ([01.1999 - ] INSTRUMENT PANEL (9901- )LHD) Diagram Toyota LEXUS IS
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- IS300
- From
- 07.2001
- To
- 07.2005
- Vehicle Model
- IS300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84030
|
84030
84030-53010-C0 Switch Assy,multiplex Network[07.2001 -] GXE10,JCE10 BLACK,TRIM0#,2# |
84030-53010-C0 |
US $70.76 |
||
|
84040
|
84040
84040-53021-C0 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [07.2001 - 08.2004] GXE10,JCE10..LHD W(POWER WINDOW),BLACK,TRIM0#,2# |
84040-53021-C0 |
US $331.97 |
||
| replacement | |||||
|
84040
|
84040
84040-53022-C0 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [07.2001 - 08.2004] GXE10,JCE10..LHD W(POWER WINDOW),BLACK,TRIM0#,2# |
84040-53022-C0 |
from US $331.97 |
||
|
84040
|
84040
84040-53022-C0 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [09.2004 -] GXE10,JCE10..LHD W(POWER WINDOW),BLACK,TRIM0#,2# |
84040-53022-C0 |
from US $331.97 |
||
|
84040
|
84040
84040-53060-C0 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [08.2002 -] GXE10,JCE10..LHD BLACK,TRIM0#,2# |
84040-53060-C0 |
US $331.97 |
||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[07.2001 -] GXE10,JCE10 |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-53011 Rheostat, Light Control[07.2001 -] GXE10,JCE10 |
84119-53011 |
US $116.48 |
||
|
84150D
|
84150D
84150-53010 Switch Assy, Headlamp Cleaner[07.2001 -] GXE10,JCE10 |
84150-53010 |
US $57.51 |
||
| replacement | |||||
|
84150D
|
84150D
84150-12020 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [07.2001 -] GXE10,JCE10 |
84150-12020 |
US $55.56 |
||
|
84150E
|
84150E
84999-10320 Bulb, Satellite Switch[07.2001 -] GXE10,JCE10 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84162A
|
84162A
84165-53010
Switch, Rear Fog Lamp
[07.2001 -] GXE10,JCE10 |
84165-53010 |
— | ||
| replacement | |||||
|
84162A
|
84162A
84165-20070 Switch, Rear Fog Lamp[07.2001 -] GXE10,JCE10 |
84165-20070 |
US $67.97 |
||
|
84162B
|
84162B
84999-10780 Bulb, Fog Lamp Switch[07.2001 -] GXE10,JCE10 14V 0.7W |
84999-10780 |
US $6.56 |
||
|
84162D
|
84162D
84998-10640 Cap, Rear Fog Lamp Bulb[07.2001 -] GXE10,JCE10 |
84998-10640 |
from US $3.84 |
||
|
84751
|
84751
84751-53010 Switch, Seat Heater[07.2001 -] GXE10,JCE10 |
84751-53010 |
US $64.65 |
||
|
84751B
|
84751B
84999-10310 Bulb, Air Conditioner Control[07.2001 -] GXE10,JCE10 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84751B
|
84751B
84999-10490 Blub, Center Cluster Module Switch[07.2001 -] GXE10,JCE10 14V 0.84W |
84999-10490 |
from US $6.24 |
||
|
84870A
|
84870A
84870-20200 Switch Assy, Outer Mirror[07.2001 -] GXE10,JCE10 |
84870-20200 |
US $101.34 |
||
|
85500
|
85500
85500-53010 Lighter Assy, Cigarette[07.2001 -] GXE10,JCE10 |
85500-53010 |
US $47.90 |
||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[07.2001 -] GXE10,JCE10 |
85500-12240 |
from US $27.83 |
||
|
85500B
|
85500B
90010-01030 Bulb, Key Cylinder Lamp[07.2001 -] GXE10,JCE10 14V1.4W,W(ORANGE CAP) |
90010-01030 |
from US $2.71 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[07.2001 -] GXE10,JCE10 |
85513-12020 |
from US $5.05 |
||
|
85515
|
85515
85515-53010 Stay, Cigarette Lighter Bezel[07.2001 -] GXE10,JCE10 |
85515-53010 |
US $12 |
||
|
85520
|
85520
85520-53010 Knob And Element Assy, Cigarette Lighter[07.2001 -] GXE10,JCE10 |
85520-53010 |
US $32.61 |
||
| replacement | |||||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[07.2001 -] GXE10,JCE10 |
85520-28010 |
from US $17.90 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
