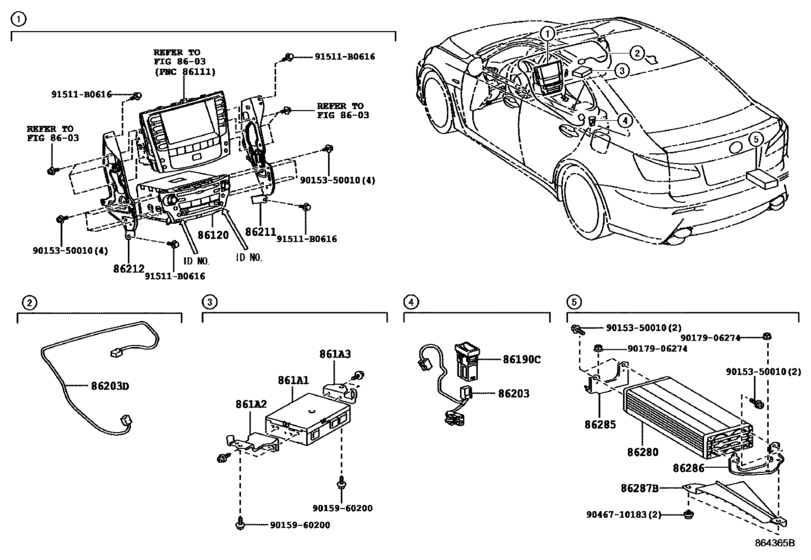

Radio Receiver & Amplifier & Condenser ([08.2010 - 08.2012] (1008-1208)) Diagram Toyota LEXUS IS
- Year
- 2010 - 2014
- Sales region
- General
- Frame
- USE20
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- IS F
- From
- 08.2010
- To
- 08.2014
- Gear Shift Type
- 8FC
- Vehicle Model
- IS F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861A1
|
861A1
861A0-77010 Computer Assy, Multi-Media Interface[08.2010 - 07.2011] USE20 |
861A0-77010 |
US $315.95 |
||
|
861A2
|
861A2
861A2-53010
Bracket, Multi-Media Interface, No.1
[08.2010 - 08.2012] USE20 |
861A2-53010 |
— | ||
|
861A3
|
861A3
861A3-53010
Bracket, Multi-Media Interface, No.2
[08.2010 - 08.2012] USE20 |
861A3-53010 |
— | ||
|
86120
|
86120
86120-53E80
Receiver Assy, Radio
[08.2010 - 08.2012] USE20 PIONEER, ID=P7596 |
86120-53E80 |
— | ||
|
86190C
|
86190C
86190-53040 Adapter Assy, Stereo Jack, No.1STEREO JACK, NO.1 [08.2010 - 08.2014] USE20 |
86190-53040 |
US $113.57 |
||
|
86203
|
86203
86203-53010 Wire, RadioRADIO [08.2010 - 08.2014] USE20 |
86203-53010 |
US $13.40 |
||
|
86203D
|
86203D
86203-53020
Wire, Stereo Component, No.1
[08.2010 - 08.2012] USE20 |
86203-53020 |
— | ||
|
86203D
|
86203D
86203-53210
Wire, Stereo Component, No.1
[08.2012 - 08.2014] USE20 |
86203-53210 |
— | ||
|
86211
|
86211
86211-53030 Bracket, Radio, No.1[08.2010 - 08.2012] USE20 |
86211-53030 |
US $8.74 |
||
|
86211
|
86211
86211-53070 Bracket, Radio, No.1[08.2012 - 08.2014] USE20 |
86211-53070 |
US $8.74 |
||
|
86212
|
86212
86212-53030 Bracket, Radio, No.2[08.2010 - 08.2012] USE20 |
86212-53030 |
US $9.32 |
||
|
86212
|
86212
86212-53070 Bracket, Radio, No.2[08.2012 - 08.2014] USE20 |
86212-53070 |
US $8.74 |
||
|
86280
|
86280
86280-0W750 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2010 - 08.2012] USE20 |
86280-0W750 |
US $1,630.72 |
||
|
86280
|
86280
86280-0WB00 Amplifier Assy, Stereo Component[08.2012 -] USE20 |
86280-0WB00 |
US $1,761.76 |
||
|
86285
|
86285
86285-53070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2010 -] USE20 |
86285-53070 |
US $9.32 |
||
|
86286
|
86286
86286-53080 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2010 -] USE20 |
86286-53080 |
US $10.48 |
||
|
86287B
|
86287B
86287-53010 Cover, Amplifier[08.2010 -] USE20 |
86287-53010 |
US $18.05 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.74 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
from US $1.60 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
