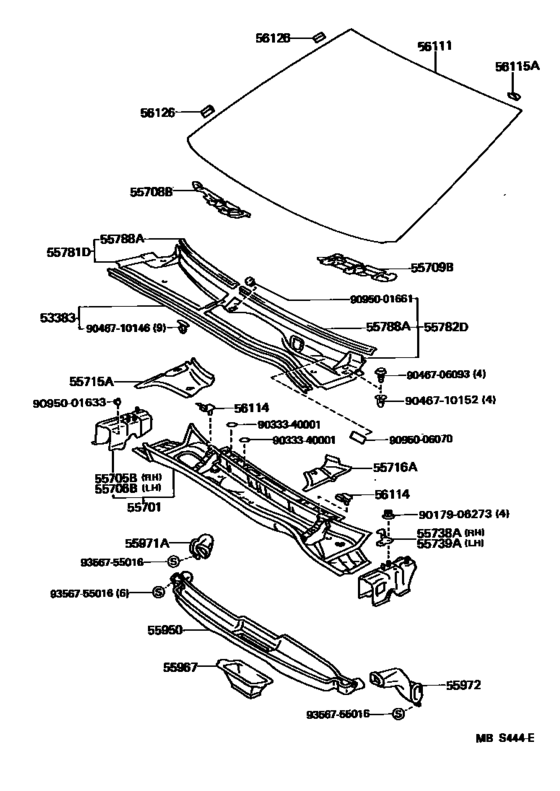

Cowl Panel & Windshield Glass ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-50010
Seal, Hood To Cowl Top
[05.1989 - 10.1994] UCF10 |
53383-50010 |
— | ||
|
55701
|
55701
55700-50010 Panel Sub-Assy, CowlCOWL [05.1989 - 08.1992] UCF10 |
55700-50010 |
US $639.18 |
||
|
55701
|
55701
55700-50011 Panel Sub-Assy, CowlCOWL [08.1992 - 10.1994] UCF10 |
55700-50011 |
US $639.18 |
||
|
55705B
|
55705B
55705-50010 Panel Sub-Assy, Cowl Top Side, Rh[05.1989 - 10.1994] UCF10 |
55705-50010 |
US $74.26 |
||
|
55706B
|
55706B
55706-50010 Panel Sub-Assy, Cowl Top Side, Lh[05.1989 - 10.1994] UCF10 |
55706-50010 |
US $74.26 |
||
|
55708B
|
55708B
55708-50010
Insulator Sub-Assy, Cowl Top Ventilator
[05.1989 - 12.1991] UCF10 |
55708-50010 |
— | ||
| replacement | |||||
|
55708B
|
55708B
55783-50020 Insulator Sub-Assy, Cowl Top Ventilator[05.1989 - 12.1991] UCF10 |
55783-50020 |
US $9.03 |
||
|
55708B
|
55708B
55783-50020 Insulator Sub-Assy, Cowl Top Ventilator[12.1991 - 10.1994] UCF10 |
55783-50020 |
US $9.03 |
||
|
55709B
|
55709B
55709-50010
Insulator Sub-Assy, Cowl Top, No.2
[05.1989 - 12.1991] UCF10 |
55709-50010 |
— | ||
| replacement | |||||
|
55709B
|
55709B
55784-50010 Insulator Sub-Assy, Cowl Top, No.2[05.1989 - 12.1991] UCF10 |
55784-50010 |
US $9.03 |
||
|
55709B
|
55709B
55784-50010 Insulator Sub-Assy, Cowl Top, No.2[12.1991 - 10.1994] UCF10 |
55784-50010 |
US $9.03 |
||
|
55715A
|
55715A
55715-50010 Brace, Cowl Top To Apron, RhCOWL TOP TO APRON, RH [05.1989 - 10.1994] UCF10 |
55715-50010 |
US $52.12 |
||
|
55716A
|
55716A
55716-50010 Brace, Cowl Top To Apron, LhCOWL TOP TO APRON, LH [05.1989 - 10.1994] UCF10 |
55716-50010 |
US $28.10 |
||
|
55738A
|
55738A
55738-50010 Stopper, Hood, Rh[05.1989 - 10.1994] UCF10 |
55738-50010 |
US $9.17 |
||
|
55739A
|
55739A
55739-50010 Stopper, Hood, Lh[05.1989 - 10.1994] UCF10 |
55739-50010 |
US $9.17 |
||
|
55781D
|
55781D
55781-50010 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [05.1989 - 10.1994] UCF10 |
55781-50010 |
US $91.73 |
||
|
55782D
|
55782D
55782-50010 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [05.1989 - 10.1994] UCF10 |
55782-50010 |
US $81.54 |
||
|
55788A
|
55788A
55788-50010 Protector, Cowl Top Ventilator LouverCOWL TOP VENTILATOR LOUVER [05.1989 - 10.1994] UCF10 RH |
55788-50010 |
US $13.40 |
||
|
55788A
|
55788A
55789-50010 Protector, Cowl Top Ventilator LouverCOWL TOP VENTILATOR LOUVER [05.1989 - 10.1994] UCF10 LH |
55789-50010 |
US $14.56 |
||
|
55950
|
55950
55951-50010 Nozzle Assy, DefrosterDEFROSTER [05.1989 - 10.1994] UCF10 |
55951-50010 |
US $117.94 |
||
|
55967
|
55967
55967-50010 Nozzle, Defroster, LowerDEFROSTER, LOWER [05.1989 - 10.1994] UCF10 |
55967-50010 |
US $29.41 |
||
|
55971A
|
55971A
55971-50010 Duct, Side Defroster Nozzle, No.1[05.1989 - 10.1994] UCF10 |
55971-50010 |
US $10.63 |
||
|
55972
|
55972
55972-50010 Duct, Side Defroster Nozzle, No.2[05.1989 - 10.1994] UCF10 |
55972-50010 |
US $10.77 |
||
|
56111
|
56111
56111-50030
Glass, Windshield
[05.1989 - 08.1992] UCF10 *TL,T=4.7,BRONZE |
56111-50030 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-50031
Glass, Windshield
[05.1989 - 08.1992] UCF10 *TL,T=4.7,BRONZE |
56111-50031 |
— | ||
|
56111
|
56111
56111-50031
Glass, Windshield
[08.1992 - 10.1994] UCF10 *TL,T=4.7,BRONZE |
56111-50031 |
— | ||
|
56111
|
56111
56111-50040 Glass, Windshield[05.1989 - 08.1992] UCF10 *TL,T=4.7,BLUE |
56111-50040 |
US $1,674.40 |
||
| replacement | |||||
|
56111
|
56111
56111-50041 Glass, Windshield[05.1989 - 08.1992] UCF10 *TL,T=4.7,BLUE |
56111-50041 |
from US $819.06 |
||
|
56111
|
56111
56111-50041 Glass, Windshield[08.1992 - 10.1994] UCF10 *TL,T=4.7,BLUE |
56111-50041 |
from US $819.06 |
||
|
56111
|
56111
56111-50050
Glass, Windshield
[05.1989 - 08.1992] UCF10 *TL,T=4.7,GRAY |
56111-50050 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-50051 Glass, Windshield[05.1989 - 08.1992] UCF10 *TL,T=4.7,GRAY |
56111-50051 |
US $2,009.28 |
||
|
56111
|
56111
56111-50051 Glass, Windshield[08.1992 - 10.1994] UCF10 *TL,T=4.7,GRAY |
56111-50051 |
US $2,009.28 |
||
|
56114
|
56114
56110-50010 Retainer, Windshield Glass[05.1989 - 10.1994] UCF10 |
56110-50010 |
US $9.17 |
||
|
56115A
|
56115A
56115-50010
Stopper, Windshield Glass, No.1
[05.1989 - 10.1994] UCF10 |
56115-50010 |
— | ||
|
56126
|
56126
56126-50010
Spacer, Windshield Glass, No.2
[05.1989 - 01.1990] UCF10 |
56126-50010 |
— | ||
|
9017906273
|
9017906273
90179-06273 New Genuine Part |
90179-06273 |
US $1.60 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9046706093
|
9046706093
90467-06093 CLIP |
90467-06093 |
US $3.20 |
||
|
9046710146
|
9046710146
90467-10146 Clip(For Hood To Cowl Top Seal) |
90467-10146 |
US $2.40 |
||
|
9046710152
|
9046710152
90467-10152 CLIP |
90467-10152 |
US $1.76 |
||
|
9095001633
|
9095001633
90950-01633 New Genuine Part |
90950-01633 |
US $3.93 |
||
|
9095001661
|
9095001661
90950-01661 New Genuine Part |
90950-01661 |
US $2.33 |
||
|
9095006070
|
9095006070
90950-06070 New Genuine Part |
90950-06070 |
US $2.48 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
