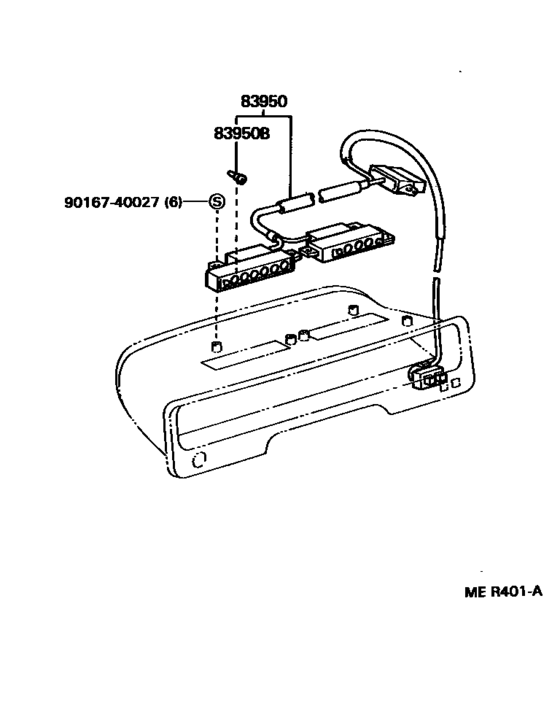

Indicator ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83950
|
83950
83950-50010 Lamp Assy, Telltale[05.1989 - 08.1991] UCF10 |
83950-50010 |
US $173.26 |
||
| replacement | |||||
|
83950
|
83950
83950-50011 Lamp Assy, Telltale[05.1989 - 08.1991] UCF10 |
83950-50011 |
US $171.81 |
||
|
83950
|
83950
83950-50011 Lamp Assy, Telltale[08.1991 - 08.1992] UCF10 |
83950-50011 |
US $171.81 |
||
|
83950
|
83950
83950-50020 Lamp Assy, Telltale[05.1989 - 08.1991] UCF10 W(TRACTION CONTROL) |
83950-50020 |
US $187.82 |
||
| replacement | |||||
|
83950
|
83950
83950-50021 Lamp Assy, Telltale[05.1989 - 08.1991] UCF10 W(TRACTION CONTROL) |
83950-50021 |
US $186.37 |
||
|
83950
|
83950
83950-50021 Lamp Assy, Telltale[08.1991 - 08.1992] UCF10 W(TRACTION CONTROL) |
83950-50021 |
US $186.37 |
||
|
83950
|
83950
83950-50230 Lamp Assy, TelltaleTELLTALE [08.1992 - 10.1994] UCF10..USA |
83950-50230 |
US $171.81 |
||
|
83950
|
83950
83950-50240 Lamp Assy, TelltaleTELLTALE [08.1992 - 10.1994] UCF10..CND; UCF10..USA W(TRACTION CONTROL) |
83950-50240 |
US $171.81 |
||
|
83950B
|
83950B
84999-50270 Bulb, Telltale Lamp[05.1989 - 08.1992] UCF10 14V 60MA |
84999-50270 |
US $4.86 |
||
|
9016740027
|
9016740027
90167-40027 SCREW |
90167-40027 |
from US $0.86 |
||
| replacement | |||||
|
9016740027
|
9016740027
90167-40021 SCREW |
90167-40021 |
from US $0.82 |
||
