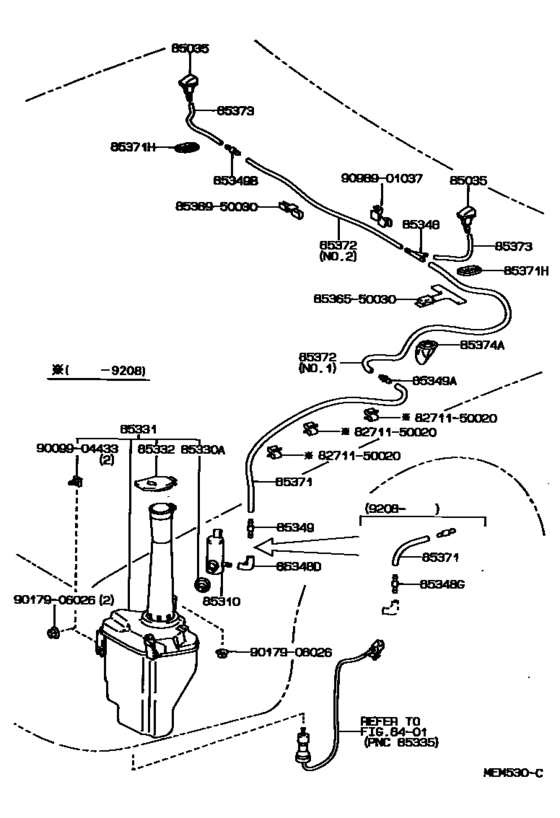

Windshield Washer ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85341-50010-01
Nozzle Sub-Assy, Washer
[05.1989 - 10.1994] UCF10 BLACK,202 |
85341-50010-01 |
— | ||
|
85035
|
85035
85341-50010-02
Nozzle Sub-Assy, Washer
[05.1989 - 08.1992] UCF10 DEEP RED MICA,3H8 |
85341-50010-02 |
— | ||
|
85035
|
85035
85341-50010-03
Nozzle Sub-Assy, Washer
[05.1989 - 08.1992] UCF10 BLUISH GRAY MICA M,172 |
85341-50010-03 |
— | ||
|
85035
|
85035
85341-50010-05
Nozzle Sub-Assy, Washer
[05.1989 - 10.1994] UCF10 BEIGE METALLIC,4K9 |
85341-50010-05 |
— | ||
|
85035
|
85035
85341-50010-06
Nozzle Sub-Assy, Washer
[05.1989 - 08.1992] UCF10 DARK BROWN MICA,4K8 |
85341-50010-06 |
— | ||
|
85035
|
85035
85341-50010-07
Nozzle Sub-Assy, Washer
[05.1989 - 10.1994] UCF10 DARK GREEN M.I.O.,6K4 |
85341-50010-07 |
— | ||
|
85035
|
85035
85341-50010-08
Nozzle Sub-Assy, Washer
[05.1989 - 10.1994] UCF10 WHITE PEARL MICA,051 |
85341-50010-08 |
— | ||
|
85035
|
85035
85341-50010-12
Nozzle Sub-Assy, Washer
[05.1989 - 08.1992] UCF10 GRAYISH ROSE MICA M,3H9 |
85341-50010-12 |
— | ||
|
85035
|
85035
85341-50010-13
Nozzle Sub-Assy, Washer
[05.1989 - 08.1993] UCF10 SUPER SILVER 3 M,176 |
85341-50010-13 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-50010-B0
Nozzle Sub-Assy, Washer
[05.1989 - 08.1993] UCF10 SUPER SILVER 3 M,176 |
85381-50010-B0 |
— | ||
|
85035
|
85035
85341-50010-23
Nozzle Sub-Assy, Washer
[05.1989 - 10.1994] UCF10 GRAY MICA METALLIC,180 |
85341-50010-23 |
— | ||
|
85035
|
85035
85341-50010-A0
Nozzle Sub-Assy, Washer
[03.1994 - 06.1994] UCF10..USA THE 5TH ANNIVERSARY,WARM GRAY PM.,046 |
85341-50010-A0 |
— | ||
|
85035
|
85035
85341-50010-B0
Nozzle Sub-Assy, Washer
[08.1993 - 10.1994] UCF10 SILVER ME.,199 |
85341-50010-B0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-50010-B0
Nozzle Sub-Assy, Washer
[08.1993 - 10.1994] UCF10 SILVER ME.,199 |
85381-50010-B0 |
— | ||
|
85035
|
85035
85341-50010-E0
Nozzle Sub-Assy, Washer
[08.1992 - 06.1993] UCF10 LI.RE.BROWN ME,4K7 |
85341-50010-E0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-50010-E0
Nozzle Sub-Assy, Washer
[08.1992 - 06.1993] UCF10 LI.RE.BROWN ME,4K7 |
85381-50010-E0 |
— | ||
|
85035
|
85035
85341-50010-J0
Nozzle Sub-Assy, Washer
[08.1992 - 06.1993] UCF10 DK.BLUE MCFP,8J5 |
85341-50010-J0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-50010-J0
Nozzle Sub-Assy, Washer
[08.1992 - 06.1993] UCF10 DK.BLUE MCFP,8J5 |
85381-50010-J0 |
— | ||
|
85035
|
85035
85341-50010-K0
Nozzle Sub-Assy, Washer
[08.1992 - 08.1993] UCF10..USA GRAYISH PURPLE M,923 |
85341-50010-K0 |
— | ||
|
85035
|
85035
85381-50010-E0
Nozzle Sub-Assy, Washer
[06.1993 - 10.1994] UCF10 LI.RE.BROWN ME,4K7 |
85381-50010-E0 |
— | ||
|
85035
|
85035
85381-50010-J0
Nozzle Sub-Assy, Washer
[06.1993 - 10.1994] UCF10 DK.BLUE MCFP,8J5 |
85381-50010-J0 |
— | ||
|
85310
|
85310
85310-14080
Motor And Pump Assy, Windshield Washer
[05.1989 - 08.1992] UCF10 |
85310-14080 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-50020 Motor And Pump Assy, Windshield Washer[05.1989 - 08.1992] UCF10 |
85330-50020 |
US $69.54 |
||
|
85310
|
85310
85310-20190
Motor And Pump Assy, Windshield Washer
[08.1992 - 10.1994] UCF10 |
85310-20190 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1989 - 10.1994] UCF10 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1989 - 10.1994] UCF10 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1989 - 10.1994] UCF10 |
90068-32002 |
US $7.46 |
||
|
85331
|
85331
85315-50040
Jar Sub-Assy, Windshield Washer
[08.1992 - 10.1994] UCF10..USA |
85315-50040 |
— | ||
|
85331
|
85331
85331-50010
Jar Sub-Assy, Windshield Washer
[05.1989 - 08.1992] UCF10 |
85331-50010 |
— | ||
| replacement | |||||
|
85331
|
85331
85315-50070
Jar Sub-Assy, Windshield Washer
[05.1989 - 08.1992] UCF10 |
85315-50070 |
— | ||
|
85332
|
85332
85332-50010
Cap, Windshield Washer Jar
[05.1989 - 10.1994] UCF10 |
85332-50010 |
— | ||
|
85348
|
85348
85348-50030
Joint, Windshield Washer Hose, No.1
[05.1989 - 10.1994] UCF10 |
85348-50030 |
— | ||
|
85348D
|
85348D
85355-32110 Joint, Windshield Washer Elbow, No.1[05.1989 - 10.1994] UCF10 |
85355-32110 |
US $1.40 |
||
|
85348G
|
85348G
85334-22480 Joint, Windshield Washer Hose, No.1[08.1992 - 10.1994] UCF10 |
85334-22480 |
US $1.40 |
||
|
85349
|
85349
85334-22480 Joint, Windshield Washer Hose, No.1[05.1989 - 10.1994] UCF10 |
85334-22480 |
US $1.40 |
||
|
85349A
|
85349A
85349-50030
Joint, Windshield Washer Hose, No.3
[05.1989 - 10.1994] UCF10 |
85349-50030 |
— | ||
|
85349B
|
85349B
85349-89122 Valve Sub-Assy, Washer[05.1989 - 10.1994] UCF10 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[08.1992 - 10.1994] UCF10 L=1100 |
90099-33075 |
from US $6.64 |
||
|
85371
|
85371
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[06.1989 - 08.1992] UCF10 L=1160 |
90099-33334 |
— | ||
|
85371
|
85371
90099-33812 Hose, Windshield Washer (From Motor To Joint)[05.1989 - 06.1989] UCF10 L=1570 |
90099-33812 |
US $6.41 |
||
| replacement | |||||
|
85371
|
85371
90099-33712
Hose, Windshield Washer (From Motor To Joint)
[05.1989 - 06.1989] UCF10 L=1570 |
90099-33712 |
— | ||
|
85371
|
85371
90099-33873
Hose, Windshield Washer (From Motor To Joint)
[08.1992 - 05.1993] UCF10 L=1440 |
90099-33873 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33712
Hose, Windshield Washer (From Motor To Joint)
[08.1992 - 05.1993] UCF10 L=1440 |
90099-33712 |
— | ||
|
85371
|
85371
90099-33888
Hose, Windshield Washer (From Motor To Joint)
[05.1993 - 10.1994] UCF10 L=1450 |
90099-33888 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33712
Hose, Windshield Washer (From Motor To Joint)
[05.1993 - 10.1994] UCF10 L=1450 |
90099-33712 |
— | ||
|
85371H
|
85371H
85371-50010 Cover, Washer Nozzle Service Hole[05.1989 - 10.1994] UCF10 |
85371-50010 |
US $1.46 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1989 - 08.1992] UCF10 L=1450,NO.2 |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33088
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1992 - 10.1994] UCF10 *H,L=490,NO.2 |
90099-33088 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1992 - 10.1994] UCF10 *H,L=490,NO.2 |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33813
Hose, Windshield Washer (From Motor To Joint)
[05.1989 - 10.1994] UCF10 *H,L=720,NO.1 |
90099-33813 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33075 Hose, Windshield Washer (From Motor To Joint)[05.1989 - 10.1994] UCF10 *H,L=720,NO.1 |
90099-33075 |
from US $6.64 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1989 - 10.1994] UCF10 L=1450 |
90099-33080 |
US $9.43 |
||
|
85374A
|
85374A
85374-50010 Protector, Washer Hose[05.1989 - 10.1994] UCF10 |
85374-50010 |
US $2.33 |
||
|
8271150020
|
8271150020
82711-50020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-50020 |
US $3.49 |
||
|
8536550030
|
8536550030
85365-50030
Insulator, Windshield Washer Jar
|
85365-50030 |
— | ||
|
8536950030
|
8536950030
85369-50030
Clamp
|
85369-50030 |
— | ||
|
9009904433
|
9009904433
90099-04433
New Genuine Part
|
90099-04433 |
— | ||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9098901037
|
9098901037
90989-01037
New Genuine Part
|
90989-01037 |
— | ||
