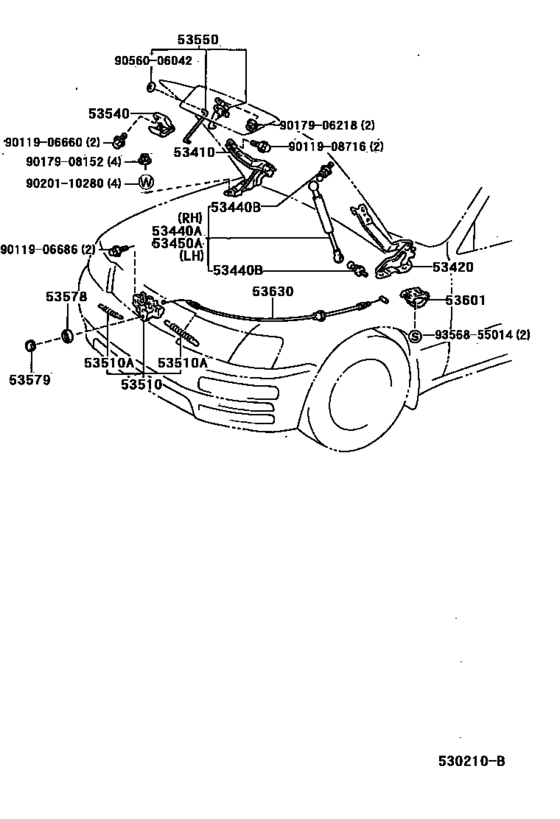

Hood Lock & Hinge ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-50020 Hinge Assy, Hood, Rh[10.1994 -] UCF20 |
53410-50020 |
from US $34.94 |
||
|
53420
|
53420
53420-50020 Hinge Assy, Hood, Lh[10.1994 -] UCF20 |
53420-50020 |
from US $34.94 |
||
|
53440A
|
53440A
53440-59035 Support Assy, Hood, Rh[07.1997 -] UCF20 |
53440-59035 |
US $152.64 |
||
|
53440B
|
53440B
68961-50010
Bolt, Hood Support, No.1
[10.1994 -] UCF20 |
68961-50010 |
— | ||
| replacement | |||||
|
53440B
|
53440B
68961-20051 Bolt, Hood Support, No.1[10.1994 -] UCF20 |
68961-20051 |
from US $5.48 |
||
|
53450A
|
53450A
53440-59035 Support Assy, Hood, Rh[07.1997 -] UCF20 |
53440-59035 |
US $152.64 |
||
|
53510
|
53510
53510-33010 Lock Assy, HoodHOOD [10.1994 -] UCF20 |
53510-33010 |
US $46.74 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[07.1997 -] UCF20 WD=0.9,CW=20.5 |
90506-09050 |
from US $0.87 |
||
|
53510A
|
53510A
90506-18068 Spring, Tension(For Hood Lock)[07.1997 -] UCF20 WD=1.8,CW=18 |
90506-18068 |
US $2.33 |
||
|
53540
|
53540
53540-30010 Lever Assy, Auxiliary Catch Release[10.1994 -] UCF20 |
53540-30010 |
US $30.58 |
||
|
53550
|
53550
53550-50030 Hook Assy, Hood Auxiliary Catch[07.1997 -] UCF20 |
53550-50030 |
from US $48.19 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[10.1994 -] UCF20 |
53578-50010 |
from US $1.27 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[10.1994 -] UCF20 |
53579-50010 |
from US $1.15 |
||
|
53601
|
53601
53601-20060-A1
Lever Sub-Assy, Hood Lock Control
[07.1997 -] UCF20 IVORY,TRIM0# |
53601-20060-A1 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[07.1997 -] UCF20 IVORY,TRIM0# |
53601-20060-C0 |
from US $39.82 |
||
|
53601
|
53601
53601-20060-B1 Lever Sub-Assy, Hood Lock Control[10.1994 -] UCF20 BLUE GRAY,TRIM1# |
53601-20060-B1 |
US $34.80 |
||
| replacement | |||||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[10.1994 -] UCF20 BLUE GRAY,TRIM1# |
53601-20060-C0 |
from US $39.82 |
||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[10.1994 -] UCF20 BLACK,TRIM2# |
53601-20060-C0 |
from US $39.82 |
||
|
53601
|
53601
53601-20060-G0 Lever Sub-Assy, Hood Lock Control[10.1994 -] UCF20 AGATE,TRIM6# |
53601-20060-G0 |
US $34.80 |
||
| replacement | |||||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[10.1994 -] UCF20 AGATE,TRIM6# |
53601-20060-C0 |
from US $39.82 |
||
|
53630
|
53630
53630-50050 Cable Assy, Hood Lock Control[10.1994 -] UCF20 |
53630-50050 |
from US $21.84 |
||
|
9011906660
|
9011906660
90119-06660 BOLT |
90119-06660 |
US $1.92 |
||
|
9011906686
|
9011906686
90119-06686 BOLT WWASHER |
90119-06686 |
US $0.96 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.86 |
||
|
9017908152
|
9017908152
90179-08152 New Genuine Part |
90179-08152 |
US $2.04 |
||
|
9020110280
|
9020110280
90201-10280 New Genuine Part |
90201-10280 |
US $2.04 |
||
|
9056006042
|
9056006042
90560-06042 New Genuine Part |
90560-06042 |
US $1.75 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
