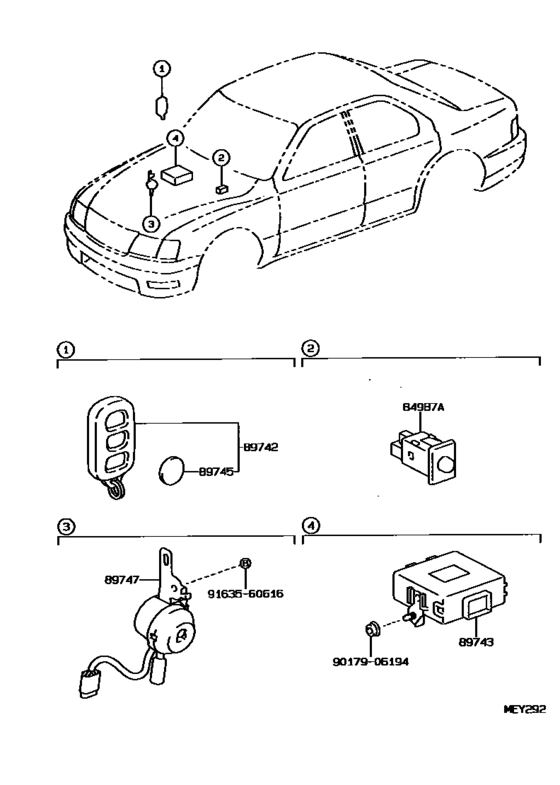

Wireless Door Lock ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- CND
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84987A
|
84987A
84987-50040 Switch, Keyless Entry Cancel[10.1994 -] UCF20 |
84987-50040 |
US $33.49 |
||
|
89742
|
89742
89742-50510 Transmitter, Door ControlDOOR CONTROL [10.1994 - 07.1997] UCF20 |
89742-50510 |
US $320.32 |
||
|
89743
|
89743
89741-50130 Receiver, Door Control[10.1994 - 08.1996] UCF20 |
89741-50130 |
US $834.29 |
||
| replacement | |||||
|
89743
|
89743
89741-50131 Receiver, Door Control[10.1994 - 08.1996] UCF20 |
89741-50131 |
US $837.20 |
||
|
89743
|
89743
89741-50131 Receiver, Door Control[08.1996 - 07.1997] UCF20 |
89741-50131 |
US $837.20 |
||
|
89745
|
89745
89745-50010 Battery, Transmitter[10.1994 - 07.1997] UCF20 |
89745-50010 |
US $12.15 |
||
| replacement | |||||
|
89745
|
89745
89745-71010 Battery, Transmitter[10.1994 - 07.1997] UCF20 |
89745-71010 |
from US $7.04 |
||
|
89747
|
89747
89747-50030 Buzzer, Wireless Door Lock[10.1994 - 07.1997] UCF20 |
89747-50030 |
US $58.24 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
