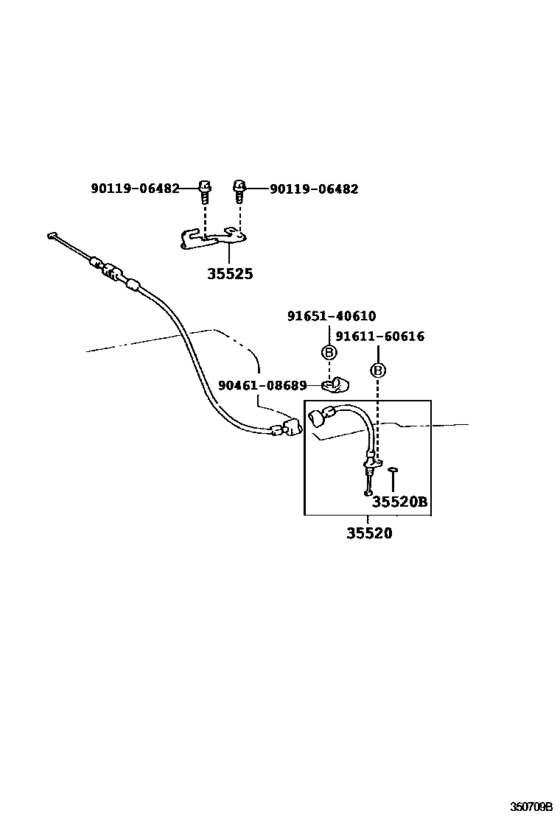

Throttle Link & Valve Lever (Atm) ([10.1994 - 07.1997] A341E,A342E (9410-9707)RHD) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- General
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- ARL
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-50020 Cable Assy, Throttle[10.1994 - 07.1997] UCF20 |
35520-50020 |
US $109.88 |
||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[10.1994 - 07.1997] UCF20 |
90301-09012 |
US $3.52 |
||
|
35525
|
35525
35525-30030 Bracket, Throttle Cable[10.1994 - 07.1997] UCF20..RHD |
35525-30030 |
US $8.01 |
||
|
9011906482
|
9011906482
90119-06482 New Genuine Part |
90119-06482 |
US $1.60 |
||
|
9046108689
|
9046108689
90461-08689 Clamp, Throttle Cable, No.4 |
90461-08689 |
from US $3.55 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
